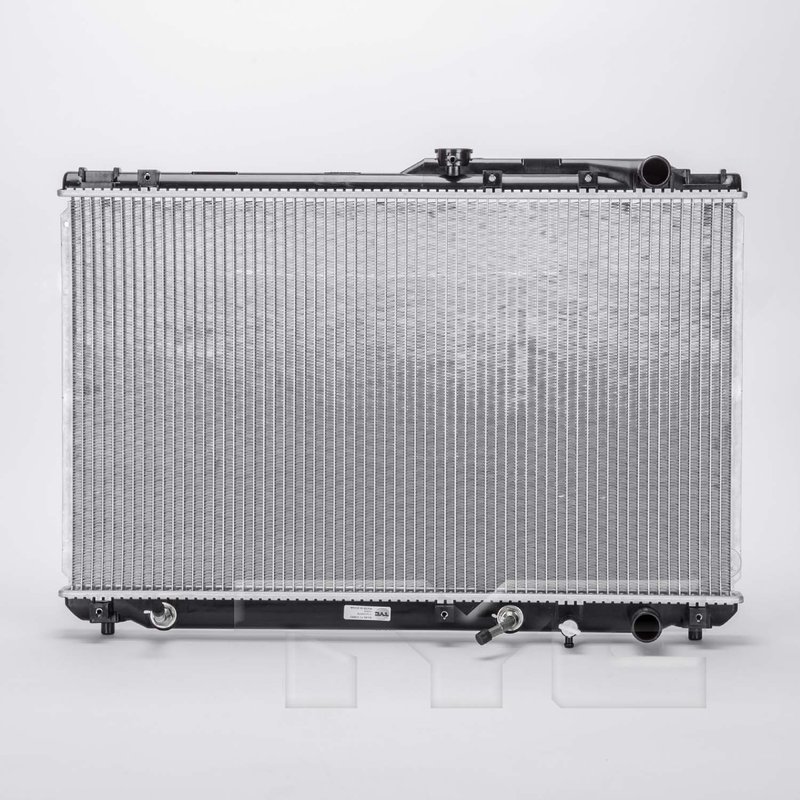

TYC 1303 Radiator

Overview of the TYC Radiator 1303 for Lexus and Toyota

The TYC Radiator part number 1303 is engineered for reliable cooling performance in select Lexus and Toyota vehicles, including the Camry and ES300 models. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from durable aluminum for effective heat dissipation
• Includes a concentric transmission oil cooler for integrated transmission fluid cooling
• Downflow flow configuration optimized for consistent coolant circulation
• Core dimensions: 28.07 inches height, 16.73 inches length, and 1.02 inches thickness
• Hose clamp inlet and outlet connections with diameters of 1.30 and 1.34 inches respectively
• Single-row tube design with 64 tubes and 65 fin rows for efficient airflow
• Compatible with Lexus Camry and Toyota ES300 models

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line emphasizes durable aluminum cores and integrated features such as transmission oil coolers, as seen in part number 1303. The design supports reliable engine and transmission temperature regulation, making it suitable for vehicles requiring precise cooling system performance.

Technical Specifications and Features

This radiator features a 2.01x29.13 inch top and bottom header, providing structural integrity and consistent coolant flow. The downflow configuration ensures coolant moves efficiently through the core, which measures 28.07 inches in height and 16.73 inches in length. The core thickness of 1.02 inches, combined with 64 tubes and 65 fin rows, facilitates effective heat exchange. The fin wave height is 0.35 inches with a pitch of 3.2, optimizing airflow through the radiator. Hose clamp inlet and outlet connections with diameters of 1.30 and 1.34 inches respectively allow for secure attachment to the vehicle’s cooling system. Additionally, the concentric transmission oil cooler with tube fitting inlet and outlet diameters of 0.39 inches supports integrated transmission fluid cooling.

Applications and Problem Resolution

• Replaces faulty or leaking radiators in Lexus Camry and Toyota ES300 vehicles
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission fluid overheating with the included concentric oil cooler
• Eliminates coolant leaks from damaged or corroded radiator cores
• Improves overall engine cooling system performance and reliability

Installation Notes and Tips

Ensure the vehicle is fully cooled before beginning installation to avoid injury. Verify compatibility with Lexus Camry and Toyota ES300 models prior to installation. Use appropriate hose clamps for inlet and outlet connections sized at 1.30 and 1.34 inches respectively. Inspect all hoses and fittings for wear or damage and replace as necessary. Properly bleed the cooling system after installation to remove air pockets and ensure optimal performance.

Quality Assurance and Warranty

The TYC Radiator 1303 is manufactured to meet industry standards for durability and performance. Constructed with a corrosion-resistant aluminum core and designed for integrated transmission oil cooling, this radiator supports long-term vehicle operation. Warranty information is provided by the manufacturer and should be reviewed at the time of purchase for specific coverage details.
