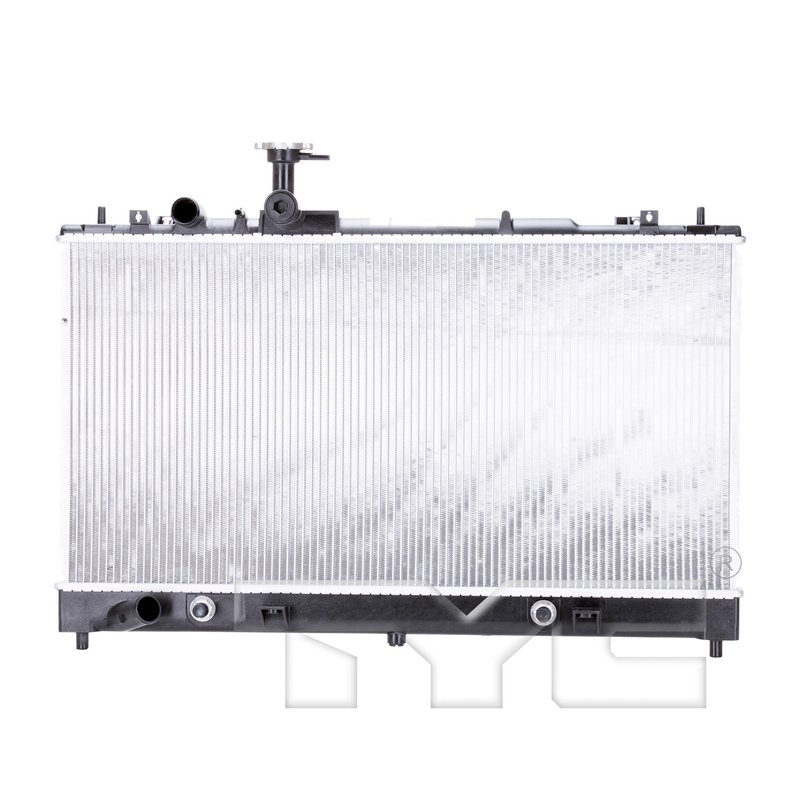

TYC 13053 Radiator
| Brand | TYC 13053 |
|---|---|
| Core Height (in) | 14.76 |
| Core Length (in) | 29.61 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Fin Height | 0.25 |
| Flow Configuration | Downflow |
| Inlet Diameter | 1.23 |
| Inlet Fitting Design | Hose Clamp |
| No. Of Rows | 1 |
| Outlet Diamter | 1.23 |
| Outlet Fitting Design | Hose Clamp |
| Tank Material | Plastic |
| Toc Inlet Diameter | 0.39 |
| Toc Inlet Fitting Design | Hose Clamp |
| Toc Outlet Diameter | 0.39 |
| Toc Outlet Fitting Design | Hose Clamp |
| Transmission Oil Cooler Distance between Fittings | 14.76 |
| Transmission Oil Cooler Type | Plate |
| Tube Width X Height | 0.629*0.078 |
| Product line | TYC Radiator |
| Fits | Mazda · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Plastic tanks. Durable tank design supports reliable cooling performance.
Downflow design. Engineered for steady coolant flow through the radiator.
Cross-references APDI 8012673, CSF 2992 and DENSO 221-3510 for the same application. See all 9.
TYC Radiator for Mazda 6
The TYC Radiator 13053 is a direct-fit cooling replacement for select 2006-2008 Mazda 6 models. Built with an aluminum core and plastic tanks, it is configured as a downflow radiator with integrated plate-style transmission oil cooler connections for the listed application.
Key Features
- Aluminum core with plastic tank construction
- Downflow flow configuration
- Single-row design
- Core dimensions: 29.61 in. length, 14.76 in. height, 0.63 in. thickness
- Inlet and outlet diameters: 1.23 in. with hose clamp fittings
- Integrated plate transmission oil cooler
- TYC Radiator 13053 cross-references APDI 8012673 and Spectra Premium CU13053
Detailed Description
TYC 13053 is engineered for the Mazda 6 cooling system layout used in 2006, 2007, and 2008 model years. The radiator uses an aluminum core for heat transfer efficiency and plastic end tanks for a lightweight OE-style design. Its downflow configuration, 1-row core, and hose clamp inlet and outlet fittings match the listed vehicle application, while the built-in transmission oil cooler adds support for automatic transmission fluid temperature control. This part number, 13053, is also referenced by Mazda L3R1-15-200A for the same application.
Compatible With 2006-2008 Mazda 6, N/A. Use this radiator when replacing a leaking, clogged, or damaged unit on the listed Mazda 6 fitment.
Common Problems This Part Can Address
- Coolant leaks from cracked tanks or damaged seams
- Overheating caused by restricted radiator flow
- Transmission fluid temperature concerns tied to the integrated cooler circuit
- Corrosion or internal buildup in an aging radiator core
- Physical damage from road debris or front-end impact
Installation Notes and Tips
Confirm hose diameter, cooler line routing, and mounting points against the original radiator before installation. Transfer any reusable sensors, brackets, or fittings from the original unit if required by the vehicle setup. After installation, refill the cooling system with the correct coolant, bleed air from the system, and verify there are no leaks at the hose clamp and transmission cooler connections.
Quality Assurance
TYC manufactures replacement cooling components for OE-style fitment and application-specific coverage. This radiator is built to match the listed Mazda 6 fitment and cooling-system configuration.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Mazda | 6 | Automatic | 2.3L | L4 | N/A | TYC Radiator |
| 2007 | Mazda | 6 | Automatic | 2.3L | L4 | N/A | TYC Radiator |
| 2006 | Mazda | 6 | Automatic | 2.3L | L4 | N/A | TYC Radiator |
