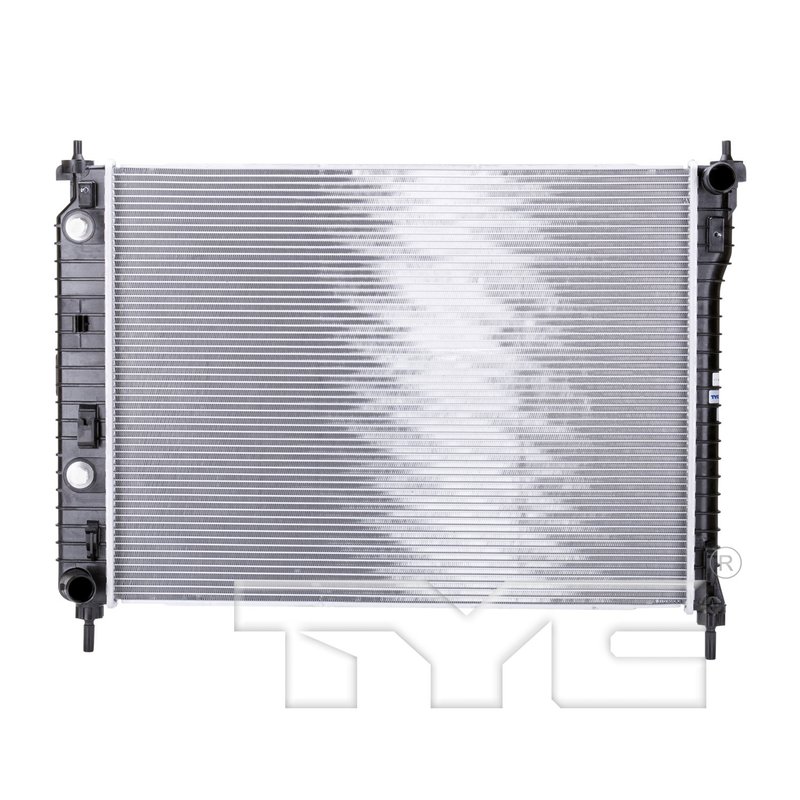

TYC 13057 Radiator

Overview of the TYC Radiator 13057 for Chevrolet and Saturn

The TYC Radiator 13057 is engineered to provide reliable cooling performance for Chevrolet Captiva Sport and Saturn Vue models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow design with 1.02-inch core thickness and 19.85-inch core height
• Compatible with Chevrolet Captiva Sport and Saturn Vue vehicles
• Inlet and outlet connections use hose clamps with 1.34-inch diameter
• Quick connect fittings for transmission oil cooler inlet and outlet
• Single-row tube configuration with 60 tubes and 78 fins per 4 inches

Detailed Features and Specifications

The TYC Radiator 13057 features a robust aluminum core measuring 26.5 inches in length, 19.85 inches in height, and 1.02 inches in thickness. Its crossflow flow configuration optimizes coolant circulation across the core, improving heat exchange efficiency. The radiator includes a plate-type transmission oil cooler with quick connect inlet and outlet fittings sized at 0.37 inches, facilitating secure and leak-resistant connections. Both the inlet and outlet for engine coolant utilize hose clamp connections with a 1.34-inch diameter, ensuring compatibility with factory hoses. The radiator’s fin design includes 78 fins every 4 inches with a fin wave height of 0.25 inches and a pitch of 2.6, contributing to effective airflow and heat dissipation. The single-row tube layout consists of 60 tubes, each measuring 26 by 2 inches, supporting consistent coolant flow.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling solutions with quality materials and precise fitment. Radiators in this line are designed to meet or exceed OEM specifications, providing a balance of durability and performance. The inclusion of integrated transmission oil coolers in select models, such as part number 13057, addresses the cooling needs of both engine and transmission systems in compatible vehicles.

Common Applications and Problem Resolution

• Replaces leaking or damaged radiators in Chevrolet Captiva Sport and Saturn Vue
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission fluid overheating with integrated plate oil cooler
• Fixes coolant leaks from corroded or cracked radiator cores
• Improves engine cooling system reliability and performance

Installation Notes and Tips

Ensure all coolant and transmission fluid is properly drained before removal. Verify hose clamp sizes and quick connect fittings match vehicle specifications. Inspect and replace any worn hoses or clamps during installation. Properly torque hose clamps to prevent leaks. After installation, refill coolant and transmission fluid to manufacturer-recommended levels and check for leaks during operation.

Quality Assurance and Warranty

TYC Radiator 13057 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are designed for long service life. Warranty information should be confirmed with the supplier or manufacturer, as it may vary by region or distributor.
