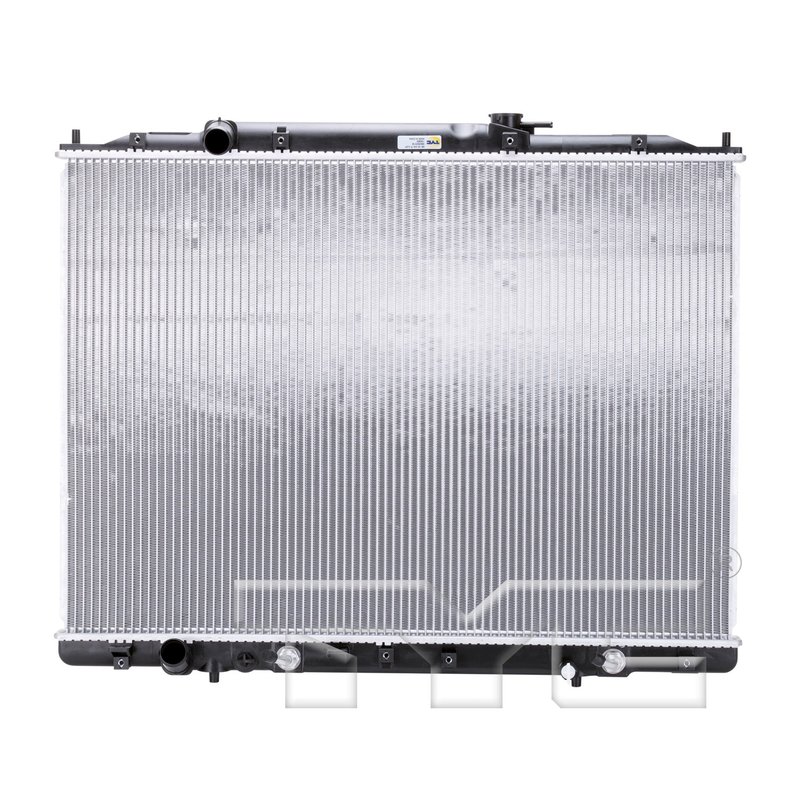

TYC 13065 Radiator
| Brand | TYC 13065 |
|---|---|
| Bottom Header | 2.02x31.42 |
| Core Height (in) | 30.22 |
| Core Length (in) | 21.61 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.30 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.30 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.30 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.02x31.42 |
| Total Fin Row Count | 81 |
| Total Tube Count | 80 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 11 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Honda · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Downflow design. Engineered for straightforward coolant flow through the radiator.
Cross-references APDI 8013065, CSF 3402 and DENSO 221-3254 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Honda Pilot and Ridgeline
The TYC Radiator 13065 is a direct-fit cooling system replacement built with an aluminum core and a downflow design. It includes a transmission oil cooler with plate-style construction, making it a practical choice for Honda Pilot and Honda Ridgeline applications that need dependable engine and transmission temperature control.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included with plate oil cooler design
- Single-row core layout
- Hose clamp inlet and outlet connections
- Core dimensions: 30.22 in. height, 21.61 in. length, 1.02 in. thickness
- Compatible with Honda Pilot and Honda Ridgeline fitments listed below
Product Details
TYC Radiator 13065 is engineered around the listed OE-style dimensions and connection points, including 1.30 in. inlet and outlet diameters and tube-fitting transmission cooler ports. The radiator uses an aluminum core with 80 total tubes and a fin layout designed to support heat dissipation in everyday driving and towing conditions. This part cross-references DENSO 221-3254 and Spectra Premium CU13065 for the same application.
Fits 2009-2015 Honda Pilot, N/A. Fits 2010-2014 Honda Ridgeline, N/A. The TYC Radiator line is positioned as a replacement cooling component for vehicles that require accurate fitment and OE-style connection points, and part number 13065 is listed for these Honda applications.
Common Cooling Issues This Radiator Can Address
- Leaking or corroded radiator tanks and core
- Restricted coolant flow from an aging radiator
- Transmission fluid temperature concerns tied to a failing cooler circuit
- Overheating caused by reduced heat exchange efficiency
- Cracked or damaged hose connection points
Installation Notes and Tips
Verify the inlet and outlet diameters, transmission cooler port style, and overall core dimensions before installation. Flush the cooling system, inspect hoses and clamps, and confirm the radiator mounts and fan shroud alignment match the vehicle before filling with the correct coolant mixture. For Honda Pilot and Honda Ridgeline service, compare the original radiator to TYC Radiator 13065 to confirm the downflow layout and cooler connections.
Quality Assurance
TYC is known for replacement cooling components built to match application-specific fitment requirements. Part number 13065 follows the listed dimensions, materials, and cooler configuration for the confirmed Honda Pilot and Honda Ridgeline applications.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Honda | Pilot | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2014 | Honda | Pilot | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2014 | Honda | Ridgeline | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2013 | Honda | Pilot | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2013 | Honda | Ridgeline | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2012 | Honda | Pilot | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2012 | Honda | Ridgeline | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2011 | Honda | Pilot | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2011 | Honda | Ridgeline | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2010 | Honda | Pilot | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2010 | Honda | Ridgeline | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2009 | Honda | Pilot | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| No rows match your filter. | |||||||
