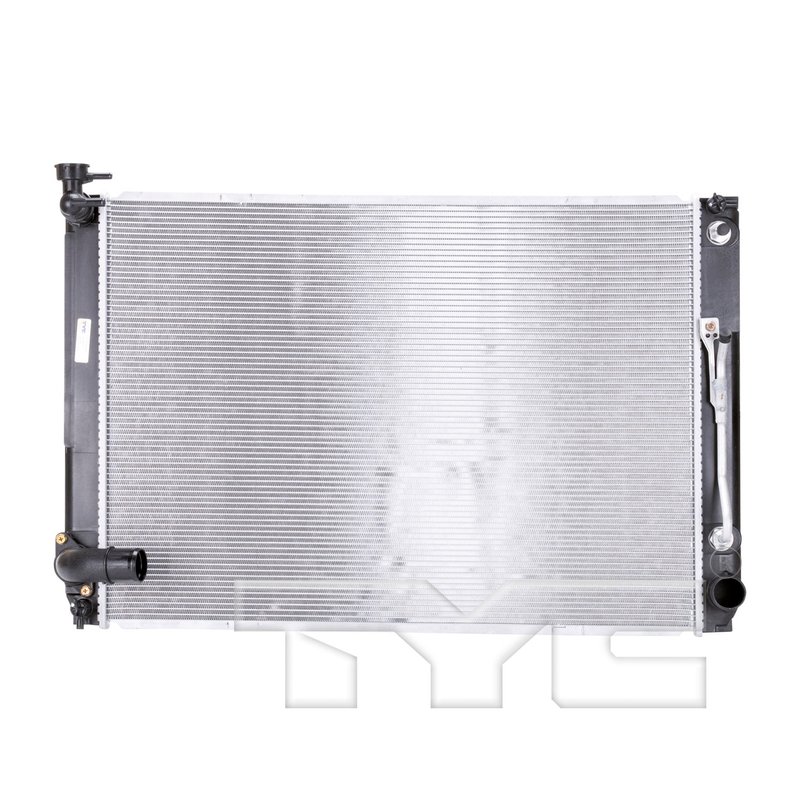

TYC 13076 Radiator
| Brand | TYC 13076 |
|---|---|
| Bottom Header | 1.72x20.02 |
| Core Height (in) | 19.13 |
| Core Length (in) | 26.57 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.87 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.52 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.52 |
| Toc Distance (in) | 13.78 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.72x20.02 |
| Total Fin Row Count | 75 |
| Total Tube Count | 74 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 22x1.5 |
| Product line | TYC Radiator |
| Fits | Toyota · 4 vehicles |
Aluminum core. Helps shed heat efficiently with a lightweight design.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Crossflow design. Promotes steady coolant flow through the radiator.
Cross-references APDI 8013076, CSF 3350 and DENSO 221-3141 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Toyota Sienna Cooling Service
The TYC Radiator 13076 is a direct-fit replacement radiator for select Toyota Sienna models, including 2007-2009 Toyota Sienna and 2010 Toyota Sienna, Primary. Built with an aluminum core and crossflow design, it supports engine cooling while also including a transmission oil cooler for automatic transmission fluid temperature control.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator design
- Transmission oil cooler included with plate oil cooler type
- Hose clamp inlet and outlet connections
- Single-row core layout
- Core dimensions: 19.13 in. height, 26.57 in. length, 0.87 in. thickness
- OE cross-reference: Toyota 16410-0P201
Product Details
TYC Radiator 13076 is engineered around the cooling requirements of the Toyota Sienna platform. The aluminum core, 74 total tubes, and 85 fins per 4 inches are specified to support heat dissipation, while the integrated plate-style transmission oil cooler adds fluid cooling capacity for vehicles equipped with automatic transmission cooling through the radiator. This radiator is a practical replacement choice for 2007-2010 Toyota Sienna applications where the original unit needs service or replacement.
Common Problems This Radiator Can Address
- Engine overheating caused by a leaking or restricted radiator
- Transmission fluid temperature issues related to a failed internal cooler
- Coolant loss from cracked tanks or damaged core sections
- Reduced cooling performance from clogged or corroded radiator passages
- Fitment issues when replacing the original Toyota Sienna radiator
Installation Notes and Tips
Verify inlet and outlet hose diameters, mounting points, and transmission cooler line connections before installation. This unit uses hose clamp inlet and outlet connections with 1.52 in. inlet and outlet diameters, plus tube-fitting transmission cooler ports. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation. Confirm application details for your specific Toyota Sienna before ordering.
Quality Assurance
TYC Radiator 13076 is built to match the listed OE-style fitment for select Toyota Sienna models and is cross-referenced to common aftermarket and OE part numbers for the same application, including Toyota 16410-0P201 and DENSO 221-3141.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2010 | Toyota | Sienna | CE | Mini Cargo Van | — | 3.5L | V6 | Primary | TYC Radiator |
| 2009 | Toyota | Sienna | — | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2008 | Toyota | Sienna | — | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2007 | Toyota | Sienna | — | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
