Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

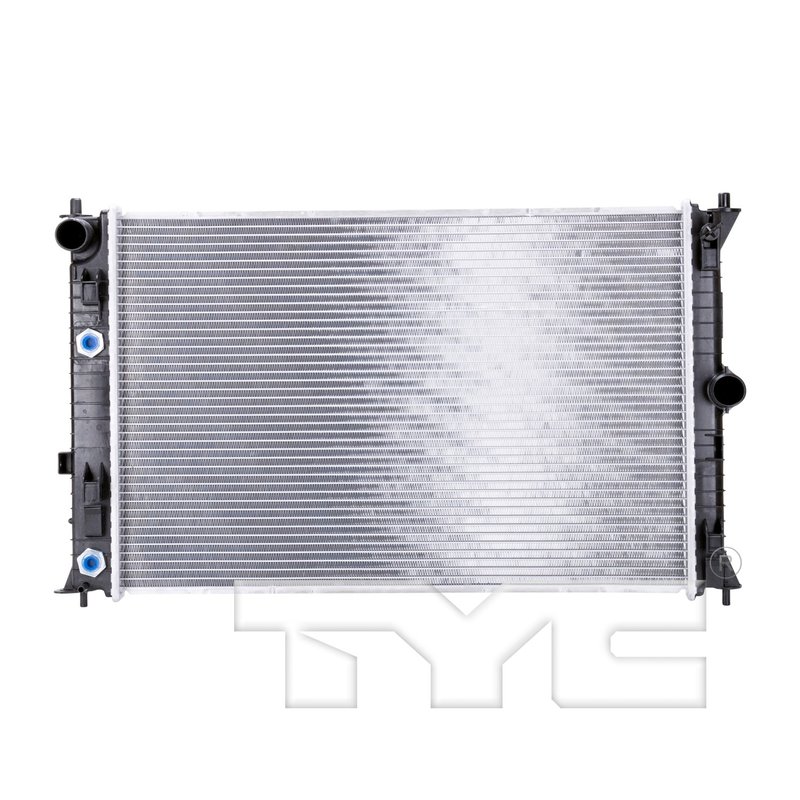

TYC 13088 Radiator
| Brand | TYC 13088 |
|---|---|
| Core Height (in) | 17.6 |
| Core Length (in) | 25.79 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.92 |
| Fin Height | 0.31 |
| Flow Configuration | Crossflow |
| Inlet Diameter | 1.50 |
| Inlet Fitting Design | Hose Clamp |
| No. Of Rows | 1 |
| Outlet Diamter | 1.50 |
| Outlet Fitting Design | Hose Clamp |
| Tank Material | Plastic |
| Toc Inlet Diameter | 5/8-18UNF |
| Toc Inlet Fitting Design | Quick Connect |
| Toc Outlet Diameter | 5/8-18UNF |
| Toc Outlet Fitting Design | Quick Connect |
| Transmission Oil Cooler Distance between Fittings | 10.00 |
| Transmission Oil Cooler Type | Plate |
| Tube Width X Height | 0.923*0.078 |
| Product line | TYC Radiator |
| Fits | Mazda · 2 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Plastic tanks. Durable tank material pairs with the core for dependable cooling.
Crossflow design. Engineered to move coolant through the radiator efficiently.
Cross-references APDI 8013087, APDI 8013089 and CSF 3410 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC 13088 Radiator for Mazda 6
Restore cooling performance with the TYC Radiator 13088, a direct-fit replacement for select 2009-2010 Mazda 6 applications. Built with an aluminum core and plastic tanks, this radiator is configured for crossflow operation and includes an integrated plate-style transmission oil cooler for automatic-transmission cooling support.
Key Features
- Aluminum core with plastic tank construction
- Crossflow flow configuration for efficient coolant routing
- Single-row core design
- Core dimensions: 17.6 in. height, 25.79 in. length, 0.92 in. thickness
- 1.50 in. inlet and 1.50 in. outlet with hose clamp fittings
- Integrated plate-type transmission oil cooler
- Transmission cooler quick-connect fittings: 5/8-18UNF inlet and outlet
- Transmission oil cooler fitting spacing: 10.00
Detailed Description
TYC Radiator 13088 is engineered for the 2009-2010 Mazda 6 and matches the OE-style layout for straightforward cooling system replacement. The aluminum core supports heat transfer, while the plastic tank design follows the common OE radiator construction used in many late-model passenger vehicles. With a crossflow configuration, 1.50-inch hose clamp inlet and outlet connections, and an integrated plate transmission oil cooler, this radiator is built to serve both engine cooling and automatic transmission fluid cooling in the same assembly. This part cross-references Spectra Premium CU13088 and DENSO 221-3513 for the same application.
What It Helps Address
- Coolant leaks from a damaged or aging radiator
- Overheating caused by restricted or inefficient heat exchange
- Transmission fluid temperature control concerns tied to the radiator cooler circuit
- Cracked plastic tanks or weakened hose connection points
- Reduced cooling performance in a 2009-2010 Mazda 6
Installation Notes and Tips
Verify inlet and outlet diameters, hose clamp connections, and transmission cooler quick-connect fittings before installation. Confirm the vehicle uses the same crossflow layout and cooler configuration as the original radiator. Flush the cooling system and inspect hoses, clamps, and transmission cooler lines for wear before installing the new unit. Fits 2009-2010 Mazda 6, N/A.
Quality Assurance
TYC supplies replacement cooling components built to match OE-style fitment and function for specific vehicle applications. Part number 13088 is listed for confirmed Mazda 6 fitment and is supported by interchange references including Spectra Premium CU13088 and DENSO 221-3513.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Mazda | 6 | 2.5L | L4 | N/A | TYC Radiator |
| 2009 | Mazda | 6 | 2.5L | L4 | N/A | TYC Radiator |
