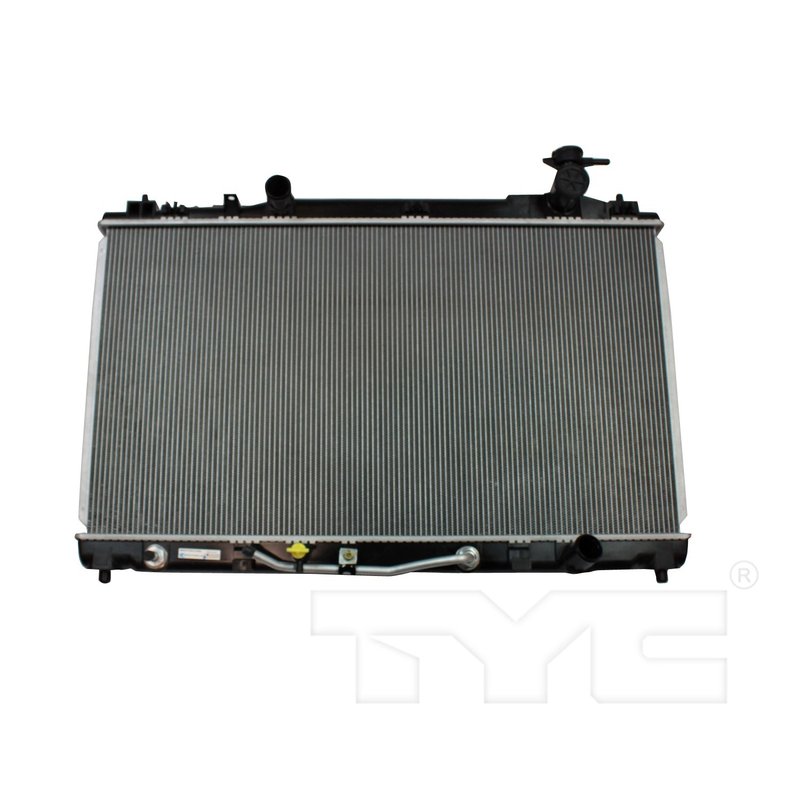

TYC 13090 Radiator

TYC Radiator for Toyota Venza

This TYC Radiator, part number 13090, is a direct-fit cooling replacement for the 2009-2016 Toyota Venza. Built with an aluminum core and integrated transmission oil cooler, it supports engine cooling and automatic transmission fluid temperature control in one assembly.

Key Features

• Aluminum core construction for efficient heat transfer
• Downflow design for OE-style cooling layout
• Transmission oil cooler included with plate oil cooler design
• Hose clamp inlet and outlet connections
• Single-row core with 28.6 in core height, 15.75 in core length, and 1.02 in core thickness
• OE cross-reference: Toyota 16400-0V010
• Cross-references APDI 8013090 and Spectra Premium CU13090 for the same application

Product Details

TYC Radiator 13090 is built for the Toyota Venza cooling system and follows the original downflow configuration used on 2009-2016 Toyota Venza models. The aluminum core, 111 total tubes, and 112 total fin rows are specified to support consistent coolant flow and heat dissipation. The integrated transmission oil cooler uses tube-fitting connections and is included in the radiator assembly, making this a practical replacement for vehicles with automatic transmission cooling routed through the radiator.

For buyers searching for a 2009-2016 Toyota Venza radiator replacement, TYC 13090 provides the key OE-style dimensions and connection types needed for a proper fit. It is also a relevant choice when replacing a leaking radiator, a damaged transmission cooler section, or a unit with restricted coolant flow.

Common Problems This Part Can Address

• Coolant leaks from a cracked or corroded radiator tank or core
• Overheating caused by reduced coolant circulation
• Transmission fluid temperature issues related to a failing built-in cooler
• Physical damage to the radiator from road debris or impact
• Cooling performance loss from clogged or aging internal passages

Installation Notes and Tips

Confirm inlet and outlet hose diameter, cooler line routing, and mounting dimensions before installation. Flush the cooling system and inspect hoses, clamps, and transmission cooler lines for wear before installing the new radiator. After installation, refill with the correct coolant, bleed trapped air from the system, and verify there are no leaks at the hose clamp and tube-fitting connections.

Quality Assurance

TYC manufactures replacement cooling components to OE-style specifications for direct-fit service applications. Part number 13090 is listed for the 2009-2016 Toyota Venza and is supported by the provided interchange references for application matching.
