Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

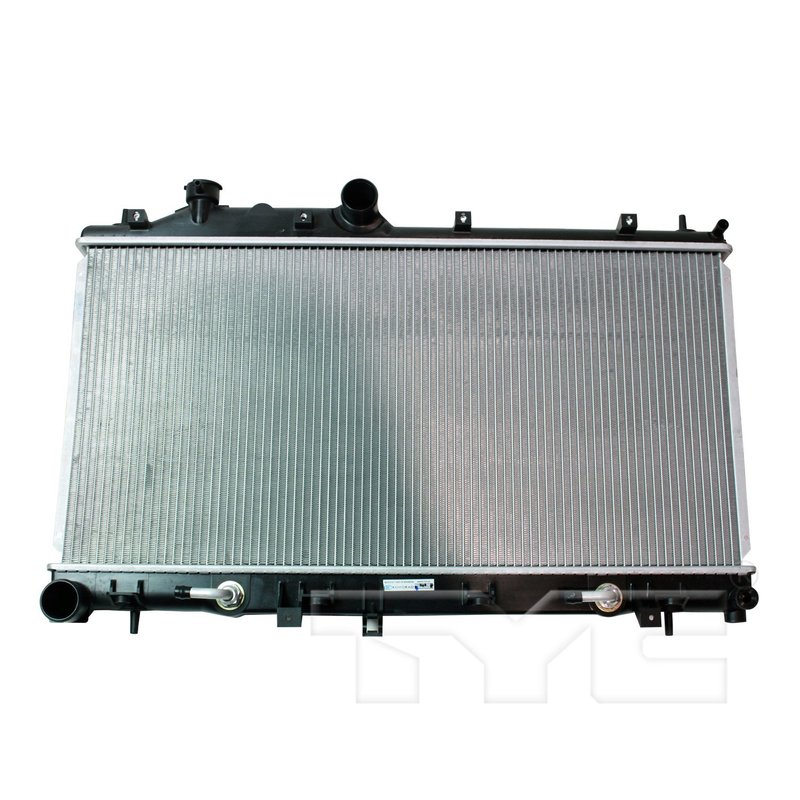

TYC 13095 Radiator
| Brand | TYC 13095 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.98x28.2 |
| Core Height (in) | 27.04 |
| Core Length (in) | 13.39 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.57 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.57 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.98x28.2 |
| Total Fin Row Count | 86 |
| Total Tube Count | 85 |
| Tube Count (every 4") | 12 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Subaru · 10 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Supports steady coolant flow through the radiator.
Cross-references APDI 8013095, DENSO 221-9237 and Partslink SU3010654 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Subaru Forester
The TYC Radiator 13095 is a direct-fit cooling replacement for 2009-2013 Subaru Forester models. Built with an aluminum core and a downflow design, it includes an integrated transmission oil cooler with plate-style construction for vehicles equipped with automatic transmission cooling needs.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Integrated transmission oil cooler included
- Plate oil cooler type
- Single-row core layout
- Hose clamp inlet and outlet connections
- Fits 2009-2013 Subaru Forester, N/A
Product Details
TYC Radiator 13095 is engineered around the listed core dimensions and connection points for a precise replacement in the Subaru Forester application. The radiator measures 27.04 inches in core height, 13.39 inches in core length, and 1.02 inches in core thickness, with 1.57-inch inlet and outlet diameters. It also features a transmission oil cooler with 0.39-inch tube-fitting inlet and outlet connections, making it a practical choice for vehicles that rely on radiator-based transmission fluid cooling. This part cross-references DENSO 221-9237 for the same application.
Common Replacement Reasons
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted coolant flow
- Transmission fluid temperature concerns tied to a failing cooler circuit
- Cracked hose connections or worn tank seams
- Poor heat dissipation from an aging radiator core
Installation Notes
Verify hose clamp connection sizes, cooler line routing, and overall radiator dimensions before installation. Drain the cooling system, transfer any required fittings or sensors from the original unit if applicable, and refill with the correct coolant mixture after installation. Bleed air from the system and confirm there are no leaks at the inlet, outlet, or transmission cooler connections.
Quality Assurance
TYC Radiator 13095 is built to match the listed OE-style fitment for 2009-2013 Subaru Forester applications and is supported by TYC’s radiator product line specifications. Confirm vehicle year and cooling configuration against the part details before ordering.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2013 | Subaru | Forester | XT Touring | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2013 | Subaru | Forester | XT Premium | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2012 | Subaru | Forester | XT Premium | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2012 | Subaru | Forester | XT Touring | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2011 | Subaru | Forester | XT Touring | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2011 | Subaru | Forester | XT Premium | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2010 | Subaru | Forester | XT Limited | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2010 | Subaru | Forester | XT Premium | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2009 | Subaru | Forester | XT | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
| 2009 | Subaru | Forester | XT Limited | Sport Utility | 2.5L | H4 | N/A | TYC Radiator |
