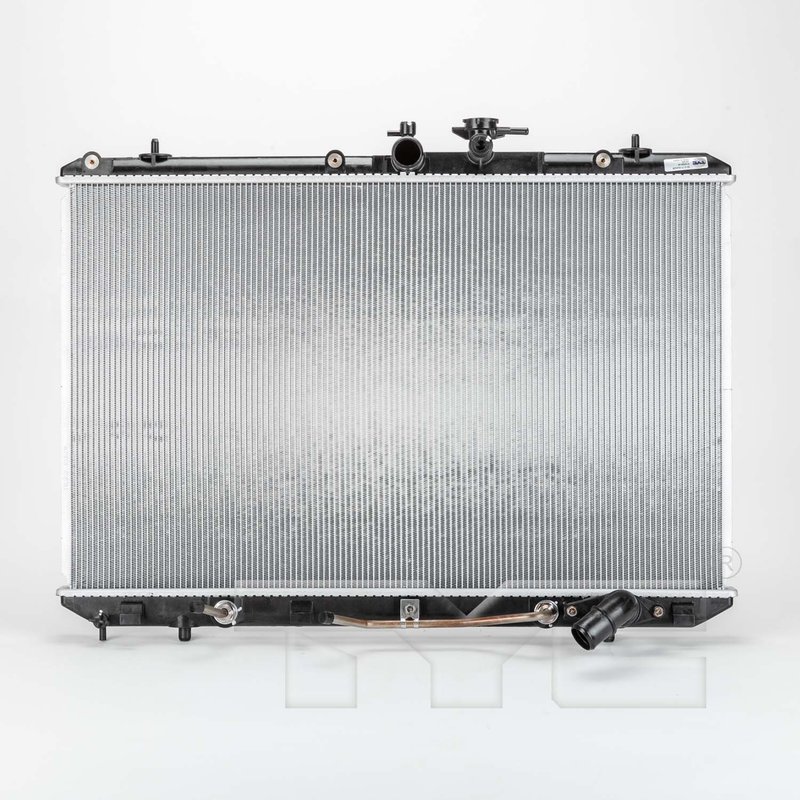

TYC 13122 Radiator
| Brand | TYC 13122 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.02x31.37 |
| Core Height (in) | 30.14 |
| Core Length (in) | 18.7 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.36 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.02x31.37 |
| Total Fin Row Count | 118 |
| Total Tube Count | 117 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 16x1.5 |
| Product line | TYC Radiator |
| Fits | Toyota · 2 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Supports steady coolant movement through the radiator.
Cross-references APDI 8013123, CSF 3504 and DENSO 221-3148 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator 13122 for Toyota Highlander
The TYC Radiator 13122 is a direct-fit cooling replacement for select 2009-2010 Toyota Highlander models without the tow package. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler to support integrated engine and transmission cooling in one assembly.
For Toyota Highlander owners replacing a leaking, clogged, or damaged radiator, this TYC Radiator 13122 provides the key dimensions and connection types needed for a proper fit. It is also referenced by OE and aftermarket numbers for the same application, including Toyota 16041-36050 and Spectra Premium CU13122.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Single-row core layout
- Hose clamp inlet and outlet connections
- Fits 2009-2010 Toyota Highlander, N/A, without tow package
- TYC Radiator 13122 cross-references Toyota 16041-36050 and Spectra Premium CU13122
Detailed Description
This radiator is engineered around the listed core dimensions, header sizes, and tube layout to match the original cooling system configuration on compatible Toyota Highlander vehicles. The aluminum core measures 30.14 inches high, 18.7 inches long, and 0.63 inches thick, with a downflow flow configuration and hose clamp inlet and outlet connections. The integrated transmission oil cooler uses tube-fitting connections and is built into the radiator assembly for vehicles equipped with that setup.
TYC Radiator 13122 is a practical replacement choice when the original radiator shows signs of internal corrosion, coolant seepage, or transmission cooler contamination. It is compatible with 2009-2010 Toyota Highlander, N/A, and the fitment notes specify use without the tow package. The part number 13122 is also useful when searching for OE-style radiator replacement options for this application.
Common Problems This Radiator Can Address
- Coolant leaks from a cracked or corroded radiator tank or core
- Overheating caused by restricted coolant flow or reduced heat dissipation
- Transmission temperature concerns related to a failing integrated cooler
- Physical damage to the radiator from road debris or impact
- Cooling system contamination from internal radiator deterioration
Installation Notes and Tips
Verify vehicle fitment by matching the model year and the note for without tow package before installation. Confirm inlet and outlet hose sizes, transmission cooler line style, and overall radiator dimensions against the original unit. Replace aged hoses, clamps, and coolant as needed, and inspect the cooling fan, thermostat, and pressure cap during service to help restore proper system operation.
Quality Assurance
TYC Radiator 13122 is built as a replacement radiator for the specified Toyota Highlander application and is supported by the brand’s OE-style cooling component lineup. Use the listed dimensions, connection types, and interchange references to confirm the correct part before installation.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Toyota | Highlander | Automatic | 2.7L | L4 | N/A | w/o Tow Pkg; TYC Radiator |
| 2009 | Toyota | Highlander | Automatic | 2.7L | L4 | N/A | w/o Tow Pkg; TYC Radiator |
