TYC 13124 Drive Motor Inverter Cooler

Overview of TYC Drive Motor Inverter Cooler for Toyota Prius

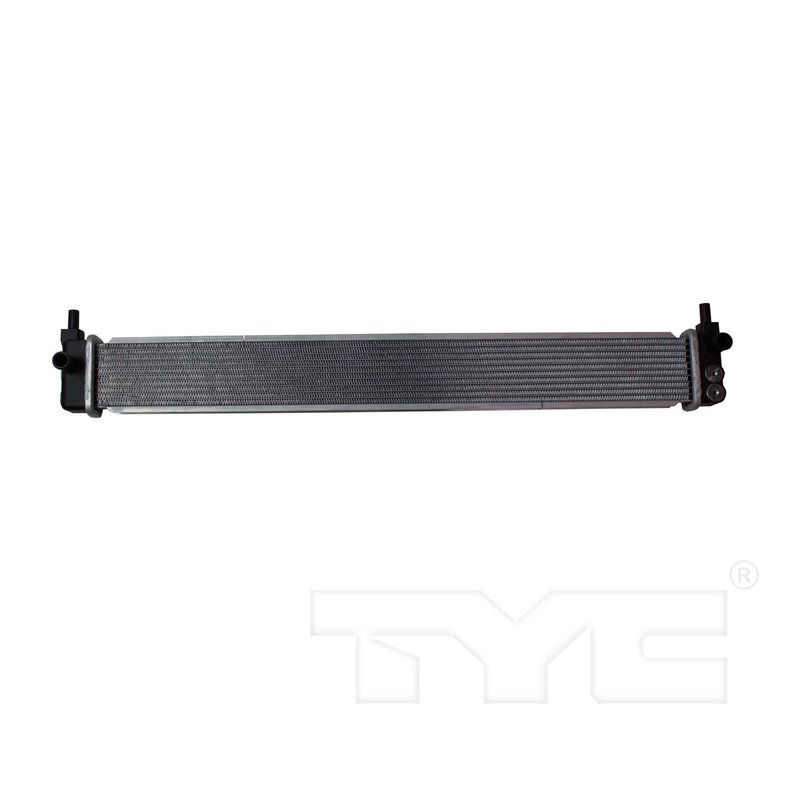

The TYC Drive Motor Inverter Cooler 13124 is engineered to maintain optimal operating temperatures for the inverter system in Toyota Prius models. Designed with durable aluminum core material, this cooler supports efficient heat dissipation to help preserve inverter performance and longevity.

• Core material constructed from lightweight aluminum for effective heat transfer
• Core dimensions: 23.62 inches length, 2.50 inches height, and 0.87 inches thickness
• Crossflow design with 78 fins per 4 inches and a total of 10 fin rows for enhanced cooling
• Single-row tube configuration with 9 total tubes and 16 tubes per 4 inches
• Inlet and outlet connections use 0.67 inch hose clamps for secure fitment
• Top and bottom headers measure 1.71 by 3.24 inches, ensuring structural stability

Technical Details and Specifications

This TYC Drive Motor Inverter Cooler features a crossflow flow configuration that optimizes coolant movement through the core, improving heat exchange efficiency. The aluminum core is designed with a fin wave height of 0.20 inches and a fin wave pitch of 2.6, contributing to consistent airflow and thermal management. The cooler includes a single row of tubes, each measuring 22 by 1.5 inches, arranged to maximize surface area contact with the coolant. Both inlet and outlet connections are designed for hose clamp fittings with a diameter of 0.67 inches, facilitating straightforward integration with existing cooling lines.

Compatible Vehicles and Applications

This inverter cooler is specifically compatible with Toyota Prius models, providing a direct replacement solution for maintaining inverter temperature control. It is ideal for addressing issues related to inverter overheating and cooling inefficiencies in hybrid vehicle systems.

• Helps prevent inverter overheating during extended driving or high load conditions
• Supports stable inverter operation by maintaining consistent coolant flow
• Reduces risk of inverter component damage due to thermal stress
• Assists in maintaining overall hybrid system efficiency

Installation Notes and Tips

Installation requires proper handling of the hose clamp inlet and outlet connections to ensure leak-free coolant flow. Verify that the cooler’s dimensions and connection types match the vehicle’s existing setup. It is recommended to inspect hoses and clamps for wear during installation and replace if necessary to maintain system integrity.

Quality Assurance and Warranty

TYC manufactures this Drive Motor Inverter Cooler to meet OEM standards for fit, form, and function. The aluminum core construction provides corrosion resistance and durability under typical operating conditions. While specific warranty details are not provided, TYC products generally come with a limited warranty covering defects in materials and workmanship.
