TYC 13136 Radiator

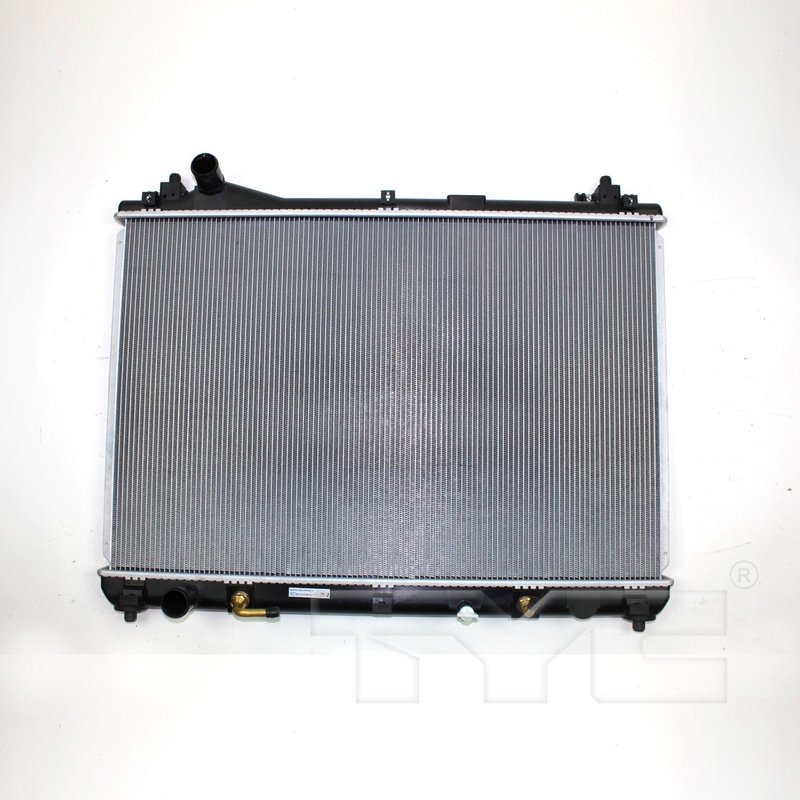

Overview of the TYC Radiator for Suzuki Grand Vitara

The TYC Radiator part number 13136 is designed specifically for the Suzuki Grand Vitara, providing reliable cooling performance. This radiator features an aluminum core and includes a concentric transmission oil cooler to support efficient heat dissipation.

• Core material: Aluminum for effective heat transfer
• Includes concentric transmission oil cooler
• Core dimensions: 27.07 inches height, 17.72 inches length, 0.63 inches thickness
• Downflow configuration with 1 row of tubes
• Inlet and outlet hose clamp connections, 1.36 inches diameter
• Fin count: 78 fins every 4 inches, total 106 fin rows
• Tube count: 105 total tubes, 16 tubes every 4 inches
• Compatible with Suzuki Grand Vitara models

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering durable and precise cooling components tailored to specific vehicle applications. This radiator, part number 13136, exemplifies the line’s commitment to quality with its aluminum core construction and integrated transmission oil cooler, ensuring compatibility and performance for the Suzuki Grand Vitara.

Technical Description and Features

This radiator features a downflow design with a single row of tubes measuring 16 by 1.5 inches, optimized for efficient coolant flow. The aluminum core enhances heat dissipation, supported by 78 fins every 4 inches and a total of 106 fin rows to maximize surface area. The concentric transmission oil cooler is integrated with tube fittings for inlet and outlet, each 0.39 inches in diameter, facilitating effective transmission fluid cooling. Both the inlet and outlet connections use hose clamps with a diameter of 1.36 inches, ensuring secure attachment to the vehicle’s cooling system. The top and bottom headers measure 2.02 by 28.32 inches, providing structural integrity and fitment accuracy.

Common Applications and Problem Resolution

• Replaces faulty or leaking radiators in Suzuki Grand Vitara vehicles
• Addresses overheating issues caused by inefficient cooling
• Restores proper transmission fluid temperature control with built-in oil cooler
• Solves coolant leaks due to damaged or corroded radiator cores
• Improves engine cooling system reliability and performance

Installation Notes and Tips

• Ensure compatibility with Suzuki Grand Vitara before installation
• Use appropriate hose clamps for inlet and outlet connections (1.36 inches diameter)
• Check transmission oil cooler fittings for secure tube fitting connections
• Drain coolant and transmission fluid as necessary before removal
• Inspect and replace any worn hoses or clamps during installation

Quality Assurance and Warranty

TYC Radiator part number 13136 is manufactured to meet OEM specifications for fit, form, and function. The aluminum core construction and integrated transmission oil cooler are tested for durability and performance. While specific warranty details may vary, TYC products typically include a limited warranty against defects in materials and workmanship to ensure customer confidence.
