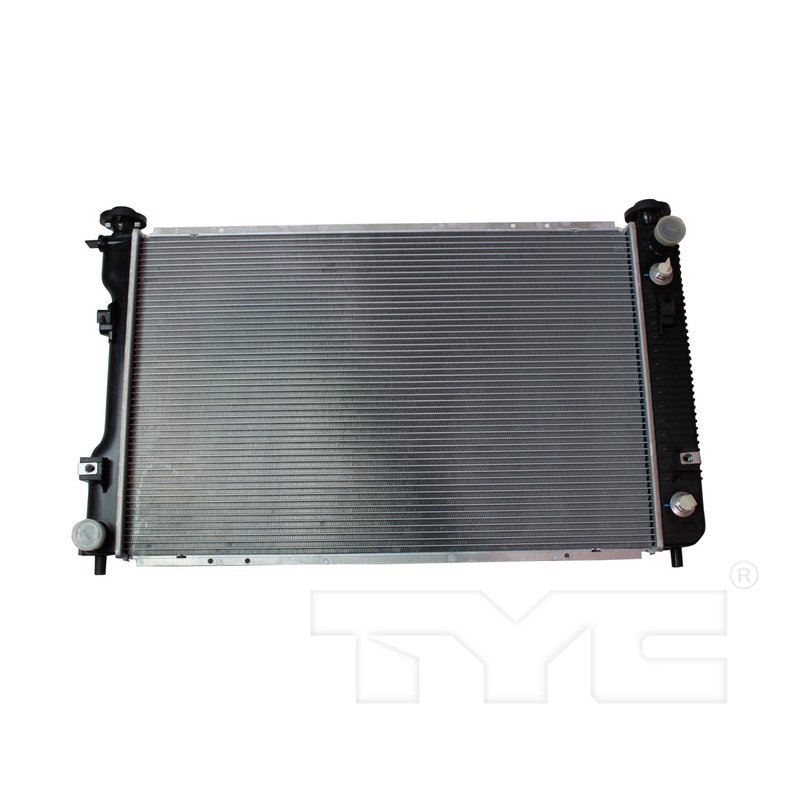

TYC 13139 Radiator

Overview of TYC Radiator 13139 for Chevrolet Equinox and GMC Terrain

The TYC Radiator 13139 is engineered to provide reliable cooling performance for Chevrolet Equinox and GMC Terrain models. Designed with a durable aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow design with a single row core configuration
• Core dimensions: 16.59 inches height, 23.62 inches length, and 1.02 inches thickness
• Hose clamp inlet and outlet connections with diameters of 1.32 and 1.34 inches respectively
• Quick connect fittings for transmission oil cooler inlet and outlet (0.37 inch diameter)
• High fin count with 92 fins every 4 inches and 51 total fin rows for improved airflow
• Compatible with Chevrolet Equinox and GMC Terrain vehicles

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. Radiators in this line, including part number 13139, are designed with precision to ensure proper fitment and reliable performance in specific vehicle applications such as the Chevrolet Equinox and GMC Terrain. The inclusion of a plate oil cooler in this model supports integrated transmission cooling, which is essential for maintaining transmission efficiency and longevity.

Technical Specifications and Features

This radiator features a crossflow flow configuration that optimizes coolant circulation through the core. The aluminum core measures 16.59 inches in height, 23.62 inches in length, and 1.02 inches in thickness, providing a balance of cooling surface area and compact design. The core includes 50 tubes and a total of 51 fin rows, with 92 fins every 4 inches, enhancing heat exchange efficiency. Both the top and bottom headers measure 2.54 by 17.22 inches, supporting structural integrity and fluid distribution.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Chevrolet Equinox and GMC Terrain models
• Addresses overheating issues caused by inefficient cooling systems
• Restores proper transmission fluid temperature control with integrated oil cooler
• Solves coolant flow restrictions due to damaged or clogged radiator cores
• Improves engine cooling performance for vehicles experiencing heat-related drivability problems

Installation Notes and Tips

Installation requires proper handling of hose clamp connections for both inlet and outlet ports, sized at 1.32 and 1.34 inches respectively. The transmission oil cooler uses quick connect fittings (0.37 inch diameter) that should be securely attached to prevent leaks. Ensure the radiator is mounted with the correct orientation to maintain the crossflow configuration. It is recommended to inspect and replace any worn hoses or clamps during installation to ensure a reliable seal.

Quality Assurance and Warranty

TYC Radiator 13139 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated plate oil cooler are designed for long service life under normal operating conditions. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer upon purchase.
