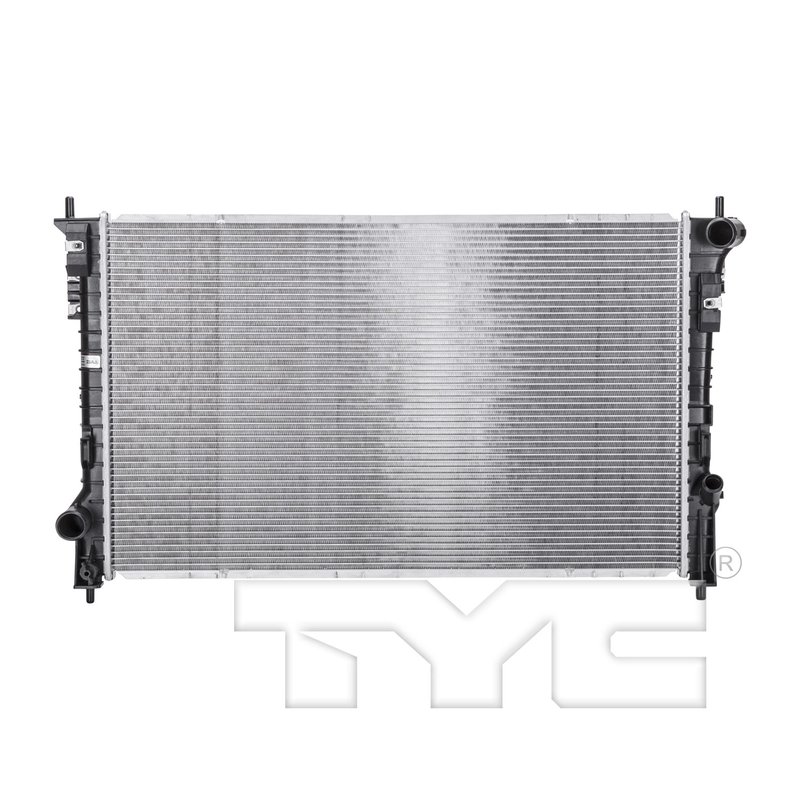

TYC 13143 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 13143 Radiator

Brand TYC 13143
Core Material Aluminum
Transmission Oil Cooler Included No
Engine Oil Cooler Included No
Bottom Header 1.97x18.47
Core Height (in) 17.57
Core Length (in) 28.74
Core Thickness (in) 1.02
Fin Count (every 4") 92
Fin Wave Height (in) 0.25
Find Wave Pitch 2.2
Flow Configuration Crossflow
Inlet Connection Type Hose clamp
Inlet Diameter (in) 1.50
No. Of Rows 1
Outlet Connection Type Hose clamp
Outlet Diameter (in) 1.50
Top Header 1.97x18.47
Total Fin Row Count 54
Total Tube Count 53
Tube Count (every 4") 12
Tube Width X Height 26x2
Product line TYC Radiator
Fits Ford and Lincoln · 8 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Crossflow design. Engineered for steady coolant flow through the radiator.

Hose clamp connections. Simplifies hose attachment for a secure, familiar fit.

Cross-references APDI 8012937, Ford 8A8Z 8005 A and Ford DT4Z 8005 A for the same application. See all 6.

$141.61Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $141.61
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator 13143 for Ford and Lincoln

TYC Radiator 13143 is an aluminum crossflow radiator built for direct replacement service on select Ford and Lincoln vehicles. It is listed for the 2009 Ford Flex, 2013-2014 Ford Edge, and 2013-2015 Lincoln MKX, with hose clamp inlet and outlet connections for a straightforward cooling-system match.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Crossflow design with a single-row core
  • Inlet and outlet diameters: 1.50 in. with hose clamp connections
  • Core dimensions: 28.74 in. length, 17.57 in. height, 1.02 in. thickness
  • No engine oil cooler included
  • No transmission oil cooler included
  • TYC Radiator line replacement for select Ford Edge, Lincoln MKX, and Ford Flex applications

Product Details

TYC part number 13143 is engineered around the listed core dimensions and tube layout to match the cooling-system requirements of the covered vehicles. The aluminum core, crossflow flow configuration, and 1.50-inch hose clamp inlet and outlet connections support a direct-fit radiator replacement for the 2009 Ford Flex, 2013-2014 Ford Edge, and 2013-2015 Lincoln MKX. This part cross-references Spectra Premium CU13143 for the same application.

Common Cooling Issues This Radiator Addresses

  • Cracked or leaking radiator tanks
  • Restricted coolant flow from internal corrosion or debris
  • Overheating caused by reduced heat dissipation
  • Damaged radiator core from age, vibration, or road wear
  • Cooling-system service needs after a failed OE-style radiator

Installation Notes and Tips

Verify the vehicle’s build date before ordering, since the 2013 Ford Edge and 2013 Lincoln MKX applications are listed from 07/30/2012. Confirm hose diameter, mounting points, and cooler requirements against the original radiator before installation. Replace coolant with the correct specification, inspect hoses and clamps for wear, and bleed the system thoroughly after installation to remove trapped air.

Quality Assurance

TYC Radiator 13143 is built as a replacement radiator for the specified Ford and Lincoln applications and follows the listed OE-style fitment and dimensional data. Part number 13143 is also referenced by APDI 8012937, Partslink FO3010291, and Spectra Premium CU13143.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersPositionNotes
2015LincolnMKXAutomatic3.7LV6N/ATYC Radiator
2014FordEdgeAutomatic3.7LV6N/ATYC Radiator
2014FordEdgeAutomatic3.5LV6N/ATYC Radiator
2014LincolnMKXAutomatic3.7LV6N/ATYC Radiator
2013FordEdgeAutomatic3.7LV6N/AFrom 07/30/2012; TYC Radiator
2013FordEdgeAutomatic3.5LV6N/AFrom 07/30/2012; TYC Radiator
2013LincolnMKXAutomatic3.7LV6N/AFrom 07/30/2012; TYC Radiator
2009FordFlexAutomatic3.5LV6N/ATYC Radiator
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8012937Ford — 8A8Z 8005 AFord — DT4Z 8005 APartslink — FO3010291Silla Cooling — 2261Spectra Premium — CU13143
