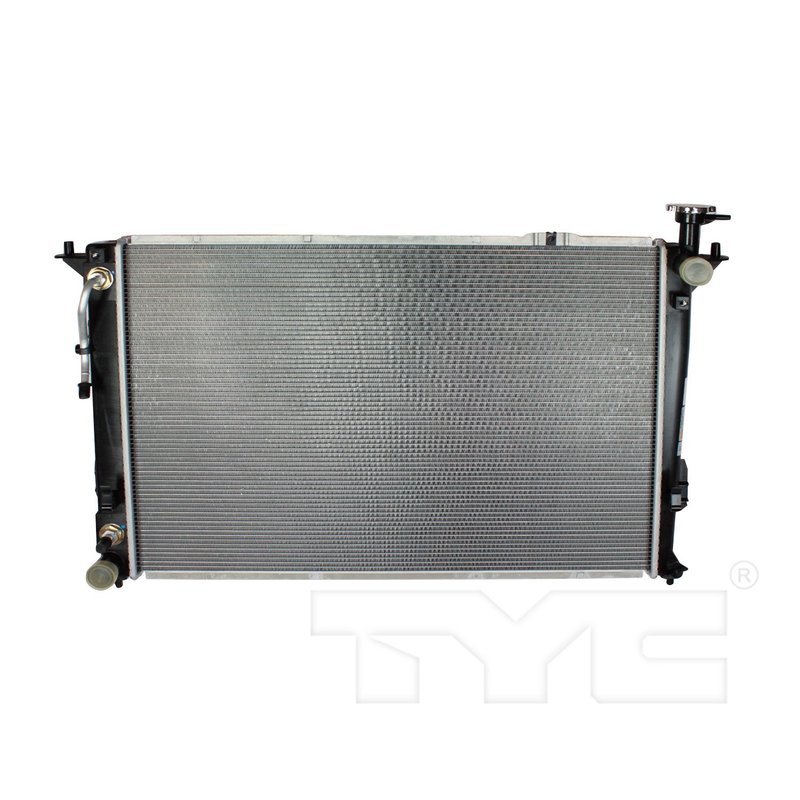

TYC 13194 Radiator

TYC Radiator for Hyundai Santa Fe and Kia Sorento

The TYC Radiator 13194 is a direct-fit cooling replacement for select Hyundai Santa Fe and Kia Sorento applications. Built with an aluminum core and a crossflow design, it includes an integrated transmission oil cooler for vehicles that route automatic transmission fluid through the radiator.

Key Features

• Aluminum core construction for efficient heat transfer
• Crossflow radiator layout
• Transmission oil cooler included with plate oil cooler design
• Hose clamp inlet and outlet connections
• 1.38 in. inlet and outlet diameters
• Single-row core design with 72 tubes and 73 total fin rows
• Core dimensions: 18.62 in. height, 26.38 in. length, 0.63 in. thickness
• TYC Radiator 13194 cross-references DENSO 221-9526 for the same application

Detailed Description

TYC 13194 is a radiator assembly engineered for 2010-2016 Hyundai Santa Fe and 2011-2015 Kia Sorento fitments. The aluminum core, crossflow flow configuration, and plate-style transmission oil cooler support thermal management in vehicles that rely on the radiator to cool both engine coolant and transmission fluid. With hose clamp inlet and outlet connections, this radiator follows the OE-style layout used in these applications. The TYC Radiator line focuses on replacement cooling components built around application-specific fitment, and part number 13194 matches the listed Hyundai Santa Fe and Kia Sorento coverage.

What It Helps Address

• Overheating caused by a restricted or leaking radiator
• Transmission fluid temperature issues when the cooler circuit is compromised
• Coolant loss from cracked tanks or damaged core passages
• Poor heat exchange from corroded or clogged radiator internals
• Fitment problems when replacing an OE-style radiator on Hyundai Santa Fe or Kia Sorento models

Installation Notes and Tips

Verify radiator dimensions, inlet and outlet diameter, and transmission cooler line style before installation. Confirm the vehicle uses the listed hose clamp connections and tube-fitting transmission cooler ports. Flush the cooling system and inspect hoses, clamps, and coolant condition before installing TYC Radiator 13194. After installation, refill with the correct coolant mixture and check for leaks at all connection points.

Quality Assurance

TYC Radiator 13194 is built to match the listed application requirements for Hyundai Santa Fe and Kia Sorento cooling system replacement. Its OE-style configuration, aluminum core, and integrated transmission oil cooler support accurate fitment for the specified vehicles.
