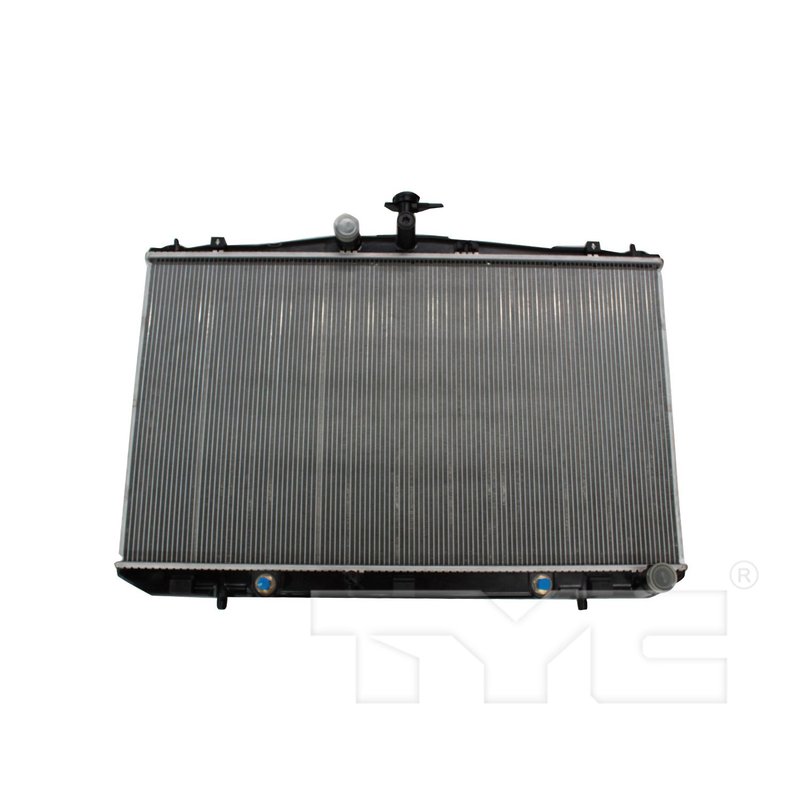

TYC 13206 Radiator

Overview of TYC Radiator 13206 for Toyota Sienna

The TYC Radiator 13206 is engineered specifically for Toyota Sienna models, providing reliable cooling performance. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine operation and transmission temperature management.

• Core material: durable aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for integrated cooling
• Core dimensions: 30.14 inches height, 17.72 inches length, 0.63 inches thickness
• Downflow configuration with 1 row of tubes and 78 fins per 4 inches
• Inlet and outlet hose clamp connections with 1.38-inch diameter
• Accessories included: Pipe m14*p1.0*2

Detailed Features of the TYC Radiator 13206

This TYC Radiator 13206 features a single-row aluminum core measuring 30.14 inches in height and 17.72 inches in length, with a thickness of 0.63 inches. The downflow design ensures efficient coolant flow through 117 tubes and 118 fin rows, with a fin wave height of 0.20 inches and a pitch of 2.6 inches. The radiator includes a concentric transmission oil cooler with tube fittings sized at 0.39 inches for both inlet and outlet, supporting integrated transmission fluid cooling. Hose clamp inlet and outlet connections with 1.38-inch diameters provide secure attachment points. The top and bottom headers measure 2.02 by 31.41 inches, contributing to structural integrity and heat transfer efficiency.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling solutions with quality materials and precise fitment. Radiators in this line are designed to meet or exceed OEM specifications, ensuring compatibility and performance for specific vehicle applications such as the Toyota Sienna. The inclusion of integrated transmission oil coolers in select models like part number 13206 highlights TYC's approach to combining multiple cooling functions in a single component.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiator cores in Toyota Sienna vehicles
• Restores proper engine coolant flow and temperature regulation
• Supports transmission cooling to prevent overheating and fluid degradation
• Addresses radiator corrosion or clogging issues affecting cooling efficiency
• Improves overall vehicle cooling system reliability and performance

Installation Notes and Tips

When installing the TYC Radiator 13206, ensure all hose clamps are securely fastened to the 1.38-inch inlet and outlet connections. Verify that the concentric transmission oil cooler fittings are properly connected using the provided tube fittings. It is recommended to flush the cooling system before installation to remove debris and contaminants. Check for any leaks after installation and refill the cooling system with the appropriate coolant mixture for the Toyota Sienna.

Quality Assurance and Warranty

TYC Radiators are manufactured to meet industry standards for durability and performance. The aluminum core construction provides corrosion resistance and efficient heat transfer. While specific warranty details for part number 13206 are not provided here, TYC typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
