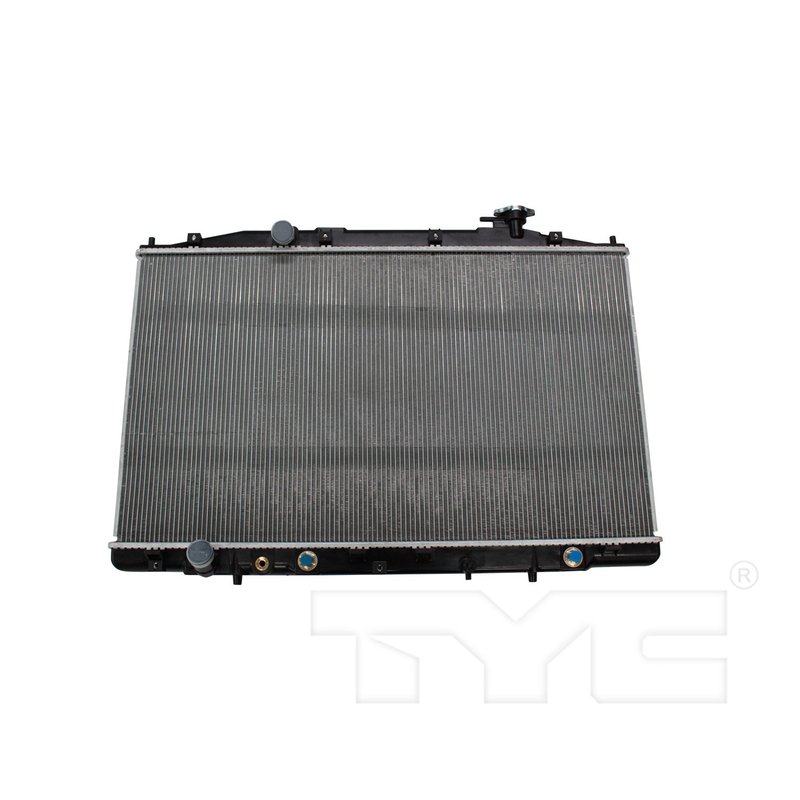

TYC 13208 Radiator - Primary

Overview of the TYC Radiator for Honda Odyssey

The TYC Radiator part number 13208 is designed specifically for Honda Odyssey models, providing reliable cooling performance. This radiator features an aluminum core and includes a concentric transmission oil cooler to support efficient engine operation.

• Core material constructed from durable aluminum
• Includes concentric transmission oil cooler for enhanced cooling
• Downflow flow configuration for optimal coolant circulation
• Core dimensions: 30.14 inches height, 17.72 inches length, 0.63 inches thickness
• Hose clamp inlet and outlet connections with 1.30-inch diameter
• Single-row tube design with 117 total tubes and 118 fin rows
• Includes pipe accessory (M14 x P1.0 x 2) for installation

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. This line emphasizes durable aluminum cores and integrated transmission oil coolers where applicable, such as in part number 13208. The design supports efficient heat dissipation and reliable vehicle performance, tailored for specific vehicle applications like the Honda Odyssey.

Technical Description and Specifications

This radiator features a robust aluminum core measuring 30.14 inches in height, 17.72 inches in length, and 0.63 inches in thickness, optimized for heat exchange efficiency. The downflow configuration ensures coolant flows from top to bottom, enhancing thermal management. It includes a concentric transmission oil cooler with tube fittings sized at 0.39 inches for both inlet and outlet, supporting transmission fluid cooling without the need for a separate engine oil cooler. The radiator has a single row of tubes, totaling 117 tubes and 118 fin rows, with a fin count of 85 every 4 inches and a fin wave height of 0.20 inches, contributing to effective airflow and heat dissipation. Hose clamp connections with 1.30-inch diameter inlet and outlet ports facilitate secure hose attachment.

Common Applications and Problem Resolution

• Replaces faulty or leaking radiators in Honda Odyssey vehicles
• Addresses overheating issues caused by inefficient cooling
• Resolves transmission fluid temperature regulation problems
• Eliminates coolant leaks from damaged or corroded radiator cores
• Improves overall engine cooling system reliability and performance

Installation Notes and Tips

Ensure compatibility with your specific Honda Odyssey model before installation. The radiator uses hose clamp connections for both inlet and outlet, requiring proper hose fitting and secure clamping to prevent leaks. The included pipe accessory (M14 x P1.0 x 2) should be used as specified. Careful handling of the aluminum core is recommended to avoid damage during installation.

Quality Assurance and Warranty

TYC Radiator part number 13208 is manufactured to meet OEM standards for fit, form, and function. The aluminum core construction and integrated transmission oil cooler are designed for durability and consistent performance. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
