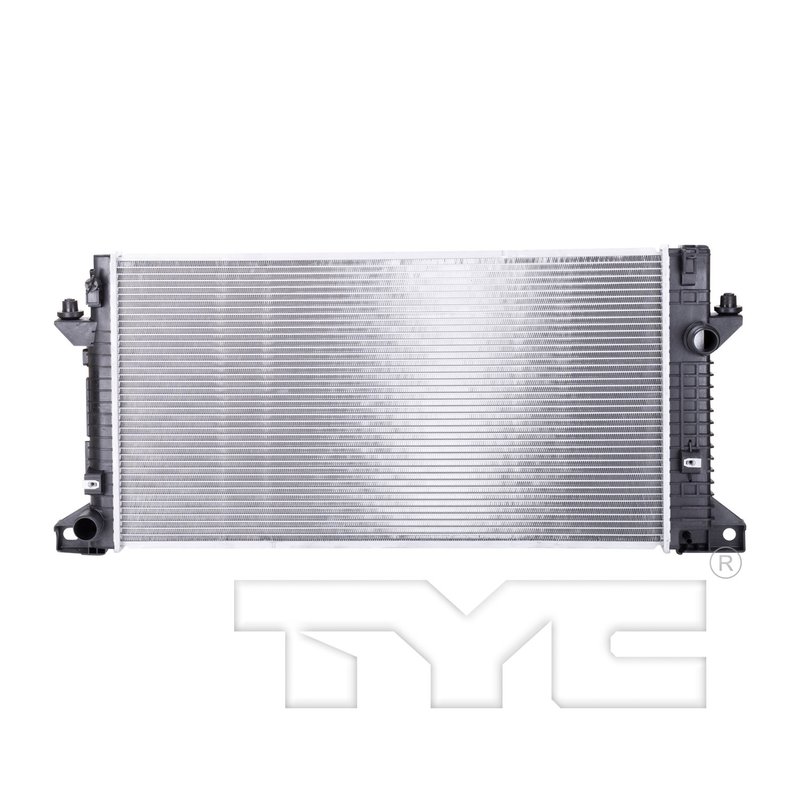

TYC 13225 Radiator
| Brand | TYC 13225 |
|---|---|
| Core Material | Aluminum |
| Tank Material | Plastic |
| Transmission Oil Cooler Type | Plate |
| Transmission Oil Cooler Distance between Fittings | 11.81 |
| Core Height (in) | 17.4 |
| Core Length (in) | 31.5 |
| Core Thickness (in) | 0.92 |
| Fin Height | 0.31 |
| Flow Configuration | Crossflow |
| Inlet Diameter | 1.50 |
| Inlet Fitting Design | Hose clamp |
| No. Of Rows | 1 |
| Outlet Diamter | 1.51 |
| Outlet Fitting Design | Hose clamp |
| Toc Inlet Diameter | 0.50 |
| Toc Inlet Fitting Design | Hose clamp |
| Toc Outlet Diameter | 0.50 |
| Toc Outlet Fitting Design | Hose clamp |
| Tube Width X Height | 0.923*0.078 |
| Product line | TYC Radiator |
| Fits | Ford · 8 vehicles |
Aluminum core. Plastic tanks and a crossflow design help manage heat efficiently.
Plate cooler included. Built with an integrated transmission oil cooler for added functionality.
Hose clamp fittings. Simplifies hose connections for a straightforward installation.
Cross-references APDI 8013225, DENSO 221-9269 and Ford BL3Z 8005 A for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for 2011-2014 Ford F-150
The TYC Radiator 13225 is a direct-fit cooling replacement for 2011-2014 Ford F-150 models with standard duty cooling. It uses an aluminum core with plastic tanks and a crossflow design to support consistent engine temperature control in everyday driving and towing conditions.
Key Features
- Aluminum core with plastic tank construction
- Crossflow radiator design for efficient coolant routing
- Single-row core with 17.4 in core height, 31.5 in core length, and 0.92 in core thickness
- 1.50 in inlet and 1.51 in outlet with hose clamp fittings
- Integrated plate-type transmission oil cooler
- Transmission oil cooler inlet and outlet use 0.50 in hose clamp fittings
- Direct replacement for Ford F-150 radiator applications with standard duty cooling
Detailed Description
TYC Radiator 13225 is built for 2011-2014 Ford F-150 trucks equipped with standard duty cooling. The aluminum core helps transfer heat efficiently, while the plastic tank design matches common OE-style radiator construction. Its crossflow layout and single-row core support steady coolant circulation, and the integrated plate transmission oil cooler adds fluid temperature management for vehicles with automatic transmission cooling routed through the radiator. This part cross-references Ford BL3Z 8005 A and DENSO 221-9269 for the same application. TYC Radiator 13225 is a practical replacement choice when servicing a Ford F-150 cooling system that needs OE-style fitment and factory-style hose clamp connections.
Common Uses
- Replacing a leaking or cracked radiator
- Restoring coolant flow after internal clogging or restricted passages
- Addressing overheating concerns in a Ford F-150 with standard duty cooling
- Repairing transmission cooler circuit issues tied to radiator-mounted cooling
- Correcting damaged inlet or outlet connections
Installation Notes and Tips
Fits 2011-2014 Ford F-150, N/A, with standard duty cooling. Verify inlet and outlet hose sizes, transmission cooler line routing, and radiator dimensions before installation. Flush the cooling system, inspect hoses and clamps, and confirm the fan shroud and mounting points align with the original radiator layout. Use the vehicle’s specified coolant and bleed the system thoroughly after installation.
Quality Assurance
TYC supplies replacement cooling components built to match application-specific fitment requirements. Part number 13225 is engineered for the listed Ford F-150 applications and follows the dimensional and connection details needed for a direct radiator replacement.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Ford | F-150 | Automatic | 5.0L | V8 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 2014 | Ford | F-150 | Automatic | 3.7L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 2013 | Ford | F-150 | Automatic | 5.0L | V8 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 2013 | Ford | F-150 | Automatic | 3.7L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 2012 | Ford | F-150 | Automatic | 3.7L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 2012 | Ford | F-150 | Automatic | 5.0L | V8 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 2011 | Ford | F-150 | Automatic | 3.7L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 2011 | Ford | F-150 | Automatic | 5.0L | V8 | N/A | w/ Std Duty Cooling; TYC Radiator |
