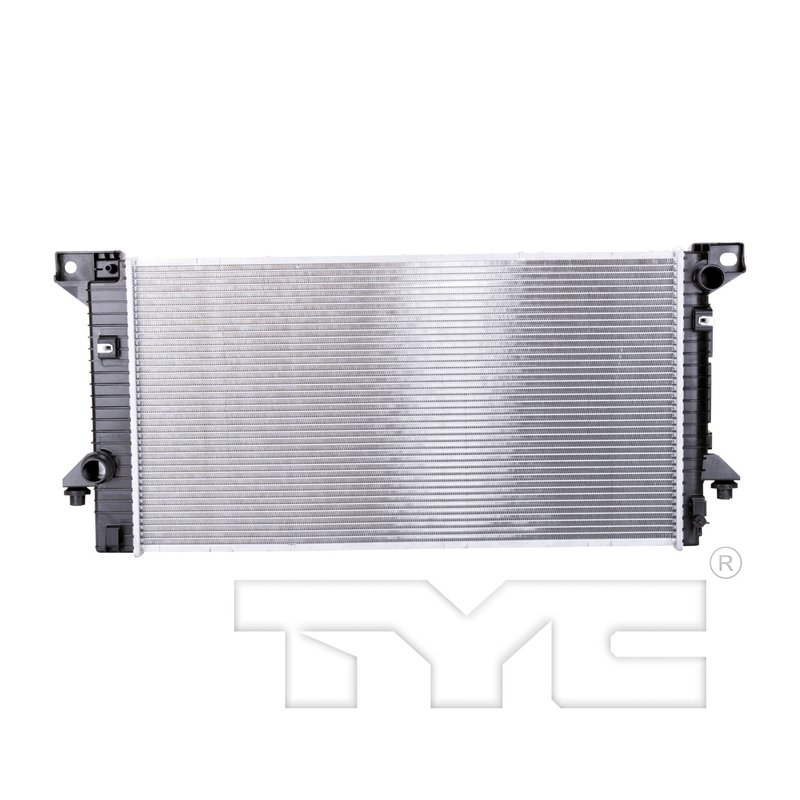

TYC 13226 Radiator

Overview of the TYC Radiator 13226 for Ford and Lincoln Vehicles

The TYC Radiator 13226 is engineered to provide reliable cooling performance for select Ford and Lincoln models, including the Expedition, F-150, and Navigator. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation under various driving conditions.

• Core constructed from lightweight, corrosion-resistant aluminum
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow design with 1.26-inch core thickness for optimal heat dissipation
• Compatible with Ford Expedition, F-150, and Lincoln Navigator models
• Inlet and outlet connections designed for hose clamp and quick connect fittings

Detailed Features and Specifications

This TYC Radiator features a 16.46-inch core height and 31.5-inch core length, providing a substantial cooling surface area. The single-row core includes 41 tubes and 42 fin rows, with a fin count of 68 every 4 inches, contributing to effective heat exchange. The fin wave height measures 0.31 inches with a wave pitch of 3, enhancing airflow through the radiator. Both the top and bottom headers measure 2.72 by 17.76 inches, supporting structural integrity and fluid flow.

The radiator’s flow configuration is crossflow, which promotes efficient coolant circulation. The inlet connection uses a hose clamp type with a 1.50-inch diameter, while the outlet connection features a quick connect spring lock with a 1.51-inch diameter. The integrated transmission oil cooler uses plate oil cooler technology with tube fitting inlet and outlet diameters of 0.35 inches, ensuring proper transmission fluid temperature management. This radiator does not include an engine oil cooler.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling components that meet or exceed OEM specifications. Radiators in this line are designed with quality materials such as aluminum cores and incorporate features like integrated transmission oil coolers to support vehicle performance. The TYC Radiator 13226 exemplifies this approach by combining durable construction with precise fitment for Ford and Lincoln trucks and SUVs.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators in Ford Expedition, F-150, and Lincoln Navigator
• Resolves overheating caused by inefficient heat dissipation
• Addresses transmission overheating with integrated plate oil cooler
• Fixes coolant leaks from corroded or cracked radiator cores
• Improves engine cooling system reliability and performance

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use proper hose clamps and quick connect fittings as specified for inlet and outlet connections
• Flush the cooling system prior to installation to remove debris and contaminants
• Check transmission oil cooler lines for secure connections and leaks
• Follow manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty

TYC Radiator 13226 is manufactured to meet industry standards for durability and performance. The aluminum core construction resists corrosion and wear, contributing to long service life. While specific warranty details may vary, TYC products typically include a limited warranty against defects in materials and workmanship. Verify warranty coverage with the product documentation or supplier.
