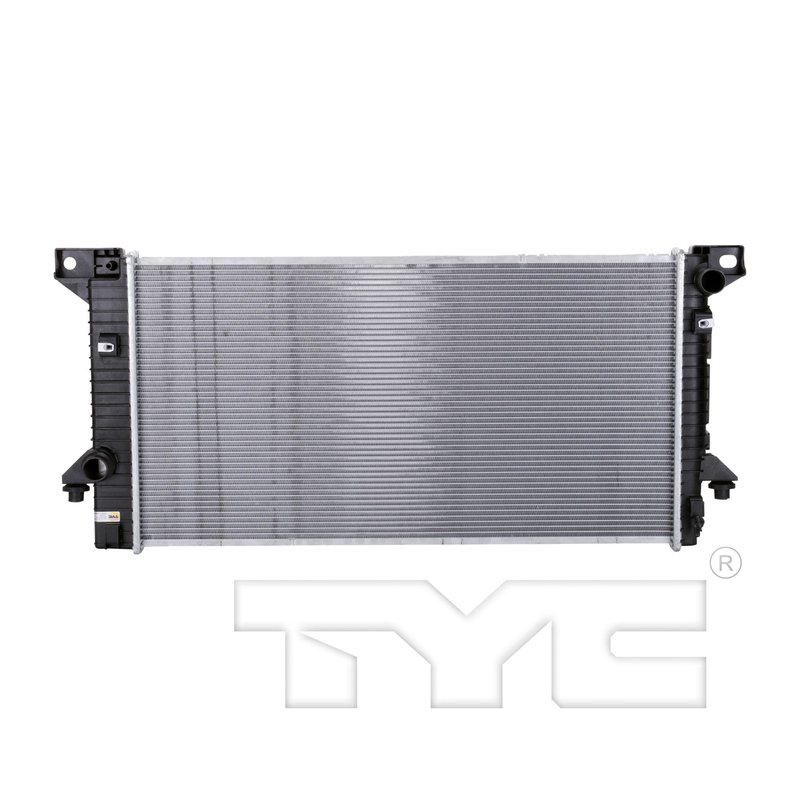

TYC 13229 Radiator - Front

Overview of the TYC Radiator 13229 for Ford and Lincoln Vehicles

The TYC Radiator 13229 is engineered to provide reliable cooling performance for select Ford and Lincoln models, including the Expedition, F-150, and Navigator. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation under various driving conditions.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow design with 1.26-inch core thickness and 16.26-inch core height
• Single-row tube configuration with 49 total tubes and 73 fins per 4 inches
• Hose clamp inlet (1.50-inch diameter) and quick connect outlet (1.51-inch diameter)
• Compatible with Ford Expedition, F-150, and Lincoln Navigator models
• Part number 13229 for precise identification and fitment

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. Radiators in this line, including part number 13229, feature robust aluminum cores and integrated transmission oil coolers where applicable, ensuring compatibility with specific vehicle cooling system requirements. This line supports efficient heat exchange and durability for Ford and Lincoln trucks and SUVs.

Technical Specifications and Features

This radiator features a crossflow flow configuration that optimizes coolant circulation across the core. The aluminum core measures 31.5 inches in length, 16.26 inches in height, and 1.26 inches in thickness, providing a balance of cooling surface area and compact design. It includes 49 tubes arranged in a single row with 73 fins every 4 inches, enhancing heat transfer efficiency. The fin wave height is 0.25 inches with a pitch of 2.8 inches, contributing to effective airflow management.

The radiator also integrates a plate-type transmission oil cooler with tube fittings for both inlet and outlet, each measuring 0.5 inches in diameter. The inlet connection uses a hose clamp type with a 1.50-inch diameter, while the outlet employs a quick connect spring lock with a 1.51-inch diameter, facilitating secure and leak-resistant hose attachment. Both the top and bottom headers measure 2.72 by 17.76 inches, supporting structural integrity and fitment.

Applications and Problem Solving

• Replaces worn or leaking radiators in Ford Expedition, F-150, and Lincoln Navigator
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission overheating by integrating a plate-type transmission oil cooler
• Improves coolant flow and reduces risk of engine damage due to cooling system failure
• Suitable for vehicles requiring a crossflow radiator design with specific inlet/outlet connections

Installation Notes and Tips

Ensure compatibility by verifying the part number 13229 against your vehicle’s specifications. The radiator’s hose clamp inlet and quick connect outlet require proper hose fitting and secure attachment to prevent leaks. Handle the aluminum core carefully to avoid damage to fins and tubes during installation. It is recommended to inspect and replace coolant hoses and clamps as needed to maintain system integrity.

Quality Assurance and Warranty

TYC Radiator 13229 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are designed for long service life. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
