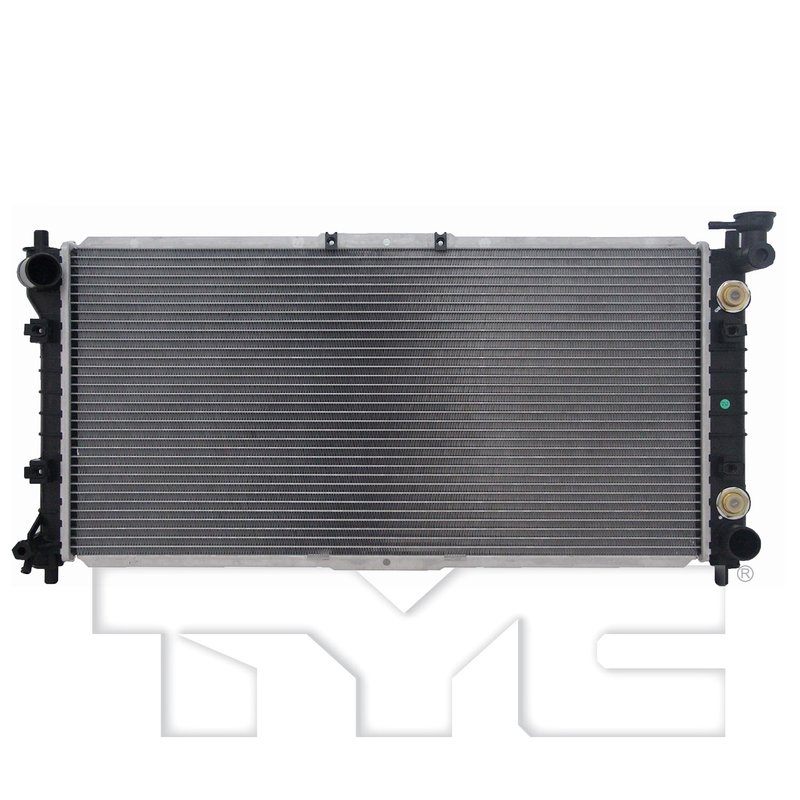

TYC 1323 Radiator

Overview of the TYC Radiator 1323 for Mazda 626 and MX-6

The TYC Radiator part number 1323 is designed specifically for Mazda 626 and MX-6 models, providing reliable cooling performance. This radiator features a durable aluminum core and includes a concentric transmission oil cooler to support efficient heat dissipation.

• Core material constructed from aluminum for effective heat transfer
• Includes concentric transmission oil cooler for enhanced transmission cooling
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 12.99 inches height, 27.17 inches length, and 1.02 inches thickness
• Fin count of 78 every 4 inches with a fin wave height of 0.25 inches
• Inlet and outlet hose clamp connections with diameters of 1.38 and 1.42 inches respectively
• Single row tube design with 39 total tubes and 40 total fin rows
• Includes speed nuts (m6xp1.) x 2 for secure mounting

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. Radiators in this line, including part number 1323, are built with precision aluminum cores and incorporate integrated transmission oil coolers where applicable. This ensures compatibility and performance tailored to specific vehicle models such as the Mazda 626 and MX-6.

Technical Description and Specifications

This radiator features a crossflow design that promotes efficient coolant flow across the core, improving heat exchange. The aluminum core measures 12.99 inches in height, 27.17 inches in length, and 1.02 inches in thickness, providing a balance of cooling surface area and compact size. The fin density is 78 fins per 4 inches, with a fin wave height of 0.25 inches and a pitch of 2.6, which aids in maximizing airflow and heat dissipation.

The radiator includes a concentric transmission oil cooler with plug-type inlet and outlet connections, supporting transmission fluid temperature regulation. Hose clamp inlet and outlet connections with diameters of 1.38 and 1.42 inches ensure secure hose attachment. The single-row tube configuration with 39 tubes and 40 fin rows contributes to effective engine cooling performance.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Mazda 626 and MX-6 vehicles
• Addresses overheating issues caused by inefficient cooling systems
• Supports transmission cooling to prevent transmission fluid overheating
• Restores proper coolant flow and heat dissipation in aging radiators
• Prevents engine damage related to coolant loss or radiator failure

Installation Notes and Tips

Ensure compatibility with Mazda 626 and MX-6 models before installation. The radiator uses hose clamp connections for both inlet and outlet hoses, which should be securely fastened to prevent leaks. The included speed nuts (m6xp1.) assist in mounting the radiator firmly in place. Verify that the transmission oil cooler plugs are properly sealed if not connected to transmission lines. It is recommended to flush the cooling system before installing the new radiator to maintain optimal performance.

Quality Assurance and Warranty

The TYC Radiator 1323 is manufactured to meet industry standards for durability and performance. Constructed with a corrosion-resistant aluminum core and designed for precise fitment, this radiator supports reliable operation in Mazda 626 and MX-6 vehicles. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage specifics.
