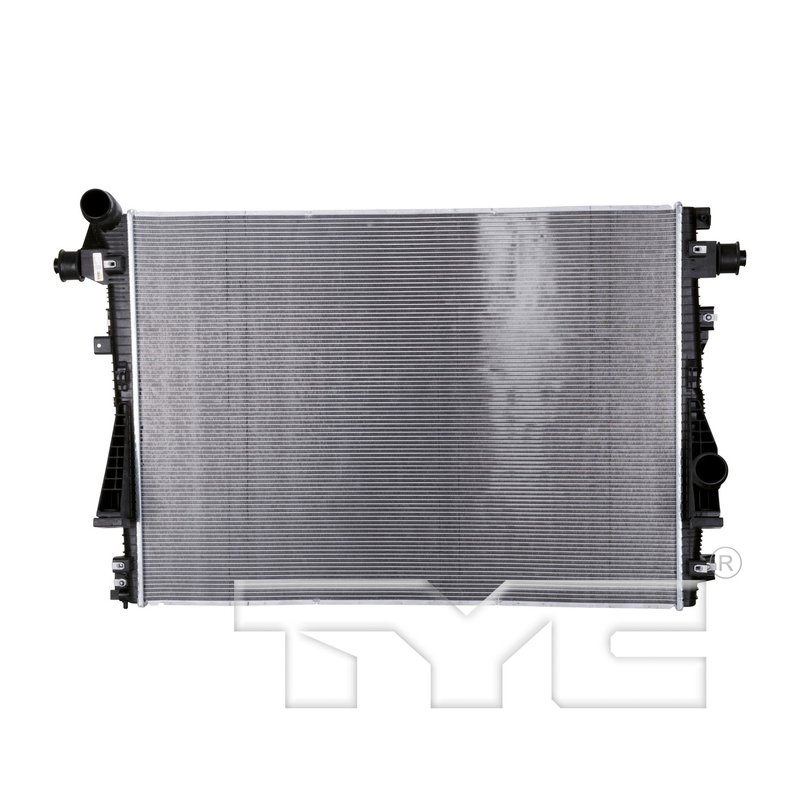

TYC 13230 Radiator - Front
| Brand | TYC 13230 |
|---|---|
| Position | Front |
| Bottom Header | 2.54x28.7 |
| Core Height (in) | 27.89 |
| Core Length (in) | 38.43 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.65 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Quick Connect (Spring Lock) |
| Inlet Diameter (in) | 2.22 |
| No. Of Rows | 1 |
| Outlet Connection Type | Quick Connect (Spring Lock) |
| Outlet Diameter (in) | 2.22 |
| Top Header | 2.54x28.7 |
| Total Fin Row Count | 91 |
| Total Tube Count | 90 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 13 |
| Tube Width X Height | 16x1.5 and 22x1.5 |
| Product line | TYC Radiator |
| Fits | Ford · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Quick-connect fittings. Spring-lock connections simplify installation and removal.
Cross-references APDI 8013230, CryoMAX 13230 and CSF 3601 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford Super Duty Cooling Service
The TYC Radiator 13230 is a front primary radiator for 2011-2016 Ford F-250 Super Duty and 2011-2016 Ford F-350 Super Duty applications. Built with an aluminum core and crossflow design, it matches the connection style and core dimensions needed for direct cooling system service on these trucks.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow flow configuration
- Quick Connect (Spring Lock) inlet and outlet connections
- Inlet and outlet diameter: 2.22 in.
- Single-row core design
- Core dimensions: 27.89 in. height, 38.43 in. length, 1.65 in. thickness
- No engine oil cooler included
- No transmission oil cooler included
- TYC Radiator line replacement for Ford Super Duty cooling repair
Detailed Description
TYC part number 13230 is a radiator assembly engineered for front-mounted primary cooling on Ford F-250 Super Duty and Ford F-350 Super Duty trucks from 2011 through 2016. The aluminum core, crossflow layout, and spring-lock quick connect fittings support OE-style replacement service where the original radiator has leaked, clogged, or lost cooling efficiency. This TYC Radiator 13230 also cross-references Ford BC3Z 8005 K for the same application.
The radiator uses a single-row core with 90 total tubes and 91 total fin rows, along with top and bottom headers sized 2.54x28.7. These specifications matter when matching the factory cooling package on a Ford Super Duty, especially for owners searching for a 2011-2016 Ford F-250 Super Duty front radiator or a 2011-2016 Ford F-350 Super Duty front radiator replacement.
Common Problems This Radiator Can Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted coolant flow
- Reduced cooling performance from internal tube blockage
- Cracked or worn inlet and outlet connections
- Replacement needs after impact or age-related wear
Installation Notes and Tips
Verify the inlet and outlet connection type, core dimensions, and front position before installation. Drain the cooling system, inspect hoses and spring-lock fittings for wear, and confirm the radiator mounts align with the vehicle’s factory support points. After installation, refill with the correct coolant mixture and bleed the system according to Ford service procedures.
Quality Assurance
TYC manufactures replacement cooling components for direct-fit service applications, and this radiator is built to match the listed Ford Super Duty fitment and connection requirements. Confirm vehicle year, model, and front-position application before ordering.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Ford | F-250 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2016 | Ford | F-350 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2015 | Ford | F-250 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2015 | Ford | F-350 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2014 | Ford | F-250 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2014 | Ford | F-350 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2013 | Ford | F-250 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2013 | Ford | F-350 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2012 | Ford | F-250 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2012 | Ford | F-350 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
| 2011 | Ford | F-250 Super Duty | 6.7L | V8 | — | Front | Primary Radiator; TYC Radiator |
| 2011 | Ford | F-350 Super Duty | 6.7L | V8 | DIESEL | Front | Primary Radiator; TYC Radiator |
