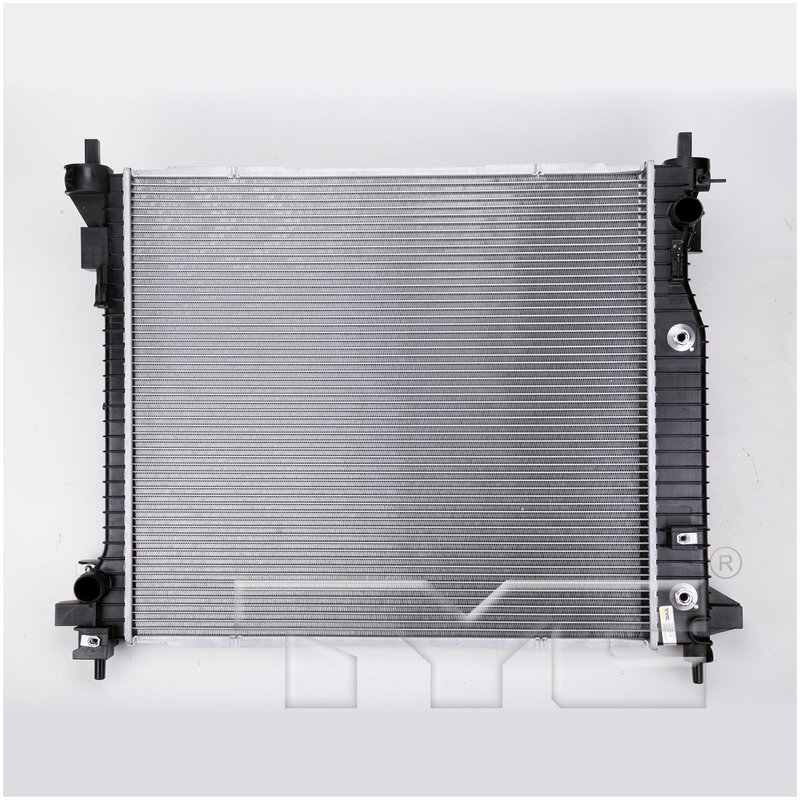

TYC 13241 Radiator
| Brand | TYC 13241 |
|---|---|
| Bottom Header | 2.91x22.78 |
| Core Height (in) | 21.99 |
| Core Length (in) | 24.45 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.30 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.34 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick Connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick Connect |
| Top Header | 1.83x22.78 |
| Total Fin Row Count | 59 |
| Total Tube Count | 58 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 11 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Cadillac · 7 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports steady coolant flow through a single-row radiator.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Cross-references APDI 8013241, DENSO 221-9274 and General Motors 20926497 for the same application. See all 6.
TYC Radiator for Cadillac SRX
The TYC Radiator 13241 is a direct-fit cooling replacement for select Cadillac SRX applications. Built with an aluminum core and integrated transmission oil cooler, it supports engine cooling and automatic transmission fluid heat exchange in one assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator design with one-row core layout
- Transmission oil cooler included with plate oil cooler design
- Hose clamp inlet and outlet connections
- Core dimensions: 21.99 in. height, 24.45 in. length, 1.02 in. thickness
- Inlet and outlet diameters: 1.34 in.
- OE cross-reference support for select GM applications
Detailed Product Overview
TYC Radiator 13241 is engineered for 2010-2011 Cadillac SRX and 2012-2016 Cadillac SRX applications listed in the fitment data. This radiator uses an aluminum core with a crossflow layout to manage coolant flow through the engine cooling system, while the built-in transmission oil cooler adds fluid temperature control for automatic transmission operation. The radiator features hose clamp inlet and outlet connections, a plate-style transmission cooler, and OE-style dimensions that support proper fitment in the specified Cadillac SRX applications. This part cross-references DENSO 221-9274 and Spectra Premium CU13241 for the same application.
Common Cooling System Issues Addressed
- Overheating caused by a leaking or restricted radiator
- Transmission fluid temperature concerns tied to a failed cooler circuit
- Coolant loss from cracked or corroded radiator components
- Reduced heat dissipation from damaged internal tubes or fins
- Poor cooling performance in Cadillac SRX models with aging factory radiators
Installation Notes and Fitment
Fits 2012-2016 Cadillac SRX, N/A. Fits 2010-2011 Cadillac SRX, N/A; from 06/07/2010. Verify hose connection style, cooler line routing, and radiator dimensions before installation. Transfer any vehicle-specific components required for the application and confirm all connections are secure after installation. This TYC Radiator 13241 is listed for the Cadillac SRX platform only in the years shown.
Quality Assurance
TYC Radiator products are built to match application-specific OE replacement requirements using defined core dimensions, connection types, and cooler integration for the listed vehicle fitment.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Cadillac | SRX | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2015 | Cadillac | SRX | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2014 | Cadillac | SRX | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2013 | Cadillac | SRX | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2012 | Cadillac | SRX | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2011 | Cadillac | SRX | Automatic | 3.0L | V6 | N/A | From 06/07/2010; TYC Radiator |
| 2010 | Cadillac | SRX | Automatic | 3.0L | V6 | N/A | From 06/07/2010; TYC Radiator |
