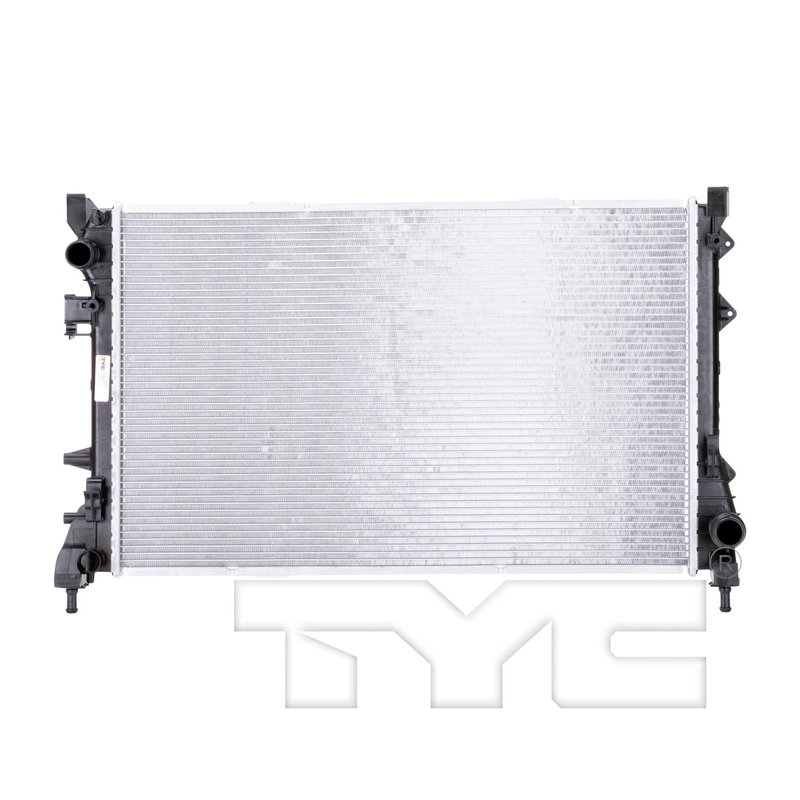

TYC 13245 Radiator

Overview of TYC Radiator for Fiat 500

The TYC Radiator part number 13245 is engineered specifically for the Fiat 500, providing reliable cooling performance. Designed with an aluminum core and a crossflow configuration, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core material: durable aluminum for effective heat transfer
• Core dimensions: 15.3 inches height, 24.41 inches length, 0.63 inches thickness
• Crossflow flow configuration for improved coolant circulation
• Inlet and outlet connections designed for secure hose clamp and quick connect fittings
• Compatible with Fiat 500 models requiring a single-row radiator

Detailed Specifications and Features

This TYC Radiator (part number 13245) features a single-row core with 49 tubes and 50 fin rows, optimized for the Fiat 500. The core’s aluminum construction enhances thermal conductivity while maintaining lightweight durability. The fin count of 92 per 4 inches and fin wave height of 0.25 inches contribute to efficient airflow and heat exchange. The radiator’s bottom and top headers measure 1.45 by 16.08 inches, supporting structural integrity and coolant flow.

The radiator’s inlet connection uses a hose clamp type with a diameter of 1.18 inches, while the outlet connection employs a quick connect spring lock with a 1.28-inch diameter. These connection types ensure a secure fit and ease of installation. The crossflow design promotes uniform coolant distribution across the core, enhancing cooling efficiency under various driving conditions.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling components that meet or exceed OEM specifications. Radiators in this line, including part number 13245, are designed with precision to fit specific vehicle models such as the Fiat 500. The use of aluminum cores and carefully engineered flow configurations reflects TYC’s commitment to durability and performance in automotive cooling systems.

Common Applications and Problem Resolution

• Replaces damaged or leaking radiator in Fiat 500 vehicles
• Addresses engine overheating issues caused by inefficient cooling
• Restores proper coolant flow and temperature regulation
• Solves radiator corrosion or clogging problems
• Improves overall engine performance by maintaining optimal operating temperature

Installation Notes and Tips

When installing the TYC Radiator 13245 on a Fiat 500, ensure all hose connections are clean and free of debris. Use the appropriate hose clamp and quick connect fittings to secure inlet and outlet hoses. Verify that the radiator is properly seated and mounted to avoid vibrations or leaks. It is recommended to flush the cooling system before installation to remove any contaminants that could affect performance.

Quality Assurance and Warranty

TYC Radiators are manufactured to meet strict quality standards, using corrosion-resistant aluminum cores and durable headers. While specific warranty details for part number 13245 should be confirmed with the supplier, TYC generally offers coverage against defects in materials and workmanship to ensure long-term reliability for Fiat 500 owners.
