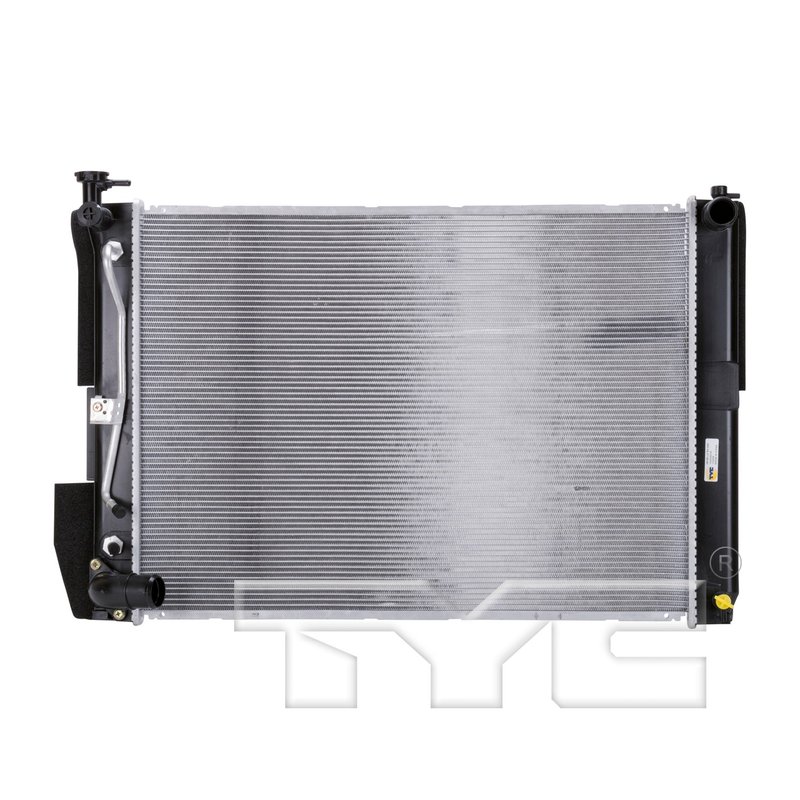

TYC 13256 Radiator
| Brand | TYC 13256 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.71x20.06 |
| Core Height (in) | 18.62 |
| Core Length (in) | 25.59 |
| Core Thickness (in) | 0.87 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.56 |
| Remarks | Plastic tank design only. verify original radiator on vehicle bef |
| Toc Distance (in) | 13.78 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.71x20.06 |
| Total Fin Row Count | 73 |
| Total Tube Count | 72 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 22x1.5 |
| Product line | TYC Radiator |
| Fits | Lexus · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Cross-references APDI 8013256, DENSO 221-0602 and Lexus 16041-20314 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Lexus RX330 Cooling Service
The TYC Radiator 13256 is a direct-fit replacement radiator for select Lexus RX330 applications with a plastic tank design. It uses an aluminum core with a crossflow layout and includes a transmission oil cooler with plate-style construction for integrated cooling support.
Compatible With 2004 Lexus RX330 and 2005-2006 Lexus RX330, this radiator is built around the original vehicle configuration. Verify the original radiator on the vehicle before ordering, especially on 2005-2006 Lexus RX330 models from 06/2005 onward.
Key Features
- TYC Radiator part number 13256
- Aluminum core construction
- Crossflow flow configuration
- One-row core design
- Transmission oil cooler included with plate oil cooler type
- Hose clamp inlet and outlet connections
- Plastic tank design only
- OE-style dimensions for select Lexus RX330 fitment
Product Details
TYC Radiator 13256 is engineered for select Lexus RX330 cooling system service where the original radiator uses plastic tanks. Core dimensions measure 18.62 inches high, 25.59 inches long, and 0.87 inch thick, with a 22 x 1.5 tube width and height. The unit also includes a transmission oil cooler with 0.39-inch tube fittings and a 13.78-inch TOC distance. This part cross-references DENSO 221-0602 for the same application.
Use this radiator when replacing a leaking, clogged, or damaged unit on a Lexus RX330 and when the vehicle requires an integrated transmission cooler. The TYC Radiator 13256 is listed for 2004 Lexus RX330 and 2005-2006 Lexus RX330, with a note to verify the original radiator before ordering.
Common Problems This Part Can Address
- Coolant leaks from a cracked or aging radiator tank
- Restricted coolant flow from internal corrosion or debris
- Overheating caused by reduced heat transfer
- Transmission fluid temperature control concerns tied to the radiator cooler circuit
- Damage to the original radiator core from road wear or impact
Installation Notes and Tips
Confirm that the vehicle uses a plastic tank radiator before installation. Match the inlet and outlet hose connections, cooler fittings, and overall core dimensions to the original unit on the vehicle. On 2005-2006 Lexus RX330 applications, check the build date and compare the existing radiator before ordering, since the listing notes fitment from 06/2005.
Quality Assurance
TYC Radiator components are built to OE-style specifications for direct replacement use. This radiator is listed with confirmed fitment for select Lexus RX330 models and should be matched to the original radiator configuration before installation.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2006 | Lexus | RX330 | — | Automatic | 3.3L | V6 | N/A | w/ Plastic Tank; From 06/2005; Remarks: Plastic Tank Design Only. Verify original radiator on vehicle before ordering; TYC Radiator |
| 2005 | Lexus | RX330 | — | Automatic | 3.3L | V6 | N/A | w/ Plastic Tank; From 06/2005; Remarks: Plastic Tank Design Only. Verify original radiator on vehicle before ordering; TYC Radiator |
| 2004 | Lexus | RX330 | Sport Utility | — | 3.3L | V6 | N/A | w/ Plastic Tank; TYC Radiator |
