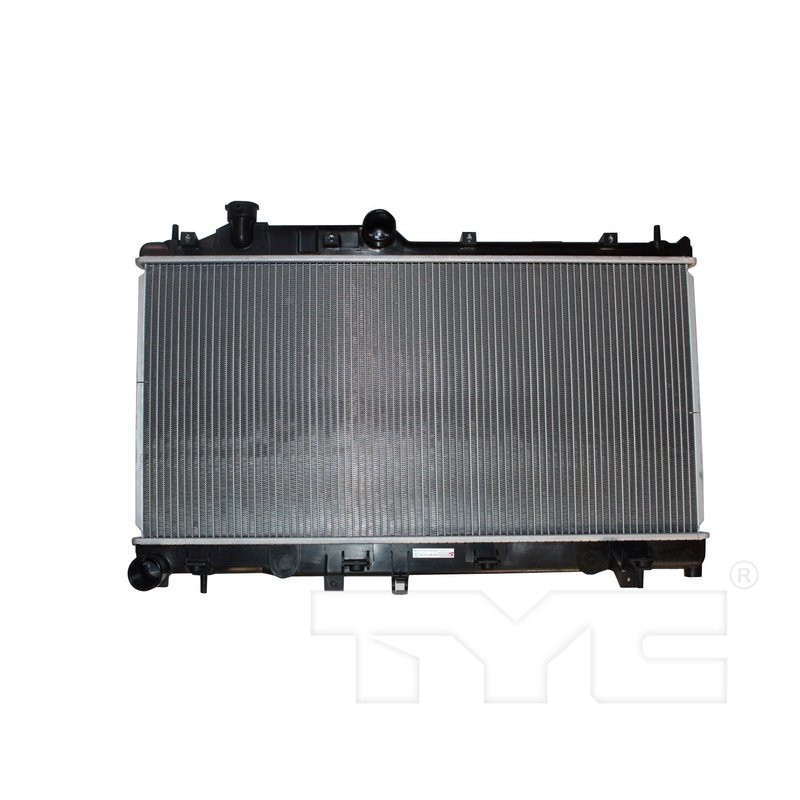

TYC 13258 Radiator

Overview of TYC Radiator 13258 for Subaru Impreza

The TYC Radiator 13258 is designed specifically for Subaru Impreza models, providing reliable engine cooling with durable aluminum core construction. This radiator supports efficient heat dissipation to maintain optimal engine temperature under various driving conditions.

• Core Material: Aluminum for effective heat transfer
• Core Dimensions: 27.04 inches height, 13.39 inches length, 0.63 inches thickness
• Flow Configuration: Downflow design for consistent coolant circulation
• Connection Types: Hose clamp inlet and outlet with 1.57-inch diameter
• Fin Count: 78 fins every 4 inches with 0.25-inch fin wave height
• Tube Count: 82 total tubes with 16x2 inch tube width and height
• Headers: Top and bottom headers sized 1.56x28.21 inches
• Single row core construction for streamlined cooling

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. The TYC Radiator 13258 exemplifies this approach by combining robust aluminum core materials with precise flow configurations to ensure consistent engine temperature regulation for Subaru Impreza vehicles.

Technical Description and Features

This radiator features a downflow core design that promotes efficient coolant flow from top to bottom, enhancing heat exchange. The aluminum core material offers corrosion resistance and lightweight durability. With 78 fins every 4 inches and a fin wave height of 0.25 inches, the radiator maximizes surface area for heat dissipation. The 82 tubes arranged in a single row provide ample coolant passage, while the 1.57-inch hose clamp inlet and outlet connections ensure secure and leak-free installation. Both top and bottom headers measure 1.56 by 28.21 inches, supporting structural integrity and coolant distribution.

Common Applications and Problem Solving

• Replaces damaged or leaking radiators in Subaru Impreza models
• Addresses engine overheating issues caused by inefficient cooling
• Restores proper coolant flow and pressure within the cooling system
• Solves radiator core corrosion or clogging problems
• Improves engine temperature stability during extended driving

Installation Notes and Tips

Ensure compatibility with Subaru Impreza before installation by verifying part number 13258. Use appropriate hose clamps for inlet and outlet connections sized at 1.57 inches. Inspect cooling system hoses and replace if worn to prevent leaks. Bleed the cooling system after installation to remove air pockets and maintain optimal coolant circulation.

Quality Assurance and Warranty

The TYC Radiator 13258 is manufactured to meet industry standards for durability and performance. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliability in automotive cooling applications.
