Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

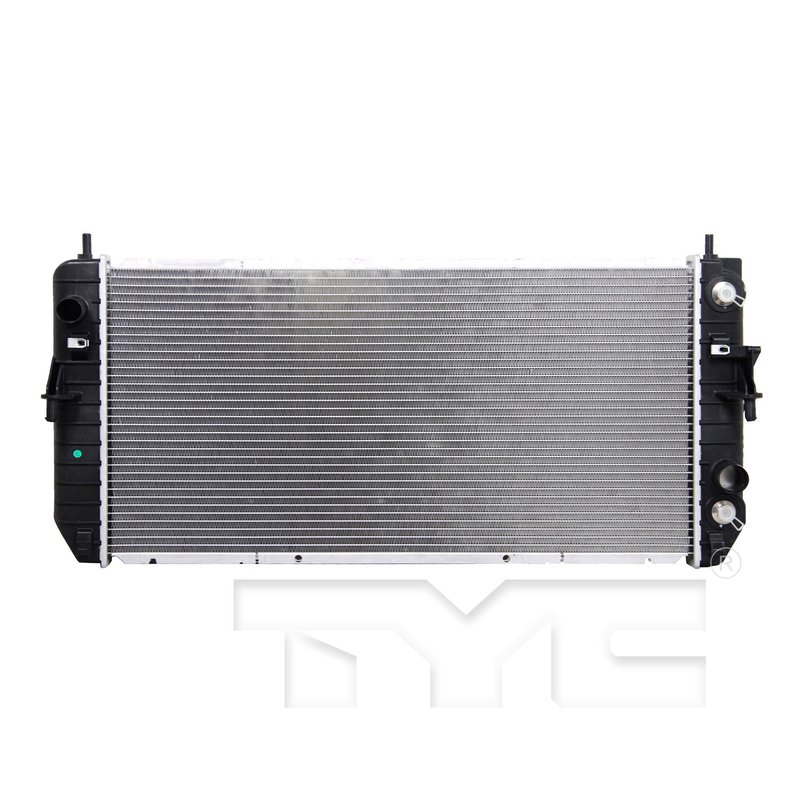

TYC 13267 Radiator - Front
| Brand | TYC 13267 |
|---|---|
| Position | Front |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.42x16.59 |
| Core Height (in) | 15.08 |
| Core Length (in) | 30.47 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 56 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.32 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.56 |
| Toc Distance (in) | 11.50 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick connect |
| Top Header | 2.42x16.59 |
| Total Fin Row Count | 35 |
| Total Tube Count | 34 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Buick · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Built with an integrated plate oil cooler for added cooling support.
Crossflow design. Engineered for steady coolant flow through a single-row radiator.
Cross-references APDI 8013267, Buick 15897535 and DPI (DataPoint Inc) 13267 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Buick Lucerne
The TYC Radiator 13267 is a direct-fit cooling replacement for select 2009-2011 Buick Lucerne front applications. Built with an aluminum core and a crossflow design, it includes an integrated transmission oil cooler with plate-style construction for vehicles equipped with automatic transmission cooling.
Compatible with Buick Lucerne models from 2009 through 2011, this radiator is built around the listed core dimensions and hose-clamp inlet and outlet connections for a straightforward OE-style replacement. The TYC Radiator line focuses on application-specific cooling components, and part number 13267 follows that approach for the Buick Lucerne platform.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator design
- Transmission oil cooler included with plate oil cooler type
- Hose clamp inlet and outlet connections
- Single-row core layout
- OE-style fitment for 2009-2011 Buick Lucerne, front
- Part number 13267 for easy identification
Detailed Description
TYC Radiator 13267 is engineered for the front cooling system application on the 2009-2011 Buick Lucerne. The aluminum core measures 15.08 inches in height, 30.47 inches in length, and 1.02 inches in thickness, with a crossflow configuration and one-row construction. It also includes a transmission oil cooler with quick-connect inlet and outlet ports, supporting vehicles that route automatic transmission fluid through the radiator assembly. This radiator is a practical replacement choice when servicing a Buick Lucerne radiator, a front cooling system leak, or a worn OE-style radiator assembly. Cross-reference numbers include Spectra Premium CU13267 and Partslink GM3010611 for the same application.
What It Is Used For
- Replacing a leaking or damaged Buick Lucerne radiator
- Restoring engine coolant flow and heat dissipation
- Addressing transmission cooler seepage at the radiator assembly
- Correcting overheating caused by restricted or aging radiator passages
- Servicing a front-mounted cooling system on 2009-2011 Buick Lucerne models
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler connection style before installation. Confirm the vehicle uses the front radiator application listed for 2009-2011 Buick Lucerne models. Flush the cooling system, inspect hoses and clamps, and check transmission cooler lines for contamination or wear before connecting the new radiator.
Quality Assurance
TYC manufactures application-specific cooling components with OE-style fitment and construction details matched to the listed vehicle platform. Part number 13267 is built to the specifications shown for the Buick Lucerne radiator application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Buick | Lucerne | 3.9L | V6 | Front | TYC Radiator |
| 2010 | Buick | Lucerne | 3.9L | V6 | Front | TYC Radiator |
| 2009 | Buick | Lucerne | 3.9L | V6 | Front | TYC Radiator |
| No rows match your filter. | ||||||
