Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

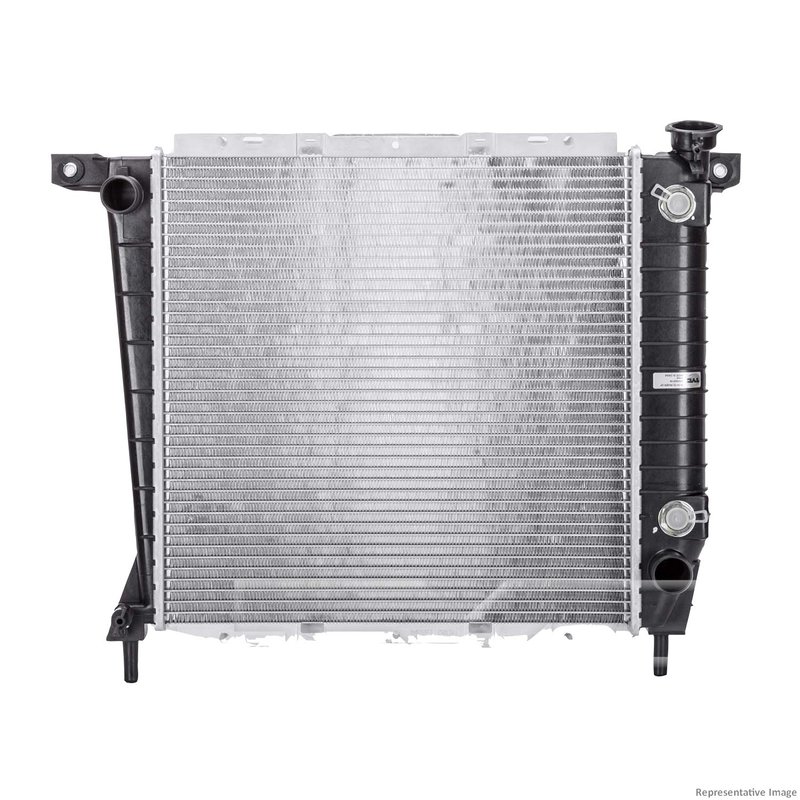

TYC 13272 Radiator
| Brand | TYC 13272 |
|---|---|
| Core Height (in) | 17.66 |
| Core Length (in) | 25.59 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.26 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 84 |
| Fin Wave Height (in) | 4.5 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | CrossFlow |
| Inlet Connection Type | Spring Lock |
| Inlet Diameter | 32.5 |
| Outlet Connection Type | Spring Lock |
| Outlet Diameter (in) | 32.5 |
| Tank Material | Plastic |
| Total Fin Row Count | 75 |
| Total Tube Count | 74 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 17 |
| Tube Width X Height | 32 x 1.5 |
| Product line | TYC Radiator |
| Fits | Volkswagen · 11 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports steady coolant flow through the radiator core.
Spring-lock connections. Inlet and outlet connections are made for secure attachment.
Cross-references APDI 8013272, DENSO 221-9460 and DPI (DataPoint Inc) 13272 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Volkswagen Tiguan
The TYC Radiator 13272 is a direct-fit cooling replacement for select Volkswagen Tiguan and Tiguan Limited applications. Built with an aluminum core and plastic tanks, it follows the OE-style crossflow layout and spring lock inlet and outlet connections for a factory-style fit.
For Volkswagen Tiguan owners searching for a radiator replacement for 2009-2017 Volkswagen Tiguan or a 2017-2018 Volkswagen Tiguan Limited, this unit matches the listed application details and cooling-system connection style.
Key Features
- Aluminum core with plastic tank construction
- CrossFlow design for OE-style coolant routing
- Spring lock inlet and outlet connections
- No transmission oil cooler included
- No engine oil cooler included
- Core dimensions: 17.66 in. height, 25.59 in. length, 1.26 in. thickness
- Core tube and fin layout engineered to match the listed application
Product Details
TYC Radiator 13272 is built for direct replacement in the Volkswagen Tiguan cooling system. The aluminum core helps transfer heat efficiently, while the plastic tanks follow the common OE radiator construction used on many late-model import vehicles. The crossflow configuration, 32.5 mm inlet and outlet diameters, and spring lock connections support a factory-style installation on the specified Tiguan and Tiguan Limited fitments. This part cross-references Spectra Premium CU13272 and Volkswagen 5N0121253P for the same application.
Fits 2009-2017 Volkswagen Tiguan, N/A. Fits 2017 Volkswagen Tiguan Limited, Primary. Fits 2018 Volkswagen Tiguan Limited, N/A. The TYC Radiator 13272 is a practical choice when replacing a leaking, clogged, or damaged radiator on these Volkswagen Tiguan models.
Common Replacement Reasons
- Coolant leaks from a cracked or aging radiator tank
- Overheating caused by restricted coolant flow
- Corrosion or internal buildup in the radiator core
- Physical damage from road debris or front-end impact
- Cooling-system service on a Volkswagen Tiguan or Tiguan Limited
Installation Notes
Verify the spring lock connection style, inlet and outlet diameter, and core dimensions before installation. Drain the cooling system, transfer any required fittings from the original unit, and inspect hoses, clamps, and coolant condition before refilling. After installation, bleed the system according to the vehicle service procedure and check for leaks at the connections.
Quality Assurance
TYC manufactures replacement cooling components to OE-style specifications for fit and function on the listed applications. Part number 13272 is built for the confirmed Volkswagen Tiguan and Tiguan Limited fitments shown above.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Volkswagen | Tiguan Limited | Sport Utility | 2.0L | L4 | N/A | TYC Radiator |
| 2017 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
| 2017 | Volkswagen | Tiguan Limited | Sport Utility | 2.0L | L4 | Primary | TYC Radiator |
| 2016 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
| 2015 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
| 2014 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
| 2013 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
| 2012 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
| 2011 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
| 2010 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
| 2009 | Volkswagen | Tiguan | — | 2.0L | L4 | N/A | TYC Radiator |
