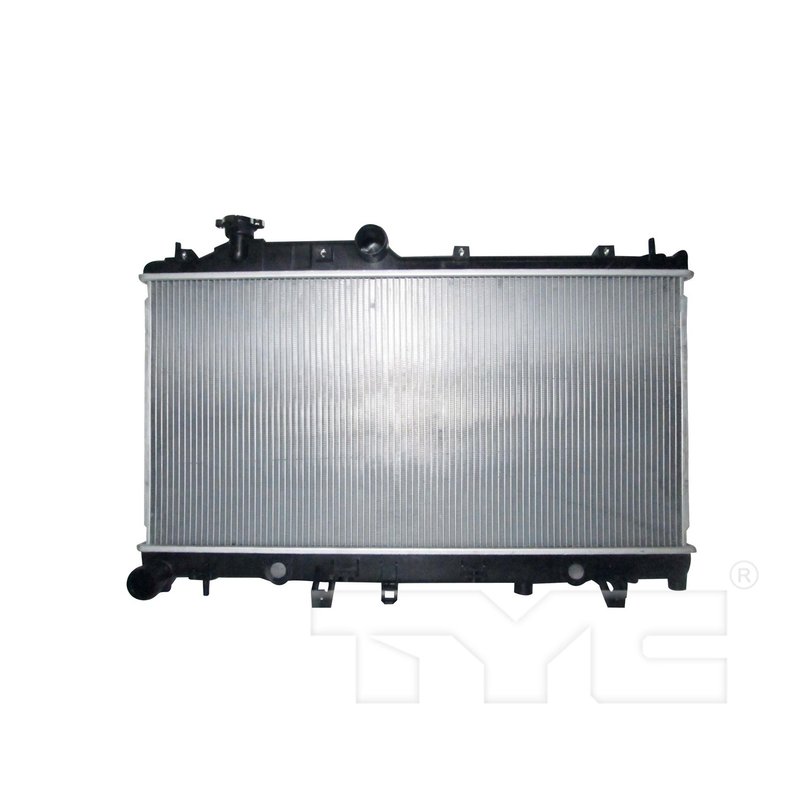

TYC 13281 Radiator - Front
| Brand | TYC 13281 |
|---|---|
| Position | Front |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.71x28.4 |
| Core Height (in) | 27.09 |
| Core Length (in) | 13.74 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.12 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.57 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.43x28.4 |
| Total Fin Row Count | 69 |
| Total Tube Count | 68 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Subaru · 10 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Engineered for steady coolant flow through the radiator.
Cross-references APDI 8013281, CSF 3501 and DENSO 221-9546 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Subaru Legacy and Outback
Restore proper engine cooling with the TYC Radiator 13281, built for 2010-2014 Subaru Legacy and 2010-2014 Subaru Outback front applications. This aluminum radiator includes a concentric transmission oil cooler and is configured for downflow cooling in a direct-fit replacement format.
TYC Radiator 13281 is engineered for Subaru Legacy and Subaru Outback models that need a radiator with integrated transmission cooling connections. Its OE-style layout supports clean hose-clamp installation and matches the cooling system requirements of the listed vehicles.
Key Features
- Aluminum core construction for efficient heat transfer
- Integrated transmission oil cooler with concentric oil cooler design
- Downflow flow configuration
- Hose clamp inlet and outlet connections
- Single-row core design
- Direct-fit replacement for select Subaru Legacy and Subaru Outback models
- Cross-reference part numbers include DENSO 221-9546 and Subaru 45111AJ05A
Detailed Description
The TYC Radiator 13281 is a cooling system replacement part for 2010-2014 Subaru Legacy and 2010-2014 Subaru Outback front applications. It uses an aluminum core with a 27.09-inch core height, 13.74-inch core length, and 0.63-inch core thickness, along with a downflow layout and one-row construction. The radiator also includes a transmission oil cooler with tube-fitting connections, making it a practical choice for vehicles that route automatic transmission fluid through the radiator assembly. For buyers searching for a 2010-2014 Subaru Legacy radiator or 2010-2014 Subaru Outback radiator, part number 13281 provides the specified fitment and cooling configuration.
What It Helps Address
- Overheating caused by a worn or restricted radiator
- Coolant leaks from aging radiator tanks or core damage
- Reduced cooling efficiency from clogged internal passages
- Transmission fluid temperature control through the integrated cooler
- Fitment issues when replacing the original Subaru Legacy or Subaru Outback radiator
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler line connections before installation. This unit uses hose clamp inlet and outlet connections, with tube-fitting transmission cooler ports. Confirm the vehicle is equipped for the listed front application and compare the original radiator layout to TYC Radiator 13281 before removal of the old unit.
Quality Assurance
TYC supplies replacement cooling components with OE-style fitment and application-specific engineering. This radiator is built to match the listed Subaru Legacy and Subaru Outback applications and to support proper cooling system service on the specified vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Subaru | Legacy | 3.6L | H6 | Front | TYC Radiator |
| 2014 | Subaru | Outback | 3.6L | H6 | Front | TYC Radiator |
| 2013 | Subaru | Legacy | 3.6L | H6 | Front | TYC Radiator |
| 2013 | Subaru | Outback | 3.6L | H6 | Front | TYC Radiator |
| 2012 | Subaru | Legacy | 3.6L | H6 | Front | TYC Radiator |
| 2012 | Subaru | Outback | 3.6L | H6 | Front | TYC Radiator |
| 2011 | Subaru | Legacy | 3.6L | H6 | Front | TYC Radiator |
| 2011 | Subaru | Outback | 3.6L | H6 | Front | TYC Radiator |
| 2010 | Subaru | Legacy | 3.6L | H6 | Front | TYC Radiator |
| 2010 | Subaru | Outback | 3.6L | H6 | Front | TYC Radiator |
