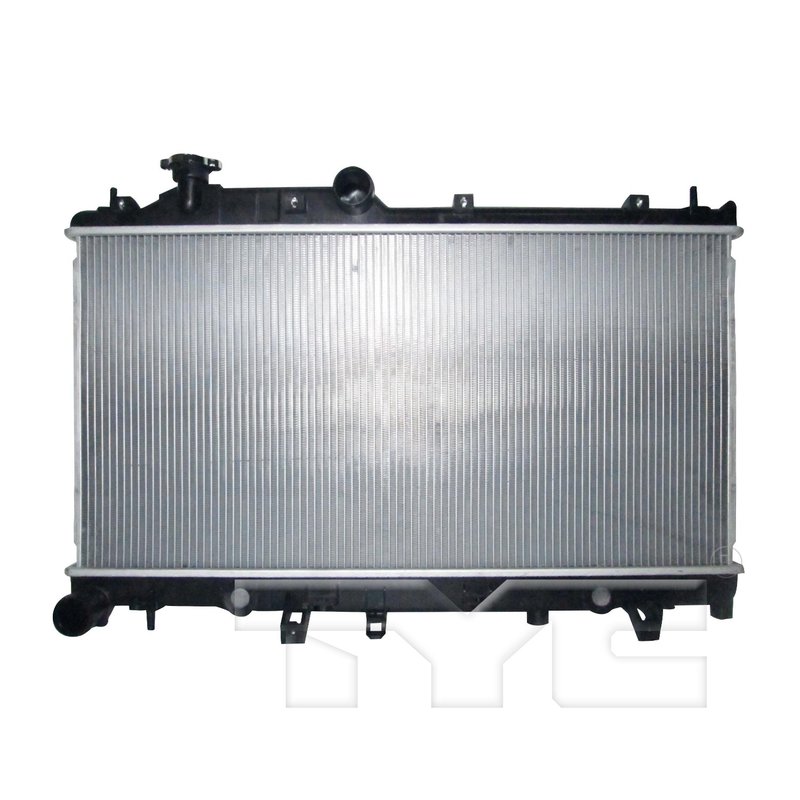

TYC 13293 Radiator

Overview of TYC Radiator 13293 for Subaru Legacy and Outback

The TYC Radiator 13293 is engineered specifically for Subaru Legacy and Outback models, providing reliable cooling performance. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from durable aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Downflow flow configuration optimized for Subaru Legacy and Outback cooling systems
• Core dimensions: 27.04 inches height, 13.31 inches length, and 0.63 inches thickness
• Hose clamp inlet and outlet connections with 1.57-inch diameter for secure fitment
• Single-row tube design with 82 tubes and 83 fin rows for efficient airflow
• Compatible with Subaru Legacy and Outback vehicles requiring part number 13293

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. Radiators in this line, including part number 13293, feature robust aluminum cores and integrated transmission oil coolers where applicable. This ensures compatibility with specific vehicle cooling requirements, such as those found in Subaru Legacy and Outback models, while maintaining durability and thermal efficiency.

Technical Specifications and Features

This radiator features a 1.56x28.21 inch top and bottom header design, supporting a downflow configuration that directs coolant efficiently through the core. The core includes 12 tubes every 4 inches, with a total of 82 tubes and 83 fin rows, each fin measuring 0.25 inches in wave height and spaced at a 1.9-inch pitch. The transmission oil cooler uses plate oil cooler technology with tube fitting inlet and outlet diameters of 0.39 inches, ensuring proper transmission fluid cooling. Both inlet and outlet connections utilize hose clamps with a 1.57-inch diameter, facilitating secure installation.

Common Applications and Problem Resolution

• Replaces faulty or leaking radiators in Subaru Legacy and Outback vehicles
• Addresses overheating issues caused by inefficient cooling systems
• Resolves transmission fluid overheating with integrated plate oil cooler
• Improves coolant flow and heat dissipation in aging or damaged radiators
• Supports engine temperature regulation to prevent engine damage

Installation Notes and Tips

Ensure compatibility by verifying the part number 13293 matches your Subaru Legacy or Outback model year and engine configuration. The radiator features hose clamp inlet and outlet connections, so use appropriate clamps and hoses sized at 1.57 inches diameter. Handle the aluminum core carefully to avoid damage during installation. Properly bleed the cooling system after installation to remove air pockets and ensure optimal performance.

Quality Assurance and Warranty

TYC Radiator 13293 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are designed for long service life. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
