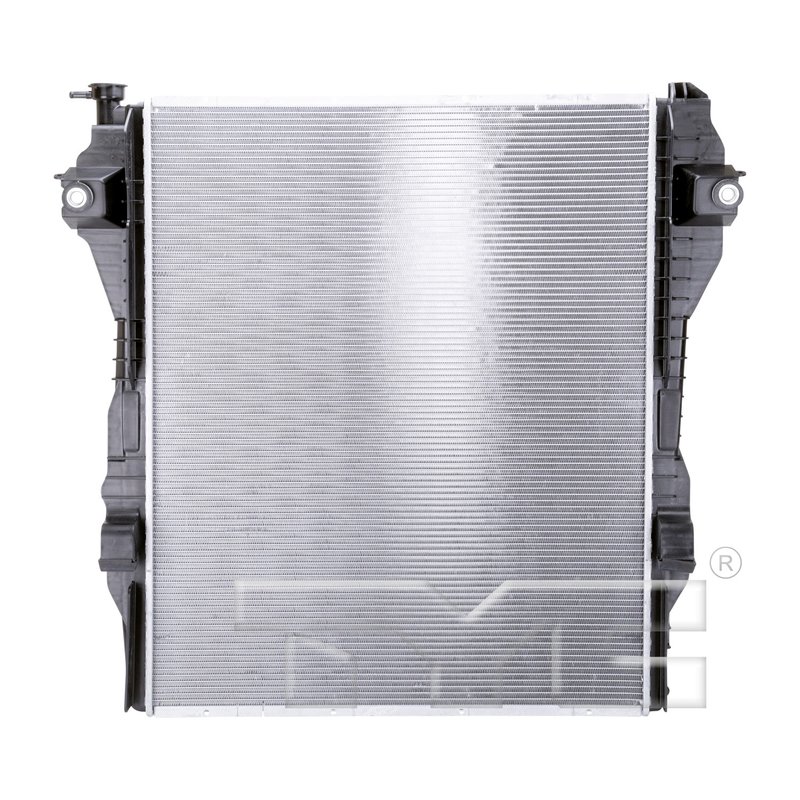

TYC 13296 Radiator

Reliable Cooling Solution for Dodge Ram 2500 and 3500

The TYC Radiator part number 13296 is engineered to provide efficient engine cooling for Dodge Ram 2500 and Ram 3500 models. Designed with durable aluminum core material, this radiator supports optimal heat dissipation to maintain engine performance under demanding conditions.

• Core Material: Aluminum for effective heat transfer
• Core Dimensions: 32.27 inches height, 26.69 inches length, 1.57 inches thickness
• Flow Configuration: Crossflow design for improved coolant circulation
• Connection Types: Hose clamp inlet and outlet with 1.81-inch diameter
• Fin Count: 78 fins every 4 inches with 0.25-inch fin wave height
• Tube Count: 98 total tubes with 12 tubes every 4 inches
• Headers: Top and bottom headers sized 2.6 by 33.46 inches
• Single row core construction

About the TYC Radiator Product Line

The TYC Radiator line focuses on delivering reliable cooling components that meet or exceed OEM specifications. This product line emphasizes quality core materials and precise manufacturing tolerances to ensure compatibility and durability. The TYC Radiator 13296 is part of this line, offering a direct replacement radiator designed specifically for Dodge Ram 2500 and 3500 trucks.

Technical Details and Performance

This radiator features a crossflow flow configuration that enhances coolant flow efficiency across the aluminum core. The single-row core with 98 tubes and 78 fins per 4 inches provides a balance of cooling surface area and airflow. Both inlet and outlet connections use hose clamps with a 1.81-inch diameter, facilitating straightforward installation and secure hose attachment. The fin wave pitch of 2.6 inches and fin wave height of 0.25 inches contribute to effective heat dissipation while maintaining structural integrity.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Dodge Ram 2500 and 3500
• Solves overheating issues caused by clogged or inefficient cooling cores
• Addresses coolant flow restrictions due to bent or corroded tubes
• Restores proper engine temperature regulation for heavy-duty towing and hauling
• Prevents engine damage from inadequate cooling system performance

Installation Notes and Tips

Ensure the radiator hoses match the 1.81-inch diameter inlet and outlet connections for proper fit. The hose clamp connection type requires secure tightening to prevent leaks. Verify compatibility with your specific Dodge Ram 2500 or 3500 model year before installation. Proper coolant flushing and system bleeding are recommended after installation to maintain optimal cooling system function.

Quality Assurance and Warranty

The TYC Radiator 13296 is manufactured to meet industry standards for durability and performance. Constructed with an aluminum core, it offers corrosion resistance and long service life. While specific warranty details are not provided, TYC products typically adhere to quality control processes to ensure reliable operation in demanding automotive environments.
