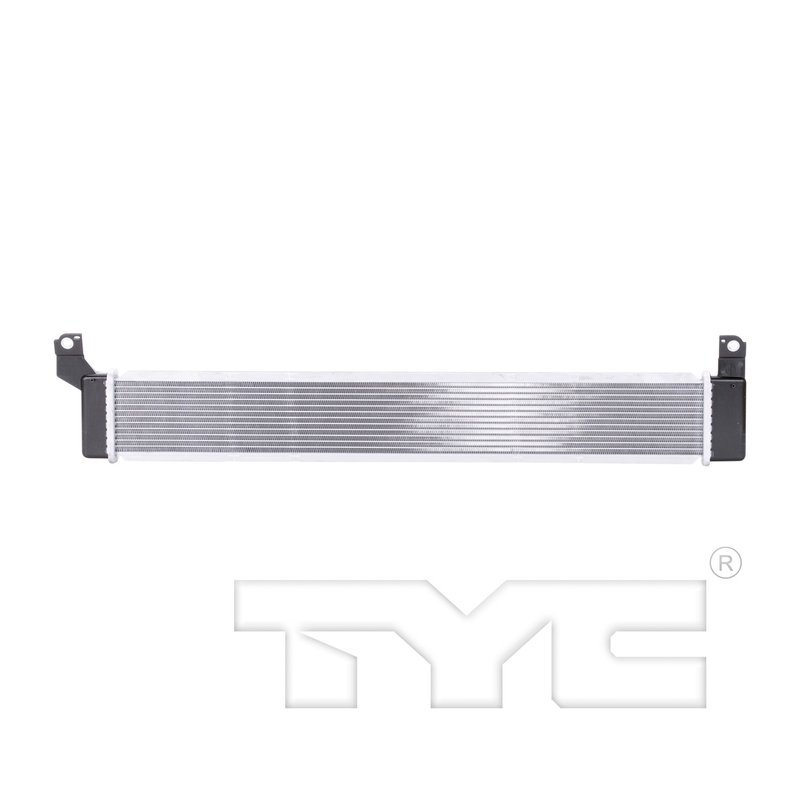

TYC 13300 Drive Motor Inverter Cooler

Overview of the TYC Drive Motor Inverter Cooler 13300

The TYC Drive Motor Inverter Cooler 13300 is engineered for reliable cooling performance in select Toyota vehicles. Designed specifically for the Toyota Avalon and Camry, this component helps maintain optimal inverter temperatures to support efficient vehicle operation.

• Core material constructed from durable aluminum for effective heat dissipation
• Plastic tank material designed for corrosion resistance and lightweight durability
• Core dimensions: 26.38 inches length, 4.06 inches height, and 1.02 inches thickness
• Crossflow design with a single row of tubes for efficient coolant flow
• Inlet and outlet diameters both measure 0.68 inches with hose clamp fitting design
• Tube width and height measure 1.023 by 0.055 inches, optimizing coolant passage
• Fin height of 0.21 inches to enhance heat exchange

Technical Details and Specifications

The TYC 13300 Drive Motor Inverter Cooler features an aluminum core that provides excellent thermal conductivity, essential for maintaining inverter temperatures within safe operating limits. The plastic tanks reduce weight and resist corrosion, extending the component's service life. Its crossflow configuration allows coolant to pass efficiently through a single row of tubes, maximizing heat transfer while minimizing pressure drop. Both inlet and outlet ports are designed with hose clamp fittings, ensuring secure and leak-free connections. The precise core dimensions and fin height contribute to consistent cooling performance tailored for Toyota Avalon and Camry models.

Compatible Vehicles and Application

This inverter cooler is compatible with the following Toyota models:

• Toyota Avalon
• Toyota Camry

It is specifically designed to support the drive motor inverter cooling system, which is critical for hybrid and electric vehicle operation.

Common Issues Addressed by the Drive Motor Inverter Cooler

• Overheating of the inverter during extended driving or high load conditions
• Reduced inverter efficiency due to inadequate cooling
• Potential inverter damage caused by coolant leaks or blockages
• Decreased vehicle performance linked to inverter thermal management failures
• Premature wear of inverter components from excessive heat exposure

Installation Notes and Tips

When installing the TYC 13300 Drive Motor Inverter Cooler, ensure all hose clamp fittings are securely tightened to prevent leaks. Verify that the coolant flow direction matches the crossflow design specifications. Inspect the surrounding components for any signs of wear or damage before installation. It is recommended to replace coolant and flush the system to maintain optimal performance. Professional installation is advised to ensure proper fitment and function within Toyota Avalon and Camry models.

Quality Assurance and Warranty

TYC manufactures the 13300 Drive Motor Inverter Cooler to meet or exceed OEM standards for durability and performance. The aluminum core and plastic tank materials are selected for longevity and resistance to corrosion. This part is backed by TYC's quality assurance processes, providing confidence in its reliability. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
