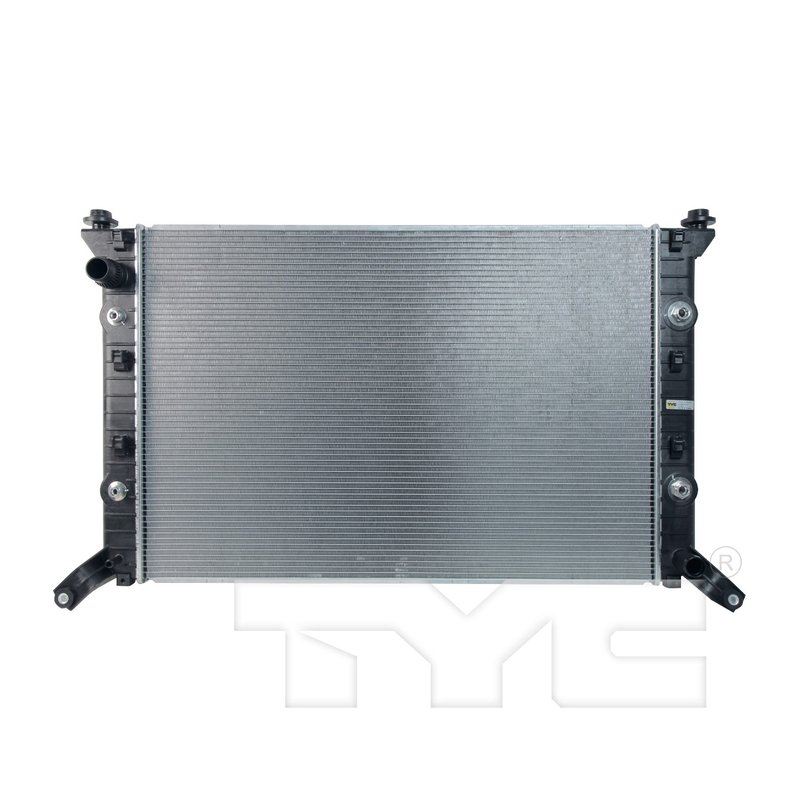

TYC 13301 Radiator

Overview of TYC Radiator 13301 for Chevrolet and GMC Trucks

The TYC Radiator 13301 is engineered for reliable cooling performance in heavy-duty Chevrolet and GMC trucks. Designed specifically for models like the Silverado 2500 HD, Silverado 3500 HD, Sierra 2500 HD, and Sierra 3500 HD, this radiator supports optimal engine and transmission temperatures under demanding conditions.

• Core constructed from durable aluminum for efficient heat dissipation
• Includes integrated plate-type engine and transmission oil coolers
• Crossflow design with a single row core for balanced cooling
• Quick connect fittings for engine and transmission oil cooler inlets and outlets
• Hose clamp inlet and quick connect spring lock outlet for coolant connections
• Core dimensions: 23.13" height, 34.02" length, 0.87" thickness
• Fin count of 73 every 4 inches with 0.31" fin wave height for enhanced airflow

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering reliable cooling solutions tailored to specific vehicle applications. This radiator model 13301 integrates both engine and transmission oil coolers using plate-type coolers, which are designed to maintain optimal fluid temperatures and improve overall vehicle performance. The use of aluminum core material and crossflow configuration aligns with TYC's approach to efficient heat exchange and durability.

Technical Description and Features

This radiator features a crossflow core design with a single row, measuring 23.13 inches in height and 34.02 inches in length, providing a substantial cooling surface area. The aluminum core enhances heat transfer while maintaining lightweight construction. Both engine and transmission oil coolers are included, utilizing plate-type coolers with quick connect inlet and outlet fittings sized at 0.37 inches (9.5 mm), facilitating straightforward installation and maintenance. The radiator’s inlet and outlet connections for coolant are designed with a hose clamp inlet (1.30 inches diameter) and a quick connect spring lock outlet (1.54 inches diameter), ensuring secure and leak-resistant connections. The fin count and wave pitch optimize airflow through the radiator, supporting effective heat dissipation during heavy-duty operation.

Applications and Problem Solving

• Replaces failing or leaking radiators in Chevrolet Silverado 2500 HD and 3500 HD models
• Addresses overheating issues caused by inefficient engine or transmission oil cooling
• Restores proper coolant flow and heat exchange in GMC Sierra 2500 HD and 3500 HD trucks
• Solves problems related to damaged or corroded radiator cores
• Improves cooling system reliability for trucks used in towing or heavy load conditions

Installation Notes and Tips

• Ensure compatibility with Chevrolet Silverado and GMC Sierra heavy-duty models before installation
• Use proper tools for quick connect fittings to avoid damage during removal or installation
• Inspect and replace all related hoses and clamps to prevent leaks
• Flush the cooling system to remove debris before installing the new radiator
• Check transmission and engine oil cooler connections for secure fitment

Quality Assurance and Warranty

TYC Radiator 13301 is manufactured to meet or exceed OEM specifications for fit, form, and function. The aluminum core and integrated plate oil coolers are designed for durability and consistent performance. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
