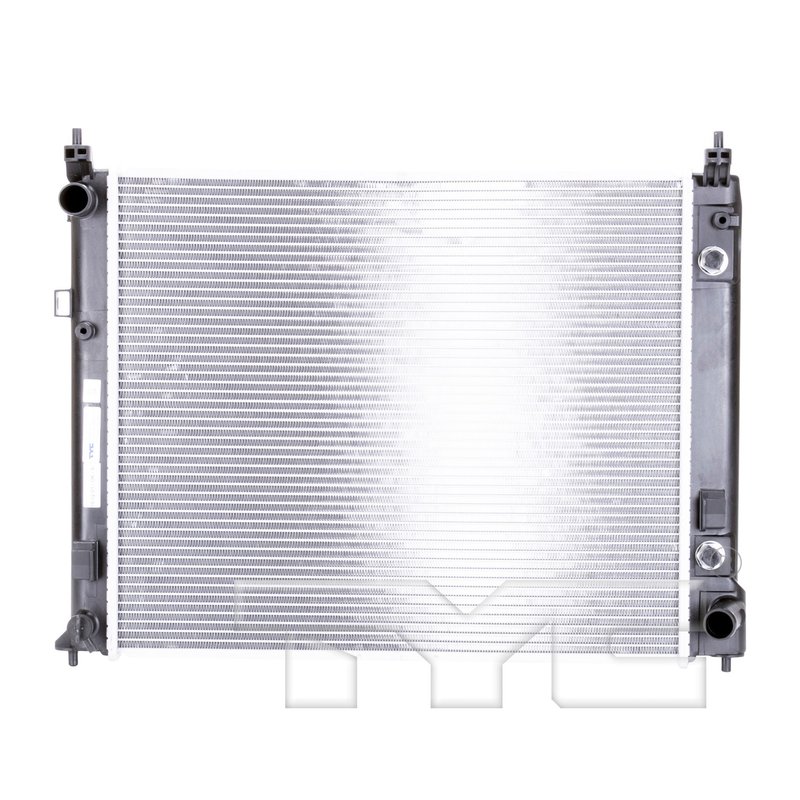

TYC 13303 Radiator

Overview of the TYC Radiator for Nissan Versa and Versa Note

The TYC Radiator part number 13303 is designed specifically for Nissan Versa and Versa Note models. This radiator features a durable aluminum core and includes a transmission oil cooler, making it a reliable cooling solution for your vehicle's engine and transmission system.

• Core material: Aluminum for efficient heat dissipation
• Includes plate-type transmission oil cooler
• Crossflow flow configuration for optimal coolant circulation
• Core dimensions: 16.59" height, 20.08" length, 1.02" thickness
• Inlet and outlet hose clamp connections with 1.10" diameter
• Includes pipe accessory (M14 x 1.0 x 2) for installation
• Single-row tube design with 50 tubes and 85 fins per 4 inches

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line emphasizes durable aluminum cores and integrated transmission oil coolers where applicable, providing a comprehensive cooling solution. The TYC Radiator 13303 exemplifies this approach by combining a robust core with a plate-type transmission oil cooler, tailored for Nissan Versa and Versa Note vehicles.

Technical Description and Features

This radiator features a crossflow design that enhances coolant flow efficiency across the core. The aluminum core measures 16.59 inches in height, 20.08 inches in length, and 1.02 inches in thickness, providing a balance of cooling surface area and compact size. It includes 50 tubes arranged in a single row and 85 fins per 4 inches, which contribute to effective heat exchange. The top and bottom headers both measure 1.96 by 17.77 inches, supporting structural integrity and fluid distribution.

The radiator also incorporates a plate-type transmission oil cooler with M14 x 1 inlet and outlet adapters, facilitating transmission fluid cooling without the need for additional components. Hose clamp connections with 1.10-inch diameters on both inlet and outlet ports ensure secure and leak-free installation. Included accessories such as the M14 x 1.0 x 2 pipe simplify the installation process.

Common Applications and Problem Solving

• Replaces faulty or leaking radiator in Nissan Versa and Versa Note
• Addresses overheating issues caused by inefficient cooling
• Restores proper transmission fluid temperature regulation
• Solves coolant leaks due to damaged or corroded radiator cores
• Improves engine performance by maintaining optimal operating temperatures

Installation Notes and Tips

• Ensure compatibility with Nissan Versa or Versa Note before installation
• Use proper hose clamps for inlet and outlet connections to prevent leaks
• Inspect and replace coolant hoses if worn or damaged during installation
• Flush the cooling system to remove debris before installing the new radiator
• Check transmission fluid levels after installation due to integrated oil cooler

Quality Assurance and Warranty

The TYC Radiator 13303 is manufactured to meet OEM standards for fit, form, and function. The aluminum core construction provides corrosion resistance and durability. This radiator includes a transmission oil cooler designed to maintain transmission fluid temperature within manufacturer specifications. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship.
