TYC 13317 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

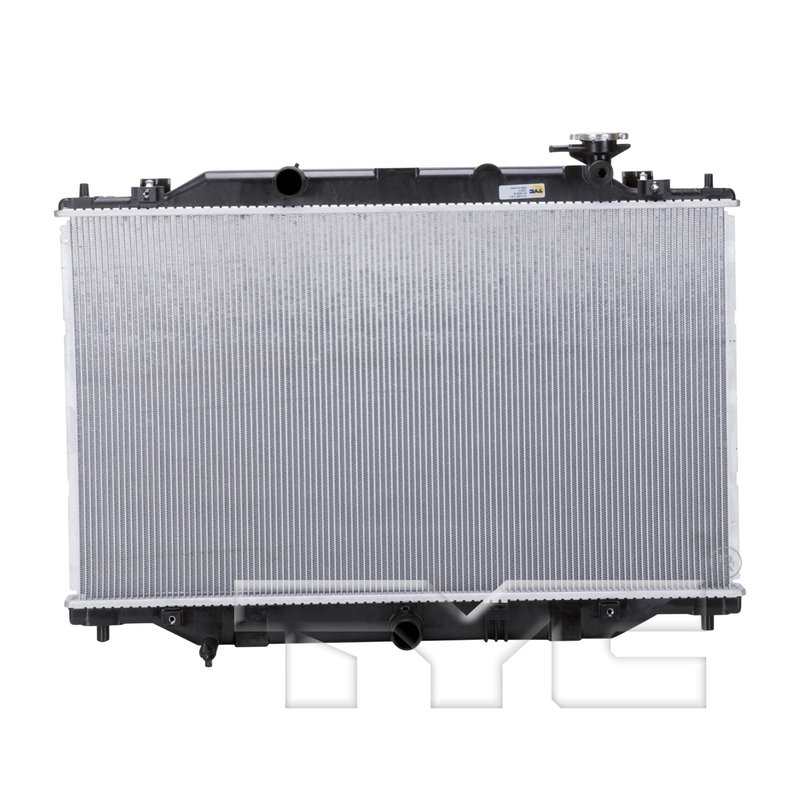

TYC 13317 Radiator

Brand TYC 13317
Core Material Aluminum
Transmission Oil Cooler Included No
Engine Oil Cooler Included No
Bottom Header 2.02x29.88
Core Height (in) 28.6
Core Length (in) 16.73
Core Thickness (in) 0.63
Fin Count (every 4") 78
Fin Wave Height (in) 0.20
Find Wave Pitch 2.6
Flow Configuration Downflow
Inlet Connection Type Hose clamp
Inlet Diameter (in) 1.32
No. Of Rows 1
Outlet Connection Type Hose clamp
Outlet Diameter (in) 1.32
Top Header 2.02x29.88
Total Fin Row Count 112
Total Tube Count 111
Tube Count (every 4") 16
Tube Width X Height 16x1.5
Product line TYC Radiator
Fits Mazda · 13 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Downflow design. Supports steady coolant circulation through the radiator.

Hose clamp connections. Simplifies hose attachment for a secure fit.

Cross-references APDI 8013317, DENSO 221-9300 and Mazda PE01-15-200A for the same application. See all 6.

$136.49Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $136.49
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator for Mazda CX-5

The TYC Radiator 13317 is a direct-fit cooling replacement for 2013-2016 Mazda CX-5 models. Built with an aluminum core and downflow flow configuration, it is specified for hose clamp inlet and outlet connections to match the listed application.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Downflow radiator design
  • Core dimensions: 28.6 in. height, 16.73 in. length, 0.63 in. thickness
  • 1-row core layout with 111 total tubes and 112 total fin rows
  • 1.32 in. inlet and outlet diameters with hose clamp connections
  • No engine oil cooler included
  • No transmission oil cooler included

Detailed Description

TYC Radiator 13317 is engineered for the 2013-2016 Mazda CX-5 and cross-references OE and aftermarket numbers including DENSO 221-9300 and Spectra Premium CU13317 for the same application. The radiator uses an aluminum core with a downflow configuration, plus matched top and bottom headers sized at 2.02 x 29.88 in. for the listed fitment. For shoppers searching for a Mazda CX-5 radiator replacement, this part number 13317 provides the core specifications needed for a direct replacement search.

Common Problems This Part Can Address

  • Coolant leaks from a damaged or corroded radiator
  • Overheating caused by restricted coolant flow
  • Cracked tanks or weakened core seams
  • Poor heat dissipation from an aging radiator core
  • Fitment issues when replacing a worn Mazda CX-5 radiator

Installation Notes and Tips

Verify inlet and outlet hose diameter, mounting points, and overall core dimensions before installation. Drain the cooling system, inspect hoses and clamps for wear, and flush the system if contamination is present. This radiator is listed for 2013-2016 Mazda CX-5 applications, and part number 13317 should be matched to the vehicle’s cooling system layout before removal of the original unit.

Quality Assurance

TYC manufactures replacement cooling components with application-specific fitment data and OE-style specifications. This radiator is listed for the confirmed Mazda CX-5 fitment shown above and is built to the stated core and connection dimensions.

Related reading

This part fits 13 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeTransmissionLitersCylindersPositionNotes
2016MazdaCX-5AWDAutomatic2.5LL4N/ATYC Radiator
2016MazdaCX-5FWDAutomatic2.5LL4N/ATYC Radiator
2016MazdaCX-5—Manual2.0LL4N/ATYC Radiator
2016MazdaCX-5—Automatic2.0LL4N/ATYC Radiator
2016MazdaCX-5—Manual2.5LL4N/ATYC Radiator
2015MazdaCX-5—Manual2.5LL4N/ATYC Radiator
2015MazdaCX-5—Manual2.0LL4N/ATYC Radiator
2015MazdaCX-5—Automatic2.0LL4N/ATYC Radiator
2014MazdaCX-5—Manual2.0LL4N/ATYC Radiator
2014MazdaCX-5—Automatic2.0LL4N/ATYC Radiator
2014MazdaCX-5—Automatic2.5LL4N/ATYC Radiator
2013MazdaCX-5—Manual2.0LL4N/ATYC Radiator
2013MazdaCX-5—Automatic2.0LL4N/ATYC Radiator
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8013317DENSO — 221-9300Mazda — PE01-15-200AMazda — PE01-15-200BPartslink — MA3010235Spectra Premium — CU13317
