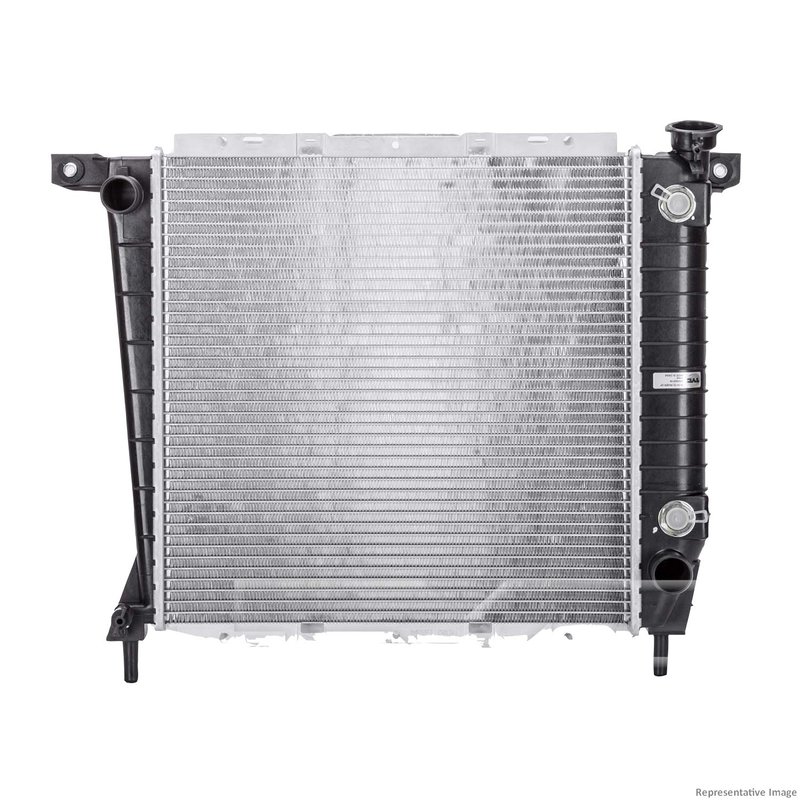

TYC 13339 Radiator

Overview of the TYC Radiator 13339 for Ford Super Duty Trucks

The TYC Radiator 13339 is engineered specifically for Ford F-250 Super Duty and F-350 Super Duty models. Designed to maintain optimal engine temperature, this radiator features a durable aluminum core and precise flow configuration to support heavy-duty performance.

• Core Material: Aluminum for efficient heat dissipation
• Core Dimensions: 20.51 inches height, 39.29 inches length, 1.65 inches thickness
• Flow Configuration: Crossflow design for improved coolant circulation
• Connection Types: Hose clamp inlet and quick connect (spring lock) outlet
• Fin Count: 78 fins every 4 inches with a fin wave height of 0.25 inches
• Tube Count: 62 total tubes with 12 tubes every 4 inches
• Compatible with Ford F-250 Super Duty and F-350 Super Duty

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering reliable cooling solutions with quality materials and precise engineering. This line emphasizes aluminum core construction and optimized fin and tube configurations to ensure effective heat exchange. The TYC Radiator 13339 exemplifies these standards, providing a direct replacement radiator designed to meet the cooling demands of Ford Super Duty trucks.

Technical Description and Features

This radiator features a single-row core with a crossflow design, allowing coolant to flow horizontally through the core for efficient heat transfer. The aluminum core measures 20.51 inches in height, 39.29 inches in length, and 1.65 inches in thickness, providing a robust surface area for cooling. The fin count of 78 every 4 inches and a fin wave pitch of 2.6 inches contribute to enhanced airflow and heat dissipation. The inlet and outlet connections are designed for secure attachment, with a 1.02-inch diameter hose clamp inlet and a quick connect spring lock outlet, ensuring compatibility with factory cooling system fittings.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators in Ford F-250 Super Duty and F-350 Super Duty trucks
• Resolves engine overheating caused by inefficient cooling
• Addresses coolant leaks due to corrosion or physical damage
• Improves cooling system performance after radiator core clogging or blockage
• Supports engine longevity by maintaining proper operating temperatures

Installation Notes and Tips

• Ensure compatibility with Ford F-250 Super Duty and F-350 Super Duty models before installation
• Inspect and replace any worn or damaged hoses and clamps during installation
• Flush the cooling system to remove debris and contaminants prior to installing the new radiator
• Verify secure connections at the hose clamp inlet and quick connect outlet to prevent leaks
• Follow manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty

The TYC Radiator 13339 is manufactured to meet OEM standards for fit, form, and function. Constructed with a corrosion-resistant aluminum core and designed for durability, this radiator undergoes quality control testing to ensure reliable performance. Warranty coverage details should be confirmed with the product documentation or supplier.
