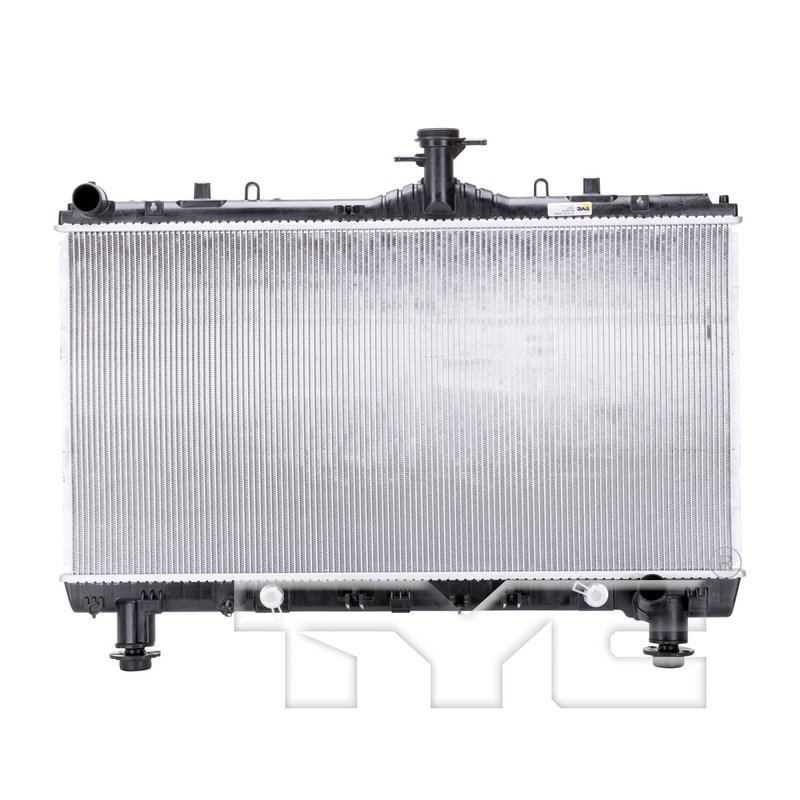

TYC 13341 Radiator
| Brand | TYC 13341 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.02x31.37 |
| Core Height (in) | 30.14 |
| Core Length (in) | 15.67 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 81 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.5 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.34 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick connect |
| Top Header | 2.02x31.37 |
| Total Fin Row Count | 118 |
| Total Tube Count | 117 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 26x1.5 |
| Product line | TYC Radiator |
| Fits | Chevrolet · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Built with a plate-style cooler for added fluid management.
Downflow design. Supports steady coolant flow through the radiator.
Cross-references General Motors 22786864, General Motors 22786865 and Partslink GM3010554 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for 2012-2015 Chevrolet Camaro
This TYC Radiator, part number 13341, is a direct-fit cooling replacement for 2012-2015 Chevrolet Camaro applications. It combines an aluminum core with an integrated transmission oil cooler to support engine cooling and automatic transmission fluid temperature control in one assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Integrated plate-style transmission oil cooler included
- Downflow flow configuration
- Hose clamp inlet and outlet connections
- 1-row core design with 30.14 in core height, 15.67 in core length, and 1.02 in core thickness
- Core tube and fin layout engineered for OE-style fitment
- Fits 2012-2015 Chevrolet Camaro, N/A
Product Details
TYC Radiator part number 13341 is built for the Chevrolet Camaro cooling system layout used from 2012 through 2015. The aluminum core, downflow design, and plate oil cooler help maintain stable operating temperatures while matching the vehicle’s radiator and transmission cooler connections. This unit uses 1.34 in inlet and outlet hose clamp connections, plus quick-connect transmission oil cooler ports with 0.37 in inlet and outlet diameters.
TYC Radiator is the product line for OE-style cooling components from TYC, focused on replacement radiators that follow factory-style dimensions and connection points. This part cross-references Spectra Premium CU13341 for the same application.
Common Problems This Radiator Can Address
- Engine overheating from a leaking or restricted radiator
- Transmission fluid temperature issues caused by a failing cooler circuit
- Coolant loss from cracked tanks or damaged core sections
- Poor heat dissipation from clogged internal passages
- Fitment problems when replacing a damaged Camaro radiator
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler port style before installation. Inspect hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination is present. Confirm that the radiator mounts and line routing match the 2012-2015 Chevrolet Camaro configuration before final assembly.
Quality Assurance
TYC manufactures replacement cooling components to OE-style specifications for fit and function. Part number 13341 is built to match the listed Camaro application and cooling-system connection points for straightforward replacement service.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2015 | Chevrolet | Camaro | LS | Coupe | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2015 | Chevrolet | Camaro | LT | Convertible | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2015 | Chevrolet | Camaro | LT | Coupe | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2014 | Chevrolet | Camaro | LS | Coupe | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2014 | Chevrolet | Camaro | LT | Coupe | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2014 | Chevrolet | Camaro | LT | Convertible | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2013 | Chevrolet | Camaro | LT | Convertible | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2013 | Chevrolet | Camaro | LT | Coupe | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2013 | Chevrolet | Camaro | LS | Coupe | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2012 | Chevrolet | Camaro | LT | Convertible | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2012 | Chevrolet | Camaro | LT | Coupe | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2012 | Chevrolet | Camaro | LS | Coupe | Automatic | 3.6L | V6 | N/A | TYC Radiator |
