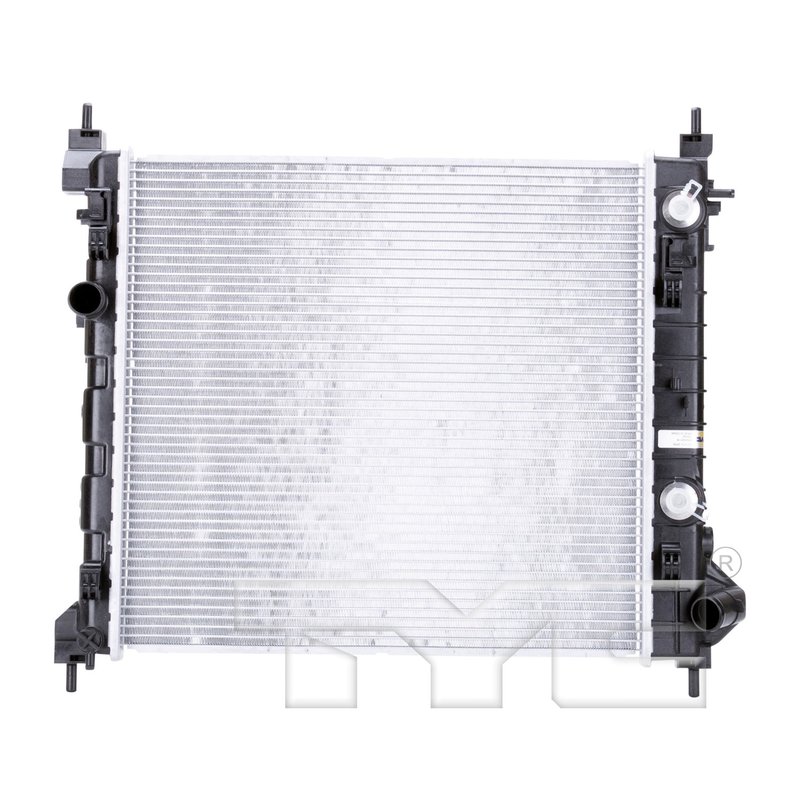

TYC 13342 Radiator
| Brand | TYC 13342 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.05x17.74 |
| Core Height (in) | 16.59 |
| Core Length (in) | 17.72 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 92 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.2 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.20 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.20 |
| Toc Distance (in) | 10.00 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick connect |
| Top Header | 2.05x17.74 |
| Total Fin Row Count | 51 |
| Total Tube Count | 50 |
| Tube Count (every 4") | 12 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Chevrolet · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Crossflow design. Engineered for efficient coolant flow through the radiator.
Cross-references APDI 8013342, DENSO 221-9318 and General Motors 95423939 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Chevrolet Spark and Spark EV
This TYC Radiator 13342 is a direct-fit cooling replacement for select Chevrolet Spark and Chevrolet Spark EV applications. Built with an aluminum core and a crossflow design, it includes an integrated transmission oil cooler to support both engine cooling and automatic transmission fluid cooling in one unit.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow flow configuration
- Integrated plate-style transmission oil cooler included
- Hose clamp inlet and outlet connections
- Single-row core design with 16.59 in. core height and 17.72 in. core length
- 1.20 in. inlet and outlet diameters
- OE-style replacement for select Chevrolet Spark and Spark EV models
Product Details
TYC Radiator 13342 is engineered around the listed core dimensions, tube layout, and cooler connections to match the cooling system requirements of 2013-2015 Chevrolet Spark and 2014 Chevrolet Spark EV vehicles. The radiator uses an aluminum core with a 1-row construction, 50 total tubes, and a plate oil cooler integrated into the assembly. Transmission cooler ports use quick-connect fittings with 0.37 in. inlet and outlet diameters, while the main radiator connections use hose clamp-style inlet and outlet fittings.
TYC Radiator is a product line focused on replacement cooling components built to match vehicle-specific fitment and connection styles. For shoppers searching for a 2013 Chevrolet Spark radiator replacement, a 2014 Chevrolet Spark EV radiator, or a 2015 Chevrolet Spark cooling system part, part number 13342 provides the listed application coverage and hardware interface details needed for a proper match.
This part cross-references DENSO 221-9318 for the same application.
What It Helps Address
- Overheating caused by a failing or leaking radiator
- Transmission temperature concerns tied to a damaged cooler circuit
- Coolant loss from cracked tanks, tubes, or header areas
- Poor heat dissipation from a restricted or corroded core
- Cooling system service needs on Chevrolet Spark and Spark EV models
Installation Notes and Tips
Verify the inlet and outlet diameters, transmission cooler connection style, and core dimensions before installation. Drain the cooling system, transfer any required sensors or fittings from the original unit if applicable, and inspect hoses, clamps, and coolant condition at the same time. Confirm fitment against the vehicle’s year, model, and cooling configuration before final assembly.
Quality Assurance
TYC Radiator 13342 is built as a vehicle-specific replacement radiator for the listed Chevrolet applications and is identified by multiple interchange references, including APDI 8013342, General Motors 95423939 and 95942346, Partslink GM3010561, and Spectra Premium CU13342.
| Year | Make | Model | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2015 | Chevrolet | Spark | Automatic CVT | 1.2L | L4 | — | N/A | TYC Radiator |
| 2014 | Chevrolet | Spark | Automatic CVT | 1.2L | L4 | — | N/A | TYC Radiator |
| 2014 | Chevrolet | Spark EV | Automatic | — | — | ELECTRIC | N/A | TYC Radiator |
| 2013 | Chevrolet | Spark | Automatic | 1.2L | L4 | — | N/A | TYC Radiator |
