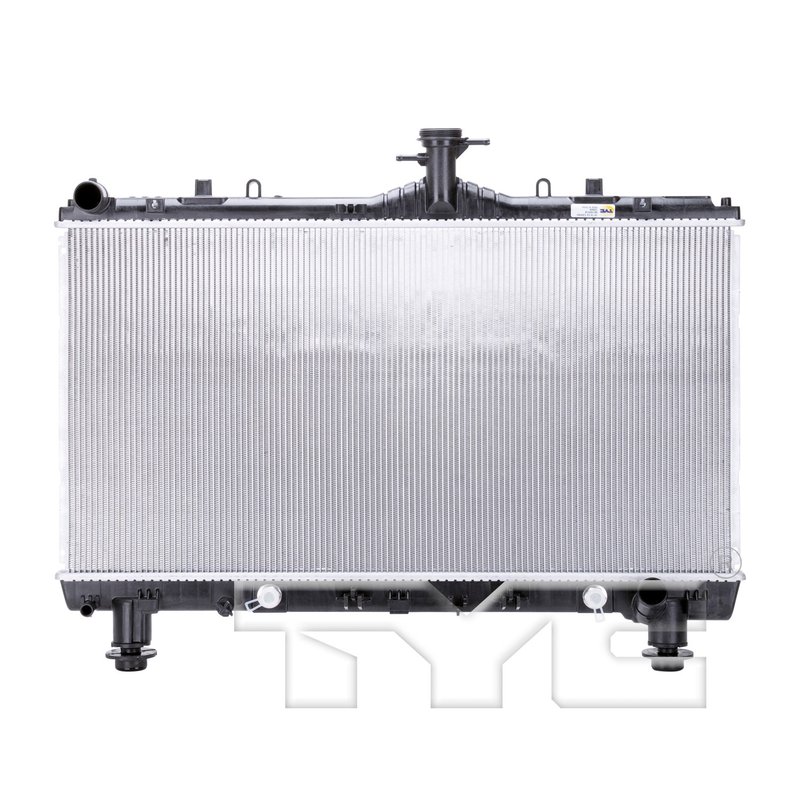

TYC 13345 Radiator - Primary
| Brand | TYC 13345 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.02x31.37 |
| Core Height (in) | 30.14 |
| Core Length (in) | 15.67 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 81 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.5 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.34 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick connect |
| Top Header | 2.02x31.37 |
| Total Fin Row Count | 118 |
| Total Tube Count | 117 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 26x1.5 |
| Product line | TYC Radiator |
| Fits | Chevrolet · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Built with a plate-style cooler for added fluid temperature control.
Downflow design. Supports steady coolant circulation through a single-row core.
Cross-references APDI 8013345, DPI (DataPoint Inc) 13344 and General Motors 22762595 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Camaro Cooling Service
The TYC Radiator 13345 is an aluminum replacement radiator built for select Chevrolet Camaro applications. It includes a transmission oil cooler with a plate-style design and uses downflow flow configuration for direct-fit cooling system service on 2012-2015 Camaro models.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow design with one-row core layout
- Transmission oil cooler included with plate oil cooler type
- Hose clamp inlet and outlet connections
- Core dimensions: 30.14 in. height, 15.67 in. length, 1.02 in. thickness
- Inlet and outlet diameter: 1.34 in.
- TYC Radiator 13345 for Chevrolet Camaro cooling system replacement
Product Details
TYC Radiator 13345 is engineered around the listed Camaro fitment and cooling-system dimensions, including a 26 x 1.5 tube width and height, 117 total tubes, and 118 total fin rows. The radiator uses aluminum core material and a downflow configuration to match the factory-style layout on 2012-2013 Chevrolet Camaro and 2014-2015 Chevrolet Camaro Primary applications. This part cross-references Spectra Premium CU13345 for the same application.
Common Cooling Issues It Can Address
- Leaking radiator tanks or core damage
- Restricted coolant flow from an aging radiator
- Transmission fluid temperature control concerns tied to the radiator cooler circuit
- Overheating caused by reduced heat dissipation
- Cracked or deteriorated hose connection points
Installation Notes and Tips
Verify the inlet and outlet diameters, transmission cooler connection style, and overall core dimensions before installation. Flush the cooling system, inspect hoses and clamps, and confirm the transmission cooler lines match the quick-connect fittings before final assembly. Fits 2012-2013 Chevrolet Camaro, N/A. Fits 2014-2015 Chevrolet Camaro, Primary.
Quality Assurance
TYC Radiator 13345 is built to match the specified application details for Camaro cooling-system replacement and interchange references from APDI, DPI, General Motors, Partslink, and Spectra Premium.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2015 | Chevrolet | Camaro | SS | Coupe | 6.2L | V8 | Primary | TYC Radiator |
| 2014 | Chevrolet | Camaro | SS | Coupe | 6.2L | V8 | Primary | TYC Radiator |
| 2013 | Chevrolet | Camaro | — | — | 6.2L | V8 | N/A | TYC Radiator |
| 2012 | Chevrolet | Camaro | — | — | 6.2L | V8 | N/A | TYC Radiator |
