Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

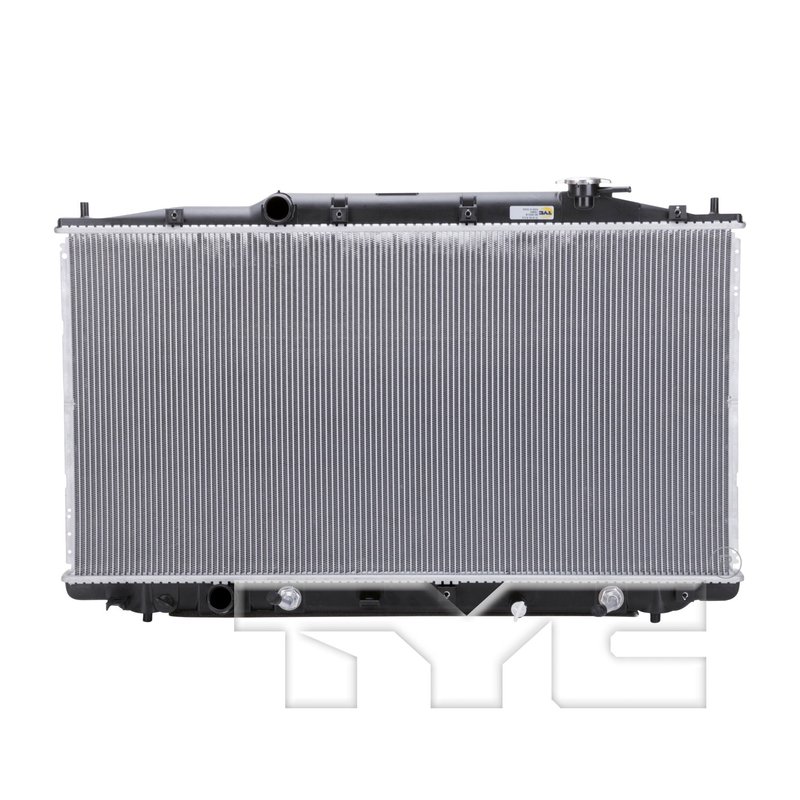

TYC 13384 Radiator
| Brand | TYC 13384 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.02x31.37 |
| Core Height (in) | 30.14 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.26 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.26 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.31 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.31 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.02x31.37 |
| Total Fin Row Count | 118 |
| Total Tube Count | 117 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 26x1.5 |
| Product line | TYC Radiator |
| Fits | Acura · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated fluid cooling in one radiator assembly.
Hose clamp connections. Simplifies attachment with a straightforward, secure fit.
Cross-references Acura 19010-R8A-A51, APDI 8012989 and Partslink AC3010152 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Acura RDX
The TYC Radiator 13384 is a direct-fit cooling replacement for 2013-2018 Acura RDX applications. Built with an aluminum core and a downflow design, it includes an integrated transmission oil cooler to support automatic transmission cooling in the same assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included with plate oil cooler design
- Hose clamp inlet and outlet connections
- Core dimensions: 30.14 in. height, 15.75 in. length, 1.02 in. thickness
- OE cross-reference support for Acura 19010-R8A-A51, APDI 8012989, Partslink AC3010152, and Spectra Premium CU2989
Detailed Description
TYC Radiator 13384 is engineered for Acura RDX cooling system service across 2013-2018 model years. The aluminum core, single-row construction, and plate-style transmission oil cooler are specified to match the vehicle’s radiator and transmission fluid cooling requirements. With hose clamp inlet and outlet connections measuring 1.26 in., this radiator is built around the factory-style layout used in Acura RDX cooling system replacement work.
TYC Radiator is the product line name for TYC cooling components, including radiators built for OE-style fitment and application-specific dimensions. For Acura RDX owners searching for a radiator replacement, Acura RDX radiator 2013-2018, or TYC 13384 radiator, this part provides the core measurements and cooler configuration needed for a proper service replacement.
This part cross-references Acura 19010-R8A-A51 and Spectra Premium CU2989 for the same application.
What It Helps Address
- Engine overheating caused by a failing radiator core
- Transmission fluid temperature control issues tied to a damaged cooler circuit
- Coolant leaks from worn radiator tanks or core damage
- Restricted coolant flow from internal radiator deterioration
- Cooling system service needs on 2013-2018 Acura RDX models
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet diameter, and transmission cooler line connection style before installation. Flush the cooling system and inspect hoses, clamps, and related seals during replacement. Confirm the vehicle uses the correct Acura RDX radiator configuration for the model year before final assembly.
Quality Assurance
TYC manufactures replacement cooling components with application-specific sizing and OE-style connection points. This radiator is built to match the listed Acura RDX fitment and cooling system layout.
Compatible With: Fits 2013-2018 Acura RDX, N/A.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Acura | RDX | 3.5L | V6 | N/A | TYC Radiator |
| 2017 | Acura | RDX | 3.5L | V6 | N/A | TYC Radiator |
| 2016 | Acura | RDX | 3.5L | V6 | N/A | TYC Radiator |
| 2015 | Acura | RDX | 3.5L | V6 | N/A | TYC Radiator |
| 2014 | Acura | RDX | 3.5L | V6 | N/A | TYC Radiator |
| 2013 | Acura | RDX | 3.5L | V6 | N/A | TYC Radiator |
