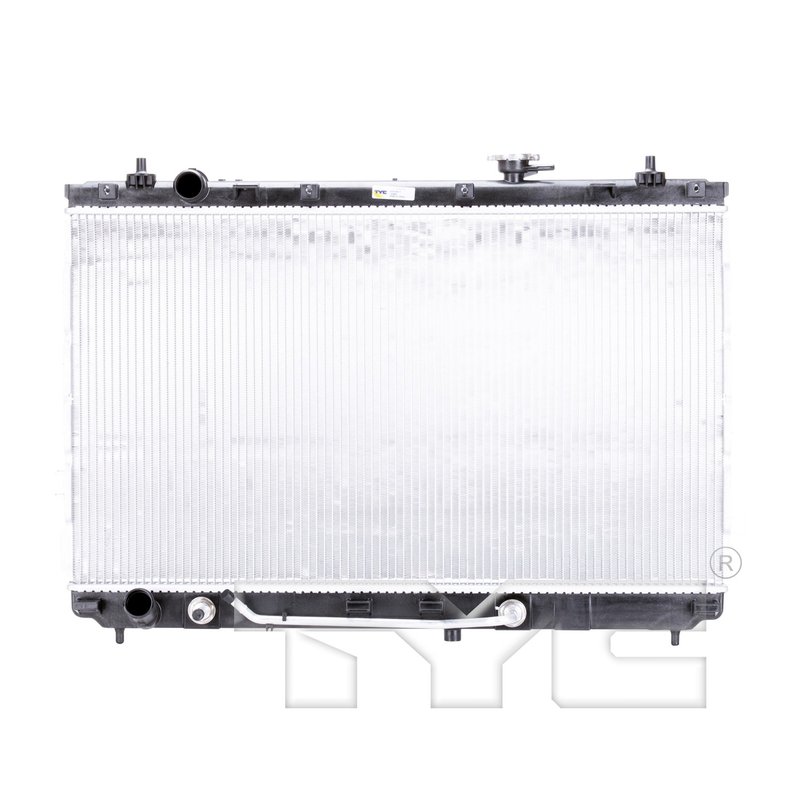

TYC 13393 Radiator

Overview of the TYC Radiator for Kia Sedona

The TYC Radiator part number 13393 is engineered specifically for Kia Sedona models, providing reliable cooling performance. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation and transmission longevity.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Downflow core design with 1-row tube configuration
• Hose clamp inlet and outlet connections with 1.38-inch diameter
• Core dimensions: 30.61 inches height, 17.32 inches length, and 0.71 inches thickness
• Fin count of 73 per 4 inches and total fin row count of 82 for optimized airflow
• Compatible with Kia Sedona models requiring part number 13393

Detailed Features of the TYC Radiator

This TYC Radiator features a robust aluminum core that ensures efficient heat transfer and durability. The downflow flow configuration promotes effective coolant circulation through the radiator core. It includes a plate-type transmission oil cooler with tube fittings for both inlet and outlet, measuring 0.39 inches in diameter, which helps maintain transmission fluid temperature. The radiator’s fin design, with 73 fins every 4 inches and a fin wave height of 0.31 inches, supports optimal cooling performance. Both the top and bottom headers measure 1.94 by 30.96 inches, providing structural integrity and fitment precision. Hose clamp connections on both inlet and outlet ports simplify installation and ensure secure hose attachment.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling solutions with quality materials and precise fitment. Radiators in this line, including part number 13393, are designed to meet or exceed OEM specifications for vehicles like the Kia Sedona. The inclusion of integrated transmission oil coolers in select models enhances the overall cooling system efficiency, supporting both engine and transmission performance.

Common Applications and Problem Solving

• Replaces leaking or damaged radiator cores in Kia Sedona vehicles
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission overheating by utilizing the built-in plate oil cooler
• Fixes coolant leaks from worn or corroded radiator components
• Improves engine cooling system reliability and prevents breakdowns

Installation Notes and Tips

• Ensure compatibility with Kia Sedona models requiring part number 13393 before installation
• Use proper hose clamps to secure inlet and outlet hoses to the 1.38-inch diameter ports
• Check transmission oil cooler connections for proper tube fitting engagement
• Flush the cooling system prior to installation to remove debris and contaminants
• Verify coolant levels and system pressure after installation to prevent leaks

Quality Assurance and Warranty

TYC Radiators are manufactured to meet industry standards for durability and performance. The part number 13393 undergoes quality control inspections to ensure fitment accuracy and material integrity. While specific warranty details may vary, TYC typically offers limited warranties covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms applicable to this radiator.
