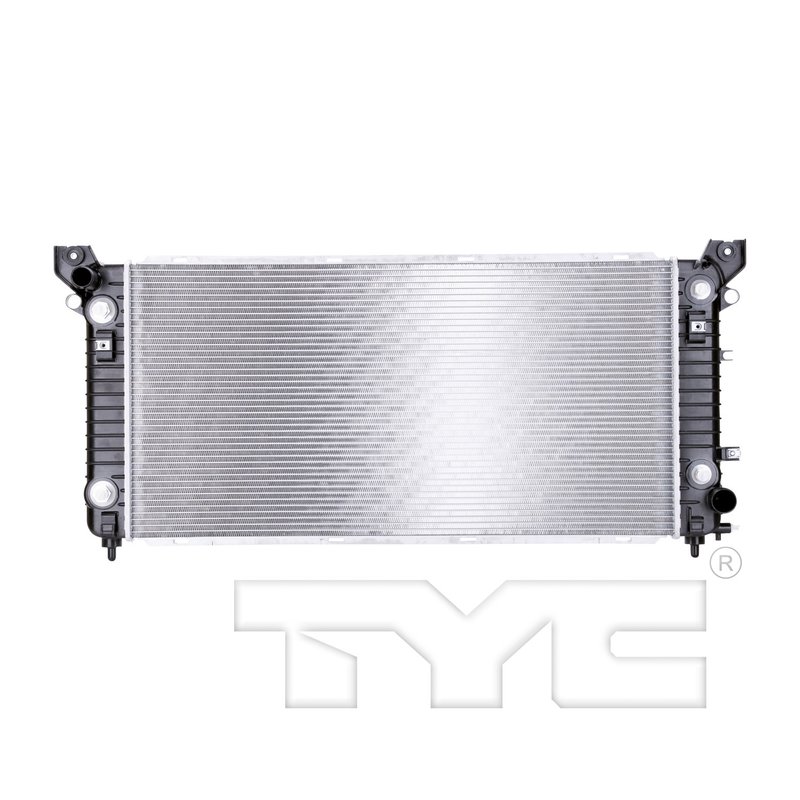

TYC 13396 Radiator
| Brand | TYC 13396 |
|---|---|
| Bottom Header | 2.85x17.69 |
| Core Height (in) | 17.15 |
| Core Length (in) | 34.02 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.87 |
| Engine Oil Cooler Included | Yes |
| Engine Oil Cooler Type | Plate Oil Cooler |
| Eoc Distance (in) | 11.50 |
| Eoc Inlet Diameter (in) | 0.37 |
| Eoc Inlet Diameter (mm) | 9.5 |
| Eoc Inlet Type | Quick Connect |
| Eoc Outlet Diameter (in) | 0.37 |
| Eoc Outlet Type | Quick Connect |
| Fin Count (every 4") | 75 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.7 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.57 |
| Toc Distance (in) | 11.50 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick Connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick Connect |
| Top Header | 2.26x17.69 |
| Total Fin Row Count | 46 |
| Total Tube Count | 45 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 11 |
| Tube Width X Height | 22x1.5 |
| Product line | TYC Radiator |
| Fits | Chevrolet and GMC · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Integrated coolers. Includes plate-style engine and transmission oil coolers.
Cross-references APDI 8013396, DENSO 221-9452 and General Motors 23126398 for the same application. See all 8.
TYC Radiator for Silverado 1500 and Sierra 1500
The TYC Radiator 13396 is a direct-fit cooling replacement for select 2014-2019 Chevrolet Silverado 1500 and GMC Sierra 1500 models without the tow package. Built with an aluminum core and integrated oil cooling, it supports engine temperature control and transmission fluid cooling in one assembly.
- Aluminum core construction for efficient heat transfer
- Crossflow design with 1-row core layout
- Engine oil cooler included with plate oil cooler design
- Transmission oil cooler included with plate oil cooler design
- Hose clamp inlet and outlet connections
- Quick-connect engine oil cooler and transmission oil cooler fittings
- Core dimensions: 17.15 in. height, 34.02 in. length, 0.87 in. thickness
- OE-style replacement for select GM truck applications
Product Details
TYC Radiator 13396 is engineered for vehicles that require a radiator with both engine oil and transmission oil cooler circuits. The crossflow aluminum core measures 34.02 inches long by 17.15 inches high and uses a single-row tube layout for efficient coolant flow. With hose clamp inlet and outlet connections, plus quick-connect cooler ports, this radiator matches the service needs of late-model GM full-size trucks that do not use the tow package configuration.
This part cross-references APDI 8013396 and Spectra Premium CU13396 for the same application. It is a fitment-based replacement for Chevrolet Silverado 1500 and GMC Sierra 1500 cooling system service, and the TYC Radiator 13396 is listed for 2014-2019 model years in those applications.
What It Helps Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted heat exchange
- Transmission fluid temperature control concerns tied to radiator cooler failure
- Engine oil cooling issues when the original cooler circuit is compromised
- Fitment problems when replacing a radiator on a Silverado 1500 or Sierra 1500 without tow package equipment
Installation Notes and Tips
Verify radiator dimensions, cooler port style, and hose connection type before installation. This radiator uses hose clamp inlet and outlet connections, with quick-connect fittings for the engine oil cooler and transmission oil cooler circuits. Confirm that the vehicle is equipped without the tow package, since fitment is listed specifically for that configuration on 2014-2019 Chevrolet Silverado 1500 and GMC Sierra 1500 models.
Quality Assurance
TYC Radiator products are built as OE-style replacement components for repair and maintenance applications. Part number 13396 is cataloged with confirmed vehicle fitment and matching interchange references for direct application lookup.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Chevrolet | Silverado 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2019 | GMC | Sierra 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2018 | Chevrolet | Silverado 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2018 | GMC | Sierra 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2017 | Chevrolet | Silverado 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2017 | GMC | Sierra 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2016 | Chevrolet | Silverado 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2016 | GMC | Sierra 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2015 | Chevrolet | Silverado 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2015 | GMC | Sierra 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2014 | Chevrolet | Silverado 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2014 | GMC | Sierra 1500 | 4.3L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
