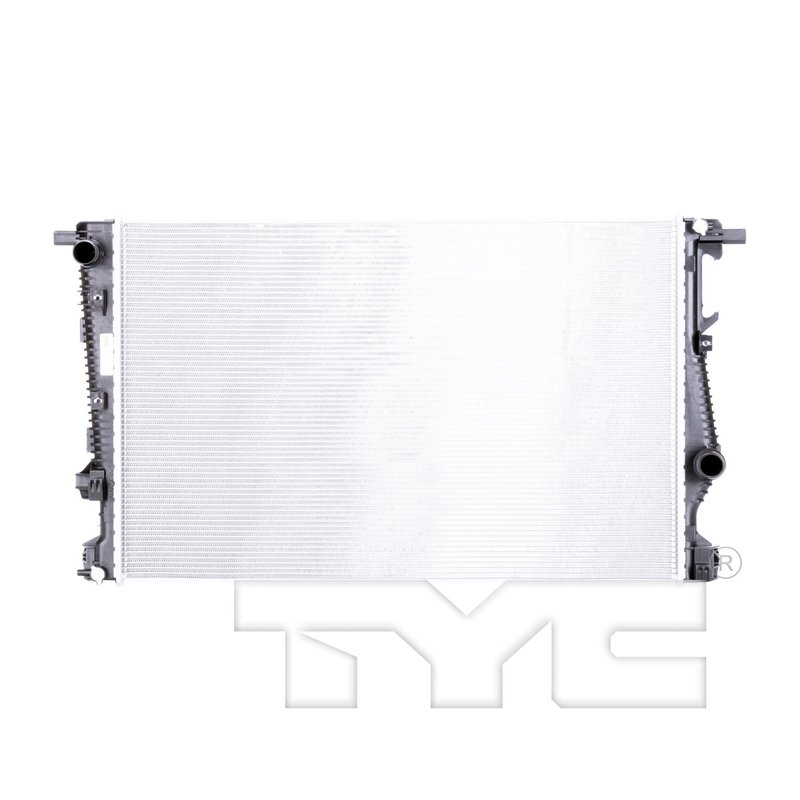

TYC 13400 Radiator
| Brand | TYC 13400 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | No |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.87x17.65 |
| Core Height (in) | 17.09 |
| Core Length (in) | 26.54 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.18 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.18 |
| Top Header | 1.87x17.65 |
| Total Fin Row Count | 67 |
| Total Tube Count | 66 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 16x1.5 |
| Product line | TYC Radiator |
| Fits | Chrysler and Jeep · 5 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Hose clamp connections. Simplifies a secure, straightforward hose attachment.
Cross-references APDI 8013400, Chrysler 68229284AA and Chrysler 68229284AB for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Chrysler 200 and Jeep Cherokee
The TYC Radiator Part Number 13400 is a direct-fit cooling replacement built with an aluminum core and crossflow design. It is engineered for vehicles that need dependable coolant flow and consistent heat transfer, including 2015-2016 Chrysler 200 and 2014 Jeep Cherokee applications with the listed configuration.
Key Features
- Aluminum core construction for efficient heat dissipation
- Crossflow flow configuration for balanced coolant movement
- Single-row design with 0.63 in. core thickness
- Hose clamp inlet and outlet connections, both 1.18 in.
- No engine oil cooler included
- No transmission oil cooler included
- Core dimensions: 26.54 in. length, 17.09 in. height
- TYC Radiator Part Number 13400 for targeted OE-style replacement
Product Details
TYC Radiator 13400 is built around a 26.54 in. x 17.09 in. aluminum core with a 0.63 in. thickness, 66 total tubes, and 67 total fin rows for controlled airflow through the cooling stack. The crossflow layout and hose clamp inlet and outlet connections support straightforward replacement in the specified Chrysler 200 and Jeep Cherokee applications. This part cross-references DENSO 221-9470 for the same application.
Compatible With 2015-2016 Chrysler 200, N/A, and 2014 Jeep Cherokee, N/A, to 06/01/2013; w/ Single Fan. The TYC Radiator Part Number 13400 is also referenced by Chrysler 68229284AA and 68229284AB, along with Partslink CH3010363 and Spectra Premium CU13400.
Common Cooling Issues This Radiator Addresses
- Overheating caused by a leaking or restricted radiator
- Coolant loss from cracked tanks or damaged core passages
- Reduced heat transfer from a corroded or clogged radiator
- Temperature instability during stop-and-go driving
- Cooling system service needs after radiator failure
Installation Notes and Tips
Verify vehicle configuration before installation, especially for the 2014 Jeep Cherokee application, which is listed to 06/01/2013 and with single fan. Confirm inlet and outlet hose size, mounting points, and surrounding cooling components before transfer. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation. Use the vehicle’s service information for bleed procedures and final leak checks.
Quality Assurance
TYC manufactures replacement cooling components for OE-style fitment and application-specific coverage. This radiator is built to match the listed vehicle requirements for Chrysler 200 and Jeep Cherokee cooling system service.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Chrysler | 200 | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2016 | Chrysler | 200 | Automatic | 2.4L | L4 | N/A | TYC Radiator |
| 2015 | Chrysler | 200 | Automatic | 3.6L | V6 | N/A | TYC Radiator |
| 2015 | Chrysler | 200 | Automatic | 2.4L | L4 | N/A | TYC Radiator |
| 2014 | Jeep | Cherokee | Automatic | 2.4L | L4 | N/A | To 06/01/2013; w/ Single Fan; TYC Radiator |
