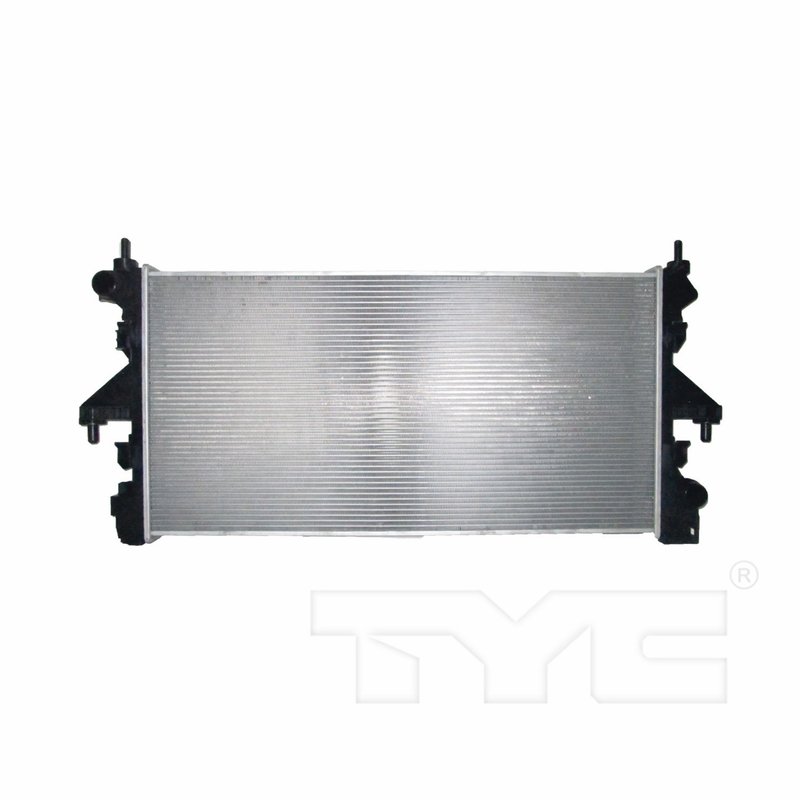

TYC 13448 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 13448 Radiator

Brand TYC 13448
Bottom Header 2.02x16.94
Core Height (in) 15.61
Core Length (in) 30.71
Core Material Aluminum
Core Thickness (in) 1.26
Engine Oil Cooler Included No
Fin Count (every 4") 85
Fin Wave Height (in) 0.25
Find Wave Pitch 2.4
Flow Configuration Crossflow
Inlet Connection Type Quick Connect (Spring Lock)
Inlet Diameter (in) 1.52
No. Of Rows 1
Outlet Connection Type Quick Connect (Spring Lock)
Outlet Diameter (in) 1.52
Top Header 2.02x16.94
Total Fin Row Count 48
Total Tube Count 47
Transmission Oil Cooler Included No
Tube Count (every 4") 12
Tube Width X Height 32x2
Product line TYC Radiator
Fits Ram · 49 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Crossflow design. Supports steady coolant flow through the radiator.

Quick-connect fittings. Spring-lock connections simplify installation and removal.

Cross-references APDI 8013448, Chrysler 68188992AA and Partslink CH3010366 for the same application. See all 4.

$145.76Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $145.76
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator for Ram ProMaster

The TYC Radiator 13448 is a direct-fit cooling replacement for select Ram ProMaster vans with A/C. Built with an aluminum core and crossflow design, it matches the OE-style quick connect spring lock inlet and outlet connections for a clean service replacement.

TYC Radiator line products focus on application-specific cooling fitment and OE-style dimensions. This radiator follows the original layout for Ram ProMaster 1500, 2500, and 3500 models, helping maintain proper coolant flow and heat transfer in daily commercial use.

  • Aluminum core construction
  • Crossflow flow configuration
  • Quick Connect (Spring Lock) inlet and outlet connections
  • 1-row core design
  • No transmission oil cooler included
  • No engine oil cooler included
  • Core dimensions: 15.61 in. height, 30.71 in. length, 1.26 in. thickness
  • OE-style fitment for Ram ProMaster cooling system service

Detailed Product Overview

TYC Radiator 13448 is engineered for Ram ProMaster cooling system replacement where the original radiator has leaked, clogged, or lost efficiency. The aluminum core, 47 total tube count, and 85 fins per 4 inches support heat dissipation in a compact crossflow layout. With 1.52 in. inlet and outlet diameters and spring-lock quick connect fittings, this radiator matches the connection style used on the listed vehicles.

Compatible With 2017-2021 Ram ProMaster 1500, Primary, w/ A/C; 2017-2021 Ram ProMaster 2500, Primary, w/ A/C; 2017-2021 Ram ProMaster 3500, Primary, w/ A/C; 2014-2016 Ram ProMaster 1500; 2014-2016 Ram ProMaster 2500; and 2014-2016 Ram ProMaster 3500. This part number 13448 also cross-references Chrysler 68188992AA for the same application.

Common Cooling System Issues

  • Coolant leaks from a damaged or corroded radiator
  • Overheating caused by restricted coolant flow
  • Reduced cooling performance from a clogged core
  • Cracked or worn quick-connect fittings
  • Temperature instability during stop-and-go driving

Installation Notes

Verify radiator dimensions, inlet and outlet connection style, and vehicle configuration before installation. Drain the cooling system, inspect hoses and spring-lock fittings for wear, and confirm the fan shroud and mounting points align with the original setup. After installation, refill with the correct coolant mixture and bleed air from the system according to factory service procedures.

Quality Assurance

TYC manufactures replacement cooling components with OE-style fitment and application-specific specifications. Part number 13448 is built to match the listed Ram ProMaster applications and cooling system connection requirements.

Related reading

This part fits 49 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeTransmissionLitersCylindersPositionNotes
2021RamProMaster 1500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2021RamProMaster 2500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2021RamProMaster 3500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2020RamProMaster 1500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2020RamProMaster 2500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2020RamProMaster 3500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2019RamProMaster 1500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2019RamProMaster 2500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2019RamProMaster 3500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2018RamProMaster 1500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2018RamProMaster 2500Standard Cargo Van—3.0LL4Primaryw/ A/C; TYC Radiator
2018RamProMaster 3500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2017RamProMaster 1500Standard Cargo Van—3.0LL4Primaryw/ A/C; TYC Radiator
2017RamProMaster 2500Standard Cargo Van—3.6LV6Primaryw/ A/C; TYC Radiator
2017RamProMaster 3500Extended Cargo Van—3.0LL4Primaryw/ A/C; TYC Radiator
2016RamProMaster 1500—Manual3.0LL4N/ATYC Radiator
2016RamProMaster 1500—Manual3.6LV6N/ATYC Radiator
2016RamProMaster 1500—Automatic3.6LV6N/ATYC Radiator
2016RamProMaster 1500—Automatic3.0LL4N/ATYC Radiator
2016RamProMaster 2500—Manual3.0LL4N/ATYC Radiator
2016RamProMaster 2500—Automatic3.0LL4N/ATYC Radiator
2016RamProMaster 2500—Manual3.6LV6N/ATYC Radiator
2016RamProMaster 2500—Automatic3.6LV6N/ATYC Radiator
2016RamProMaster 3500—Automatic3.6LV6N/ATYC Radiator
2016RamProMaster 3500—Automatic3.0LL4N/ATYC Radiator
2016RamProMaster 3500—Manual3.0LL4N/ATYC Radiator
2015RamProMaster 1500—Manual3.6LV6N/ATYC Radiator
2015RamProMaster 1500—Automatic3.6LV6N/ATYC Radiator
2015RamProMaster 1500—Manual3.0LL4N/ATYC Radiator
2015RamProMaster 1500—Automatic3.0LL4N/ATYC Radiator
2015RamProMaster 2500—Automatic3.0LL4N/ATYC Radiator
2015RamProMaster 2500—Manual3.0LL4N/ATYC Radiator
2015RamProMaster 2500—Manual3.6LV6N/ATYC Radiator
2015RamProMaster 2500—Automatic3.6LV6N/ATYC Radiator
2015RamProMaster 3500—Automatic3.0LL4N/ATYC Radiator
2015RamProMaster 3500—Automatic3.6LV6N/ATYC Radiator
2015RamProMaster 3500—Manual3.0LL4N/ATYC Radiator
2014RamProMaster 1500—Automatic3.0LL4N/ATYC Radiator
2014RamProMaster 1500—Manual3.0LL4N/ATYC Radiator
2014RamProMaster 1500—Automatic3.6LV6N/ATYC Radiator
2014RamProMaster 1500—Manual3.6LV6N/ATYC Radiator
2014RamProMaster 2500—Automatic3.0LL4N/ATYC Radiator
2014RamProMaster 2500—Manual3.6LV6N/ATYC Radiator
2014RamProMaster 2500—Manual3.0LL4N/ATYC Radiator
2014RamProMaster 2500—Automatic3.6LV6N/ATYC Radiator
2014RamProMaster 3500—Automatic3.6LV6N/ATYC Radiator
2014RamProMaster 3500—Automatic3.0LL4N/ATYC Radiator
2014RamProMaster 3500—Manual3.0LL4N/ATYC Radiator
2014RamProMaster 3500—Manual3.6LV6N/ATYC Radiator
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8013448Chrysler — 68188992AAPartslink — CH3010366Spectra Premium — CU13448
