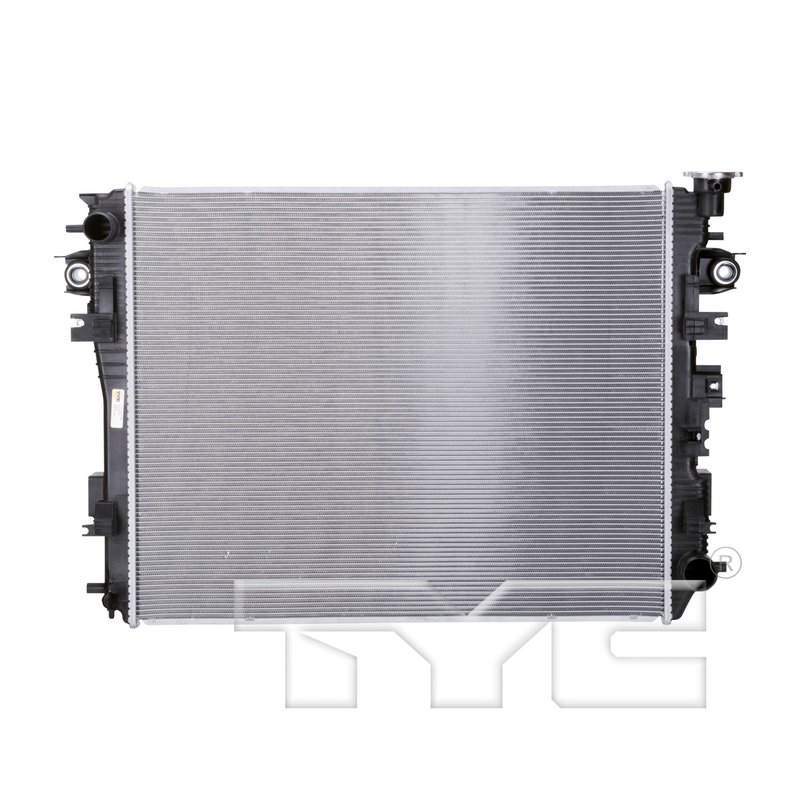

TYC 13494 Radiator - Primary

Reliable Cooling Solution for Ram 2500 and 3500 Trucks

The TYC Radiator part number 13494 is engineered to provide efficient engine cooling for Ram 2500 and 3500 models. Designed with durable aluminum core material, this radiator supports optimal heat dissipation to maintain engine performance under demanding conditions.

• Core material constructed from aluminum for effective heat transfer
• Core dimensions: 22.2 inches height, 27.48 inches length, and 1.02 inches thickness
• Crossflow design for improved coolant flow and heat exchange
• Includes 86 tubes and 87 fin rows for enhanced cooling capacity
• Hose clamp inlet and outlet connections with diameters of 1.52 and 1.81 inches respectively
• Compatible with Ram 2500 and 3500 truck models

TYC Radiator Product Line Overview

The TYC Radiator line focuses on delivering reliable cooling components that meet or exceed OEM specifications. This product line emphasizes quality core materials and precise fitment to ensure compatibility and performance for specific vehicle applications, such as the Ram 2500 and 3500 trucks. The TYC Radiator 13494 exemplifies this approach with its robust aluminum core and engineered flow configuration.

Detailed Radiator Specifications and Features

This radiator features a single-row core with a crossflow configuration, allowing coolant to flow horizontally through the core for efficient heat dissipation. The aluminum core measures 22.2 inches in height, 27.48 inches in length, and 1.02 inches in thickness, providing a substantial surface area for cooling. The core includes 86 tubes arranged in 16 tubes per 4 inches, paired with 87 fin rows and a fin wave height of 0.20 inches to maximize airflow and thermal exchange. Both the top and bottom headers measure 1.87 by 22.97 inches, supporting structural integrity and coolant distribution. Hose clamp inlet and outlet connections with diameters of 1.52 and 1.81 inches ensure secure attachment to the vehicle’s cooling system.

Common Applications and Problem Resolution

• Replacement for damaged or leaking radiators in Ram 2500 and 3500 trucks
• Addresses engine overheating issues caused by inefficient cooling
• Restores proper coolant flow and heat dissipation in aging cooling systems
• Prevents engine damage due to coolant loss or radiator failure
• Supports maintenance of optimal engine operating temperature under heavy load conditions

Installation Notes and Tips

Ensure the radiator is compatible with your specific Ram 2500 or 3500 model before installation. Use appropriate hose clamps for inlet and outlet connections to prevent leaks. Inspect and replace any worn hoses or seals during installation to maintain system integrity. Properly bleed the cooling system after installation to remove air pockets and ensure efficient coolant circulation.

Quality Assurance and Warranty Information

The TYC Radiator 13494 is manufactured to meet industry standards for durability and performance. Constructed with a corrosion-resistant aluminum core, it is designed for long service life. While specific warranty details are not provided, TYC products typically adhere to strict quality control processes to ensure reliability in automotive cooling applications.
