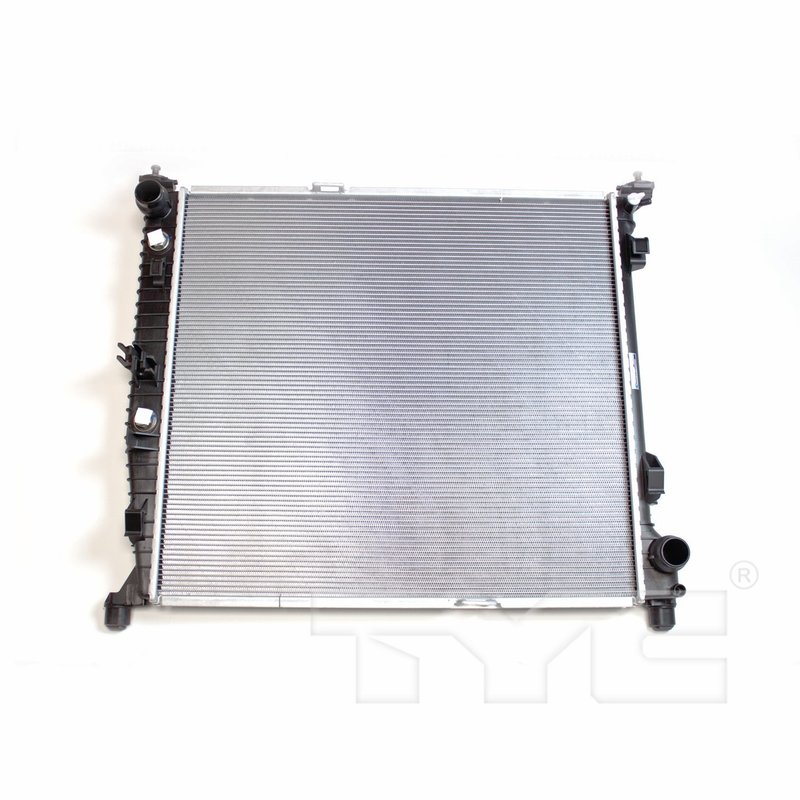

TYC 13505 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 13505 Radiator

Brand TYC 13505
Bottom Header 2.1x22.38
Core Height (in) 21.69
Core Length (in) 23.43
Core Material Aluminum
Core Thickness (in) 1.02
Engine Oil Cooler Included No
Fin Count (every 4") 78
Fin Wave Height (in) 0.20
Find Wave Pitch 2.6
Flow Configuration Crossflow
Inlet Connection Type Quick Connect (Spring Lock)
Inlet Diameter (in) 1.52
No. Of Rows 1
Outlet Connection Type Quick Connect (Spring Lock)
Outlet Diameter (in) 1.52
Toc Distance (in) 10.00
Toc Inlet Diameter (in) 0.37
Toc Inlet Type Quick Connect
Toc Outlet Diameter (in) 0.37
Toc Outlet Type Quick Connect
Top Header 2.1x22.38
Total Fin Row Count 85
Total Tube Count 84
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Plate Oil Cooler
Tube Count (every 4") 16
Tube Width X Height 26x1.5
Product line TYC Radiator
Fits Mercedes-Benz · 36 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Crossflow design. Supports even coolant flow through the radiator core.

Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.

Cross-references APDI 8013505, DENSO 221-9370 and Mercedes-Benz 0995001303 for the same application. See all 5.

$198.88Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $198.88
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator for Mercedes-Benz Cooling Repair

The TYC Radiator Part Number 13505 is a direct-fit cooling system replacement built for select Mercedes-Benz SUVs and diesel models. It features an aluminum core, crossflow design, and an integrated transmission oil cooler to support stable engine and transmission temperatures.

Compatible with Mercedes-Benz GLE400, GLE43 AMG, GLS450, GLE350, GLE550e, GLE300d, GLS350d, GL350, GL450, GLE350d, ML250, ML350, and ML400 applications across the 2012-2019 model years, this radiator is built around OE-style connection points and dimensions for a precise service replacement.

  • TYC Radiator Part Number 13505
  • Aluminum core construction
  • Crossflow flow configuration
  • Integrated transmission oil cooler with plate oil cooler design
  • Quick connect spring lock inlet and outlet connections
  • Single-row core layout
  • OE-style fitment for select Mercedes-Benz GLE, GLS, GL, and ML models

Product Details and Fitment

This radiator uses a 21.69-inch core height, 23.43-inch core length, and 1.02-inch core thickness, with a 1.52-inch inlet and outlet diameter. The transmission oil cooler uses quick connect fittings and a 10.00-inch TOC distance, supporting factory-style routing in vehicles equipped with an automatic transmission cooler circuit. This part cross-references DENSO 221-9370 for the same application.

Fits 2016-2019 Mercedes-Benz GLE400, Primary. Fits 2017-2019 Mercedes-Benz GLE43 AMG, Primary. Fits 2017-2019 Mercedes-Benz GLS450, Primary. Fits 2016-2018 Mercedes-Benz GLE350, Primary. Fits 2016-2018 Mercedes-Benz GLE550e, Primary. Fits 2016-2017 Mercedes-Benz GLE300d, Primary. Fits 2017 Mercedes-Benz GLS350d, Primary. Fits 2016 Mercedes-Benz GLE350d, Primary. Fits 2013-2016 Mercedes-Benz GL350, N/A. Fits 2015-2016 Mercedes-Benz GL450, N/A. Fits 2015 Mercedes-Benz ML250, N/A. Fits 2012-2015 Mercedes-Benz ML350, N/A. Fits 2015 Mercedes-Benz ML400, N/A.

Common Repair Uses

  • Overheating caused by a leaking or restricted radiator
  • Transmission temperature issues tied to a failed cooler circuit
  • Coolant loss from damaged core tubes or header tanks
  • Reduced cooling performance in stop-and-go driving
  • Replacement after corrosion, impact damage, or age-related wear

Installation Notes and Tips

Verify inlet and outlet connection style, cooler line routing, and core dimensions before installation. Inspect hoses, clamps, and coolant condition during service, and confirm the transmission cooler lines seat fully at the quick connect fittings. On Mercedes-Benz GLE, GLS, GL, and ML applications, matching the OE-style configuration helps reduce installation issues and supports proper cooling system operation.

Quality Assurance

TYC Radiator components are built to meet replacement needs for service technicians and DIY repairs, with attention to OE-style dimensions and connection types. Part Number 13505 is listed with interchange references including APDI 8013505, Mercedes-Benz 0995001303, Partslink MB3010173, and Spectra Premium CU13505.

Related reading

This part fits 36 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeLitersCylindersFuel TypePositionNotes
2019Mercedes-BenzGLE4004MaticSport Utility3.0LV6—PrimaryTYC Radiator
2019Mercedes-BenzGLE43 AMG4MaticSport Utility3.0LV6—PrimaryTYC Radiator
2019Mercedes-BenzGLS4504MaticSport Utility3.0LV6—PrimaryTYC Radiator
2018Mercedes-BenzGLE350BaseSport Utility3.5LV6—PrimaryTYC Radiator
2018Mercedes-BenzGLE4004MaticSport Utility3.0LV6—PrimaryTYC Radiator
2018Mercedes-BenzGLE43 AMG4MaticSport Utility3.0LV6—PrimaryTYC Radiator
2018Mercedes-BenzGLE550e4MaticSport Utility3.0LV6—PrimaryTYC Radiator
2018Mercedes-BenzGLS4504MaticSport Utility3.0LV6—PrimaryTYC Radiator
2017Mercedes-BenzGLE300d4MaticSport Utility2.1LL4—PrimaryTYC Radiator
2017Mercedes-BenzGLE350BaseSport Utility3.5LV6—PrimaryTYC Radiator
2017Mercedes-BenzGLE4004MaticSport Utility3.0LV6—PrimaryTYC Radiator
2017Mercedes-BenzGLE43 AMG4MaticSport Utility3.0LV6—PrimaryTYC Radiator
2017Mercedes-BenzGLE550e4MaticSport Utility3.0LV6—PrimaryTYC Radiator
2017Mercedes-BenzGLS350d4MaticSport Utility3.0LV6—PrimaryTYC Radiator
2017Mercedes-BenzGLS4504MaticSport Utility3.0LV6—PrimaryTYC Radiator
2016Mercedes-BenzGL350——3.0LV6DIESELN/ATYC Radiator
2016Mercedes-BenzGL450—————N/ATYC Radiator
2016Mercedes-BenzGLE300d4MaticSport Utility2.1LL4—PrimaryTYC Radiator
2016Mercedes-BenzGLE3504MaticSport Utility3.5LV6—PrimaryTYC Radiator
2016Mercedes-BenzGLE350d4MaticSport Utility3.0LV6—PrimaryTYC Radiator
2016Mercedes-BenzGLE4004MaticSport Utility3.0LV6—PrimaryTYC Radiator
2016Mercedes-BenzGLE550e4MaticSport Utility3.0LV6—PrimaryTYC Radiator
2015Mercedes-BenzGL350——3.0LV6DIESELN/ATYC Radiator
2015Mercedes-BenzGL450—————N/ATYC Radiator
2015Mercedes-BenzML250——2.1LL4—N/ATYC Radiator
2015Mercedes-BenzML350——3.0LV6—N/ATYC Radiator
2015Mercedes-BenzML350——3.5LV6—N/ATYC Radiator
2015Mercedes-BenzML400——3.0LV6—N/ATYC Radiator
2014Mercedes-BenzGL350——3.0LV6DIESELN/ATYC Radiator
2014Mercedes-BenzML350——3.0LV6—N/ATYC Radiator
2014Mercedes-BenzML350——3.5LV6—N/ATYC Radiator
2013Mercedes-BenzGL350——3.0LV6DIESELN/ATYC Radiator
2013Mercedes-BenzML350——3.5LV6—N/ATYC Radiator
2013Mercedes-BenzML350——3.0LV6—N/ATYC Radiator
2012Mercedes-BenzML350——3.5LV6—N/ATYC Radiator
2012Mercedes-BenzML350——3.0LV6—N/ATYC Radiator
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8013505DENSO — 221-9370Mercedes-Benz — 0995001303Partslink — MB3010173Spectra Premium — CU13505
