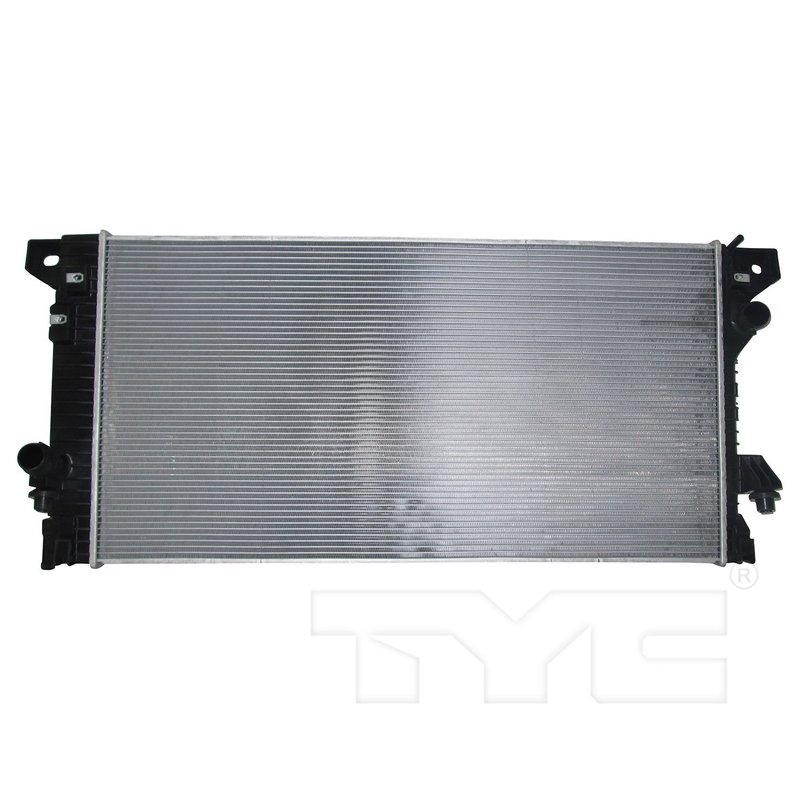

TYC 13510 Radiator

Overview of the TYC Radiator 13510 for Ford F-150 and Lincoln Navigator

The TYC Radiator 13510 is engineered to provide reliable cooling performance for Ford F-150 and Lincoln Navigator models. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from durable aluminum
• Includes a plate-type transmission oil cooler
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 17.89 inches height, 34.65 inches length, 1.02 inches thickness
• Inlet and outlet connections designed for hose clamp and quick connect (spring lock) fittings
• Compatible with Ford F-150 and Lincoln Navigator vehicles
• Part number 13510 for precise identification

Detailed Features of the TYC Radiator 13510

This radiator features a single-row core with 54 tubes and 55 total fin rows, providing effective heat dissipation. The fin count of 92 every 4 inches and fin wave height of 0.25 inches contribute to enhanced airflow and cooling efficiency. The crossflow design allows coolant to move horizontally through the core, improving heat exchange. The bottom header measures 2.72 by 18.86 inches, while the top header is 1.79 by 18.83 inches, ensuring a proper fit within the cooling system. The inlet diameter is 1.48 inches with a hose clamp connection, and the outlet diameter is 1.52 inches with a quick connect spring lock fitting, facilitating secure hose attachment. Additionally, the radiator includes a plate-type transmission oil cooler with 0.5-inch tube fittings for both inlet and outlet, supporting transmission fluid temperature regulation.

About the TYC Radiator Product Line

The TYC Radiator line focuses on delivering reliable cooling components designed to meet or exceed OEM specifications. Radiators in this line, including part number 13510, are built with quality materials such as aluminum cores and incorporate features like integrated transmission oil coolers to support vehicle performance and longevity. This product line is tailored for specific vehicle applications, ensuring compatibility and efficient cooling system operation.

Common Applications and Problem Resolution

• Replaces faulty or leaking radiators in Ford F-150 and Lincoln Navigator models
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission fluid overheating with integrated plate oil cooler
• Fixes coolant leaks due to damaged or corroded radiator cores
• Improves overall engine cooling system reliability and performance

Installation Notes and Tips

Ensure the radiator core dimensions and connection types match the vehicle specifications before installation. The inlet uses a hose clamp connection, while the outlet requires a quick connect spring lock fitting. Properly secure all hose connections to prevent leaks. When replacing the radiator, inspect the cooling system for any additional worn components such as hoses or clamps. Bleed the cooling system after installation to remove air pockets and verify proper coolant flow.

Quality Assurance and Warranty

TYC Radiator products are manufactured to meet industry standards for durability and performance. The aluminum core construction provides corrosion resistance and long service life. While specific warranty details are not provided here, TYC typically offers coverage against manufacturing defects. Refer to the product documentation or manufacturer for exact warranty terms related to part number 13510.
