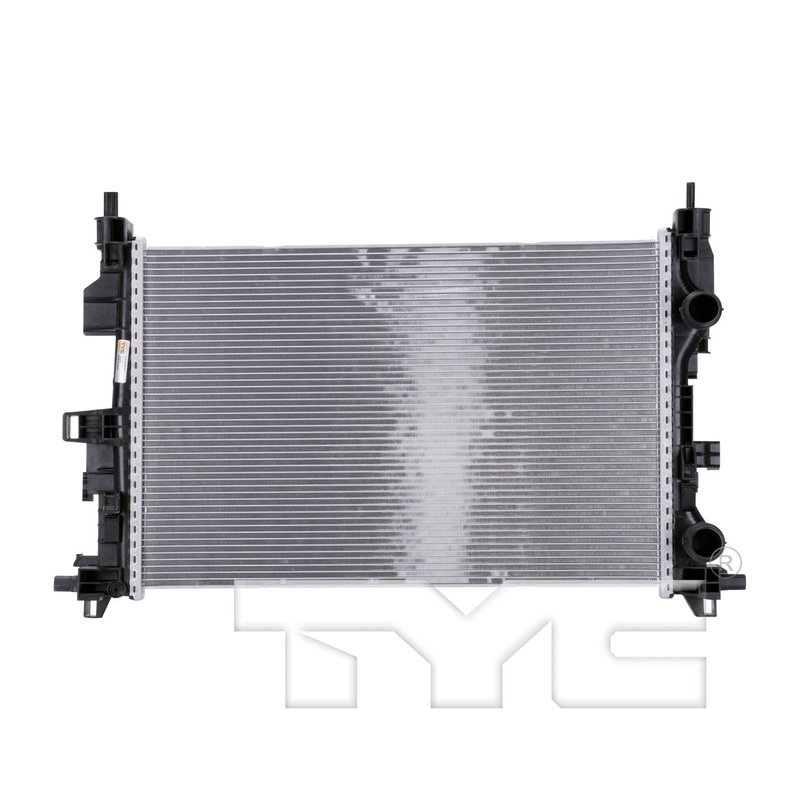

TYC 13533 Radiator - Primary

Reliable Cooling Solution for Fiat, Jeep, and Ram Vehicles

The TYC Radiator 13533 is engineered to provide efficient engine cooling for select Fiat, Jeep, and Ram models. Designed with durable aluminum core material and precise dimensions, this radiator supports optimal heat dissipation to maintain engine performance and prevent overheating.

• Core Material: Aluminum for effective heat transfer
• Core Dimensions: 15.6" height x 23.74" length x 1.02" thickness
• Crossflow design with 1 row and 50 tubes for balanced coolant flow
• Quick connect (spring lock) inlet and outlet connections, each 1.52" diameter
• Fin Count: 107 fins per 4 inches with 0.25" fin wave height for enhanced airflow
• Compatible with Fiat 500X, Jeep Renegade, and Ram ProMaster City

TYC Radiator Product Line Overview

The TYC Radiator line focuses on delivering reliable cooling components that meet or exceed OEM specifications. This product line emphasizes quality core materials and precise manufacturing tolerances to ensure proper fitment and long-term durability. The TYC Radiator 13533 exemplifies these standards with its aluminum core and crossflow configuration, tailored for specific vehicle applications.

Detailed Product Description

This radiator features a single-row core with 50 tubes arranged in a crossflow pattern, promoting efficient coolant circulation and heat exchange. The aluminum core material enhances thermal conductivity while reducing weight. The fin design includes 107 fins every 4 inches with a 0.25-inch wave height and 1.9-inch pitch, optimizing airflow through the radiator. Both the inlet and outlet utilize quick connect spring lock fittings with a 1.52-inch diameter, facilitating secure and straightforward hose connections. The top and bottom headers measure 1.77 by 16.94 inches, providing structural support and coolant distribution.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators in Fiat 500X models
• Cooling system upgrade for Jeep Renegade experiencing overheating
• Restores proper coolant flow in Ram ProMaster City with radiator failure
• Resolves coolant leaks due to corroded or cracked radiator cores
• Improves engine temperature regulation for vehicles with worn radiators

Installation Notes and Tips

Ensure the cooling system is fully drained before removing the old radiator. Verify that the quick connect spring lock fittings on the inlet and outlet hoses are compatible and securely attached to prevent leaks. Inspect all hose connections and clamps during installation. It is recommended to replace coolant and bleed the system after installation to avoid air pockets and ensure optimal cooling performance.

Quality Assurance and Warranty

The TYC Radiator 13533 is manufactured to meet strict quality standards, using corrosion-resistant aluminum core material and precision construction. While specific warranty details are not provided, TYC products typically adhere to industry quality controls to ensure reliable performance and fitment for Fiat 500X, Jeep Renegade, and Ram ProMaster City vehicles.
