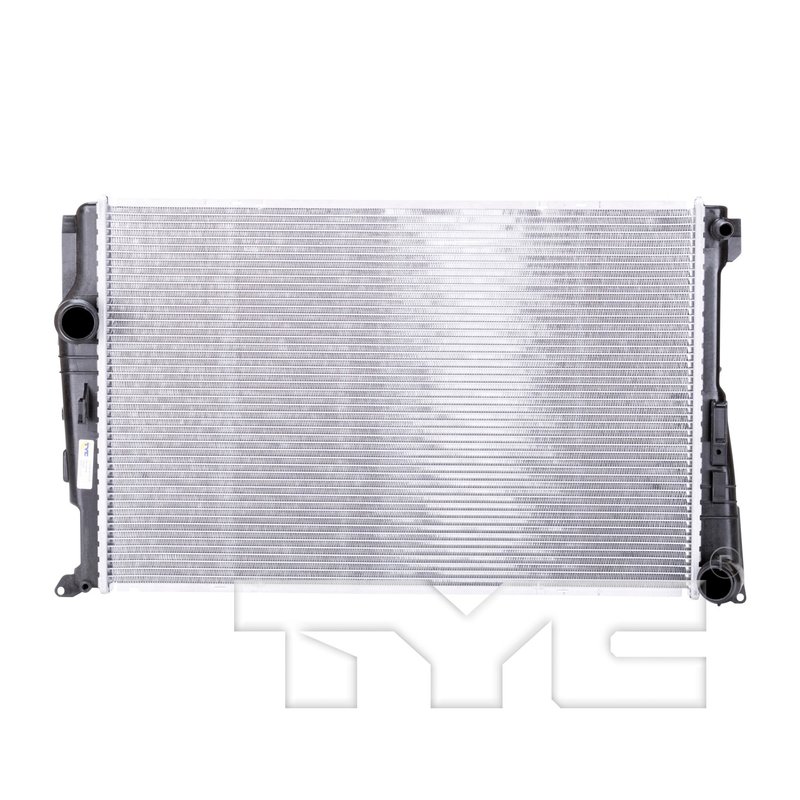

TYC 13534 Radiator - Primary

Overview of TYC Radiator 13534 for BMW X3 and X4

The TYC Radiator 13534 is designed specifically for BMW X3 and X4 models, providing reliable engine cooling performance. Constructed with an aluminum core, this radiator ensures efficient heat dissipation to maintain optimal engine temperature under various driving conditions.

• Core Material: Durable aluminum for effective heat transfer
• Core Dimensions: 15.3 inches height, 23.58 inches length, 1.26 inches thickness
• Flow Configuration: Crossflow design for improved coolant circulation
• Connection Types: Quick connect (spring lock) inlet and outlet with 1.52-inch diameter
• Fin and Tube Details: 85 fins per 4 inches, 50 total fin rows, 49 total tubes
• Headers: Top and bottom headers sized 2.1 x 16.08 inches
• Single-row tube construction for balanced cooling efficiency

Detailed Features and Specifications

This TYC Radiator 13534 features a robust aluminum core that enhances thermal conductivity while reducing weight. The crossflow flow configuration optimizes coolant movement across the core, supporting consistent engine temperature regulation. With 85 fins every 4 inches and a total of 50 fin rows, the radiator maximizes surface area for heat exchange. The fin wave height of 0.25 inches and a wave pitch of 2.4 contribute to efficient airflow and cooling performance.

Both the inlet and outlet connections utilize quick connect spring lock fittings with a 1.52-inch diameter, facilitating secure and straightforward hose attachment. The radiator’s core thickness of 1.26 inches and single-row tube design (49 tubes total) balance cooling capacity with compact size, suitable for the engine bay of BMW X3 and X4 vehicles.

About the TYC Radiator Product Line

The TYC Radiator line is engineered to meet OEM specifications, focusing on durability and thermal efficiency. This product line emphasizes quality core materials and precise fitment to ensure compatibility and reliable performance. The TYC Radiator 13534 exemplifies these standards, offering a direct replacement solution for BMW X3 and X4 cooling systems.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in BMW X3 and X4
• Solves overheating issues caused by inefficient heat dissipation
• Addresses coolant flow restrictions due to clogged or corroded cores
• Restores proper engine temperature regulation for improved performance
• Prevents engine damage related to cooling system failure

Installation Notes and Tips

Ensure the cooling system is fully drained before removing the old radiator. Verify that the quick connect spring lock fittings on the inlet and outlet hoses are clean and free of debris to ensure a secure connection. Properly align the radiator headers and core to avoid stress on mounting points. After installation, refill the cooling system with the recommended coolant and bleed air pockets to prevent overheating.

Quality Assurance and Warranty

The TYC Radiator 13534 is manufactured to meet strict quality control standards, ensuring consistent performance and durability. While specific warranty details are not provided, TYC products typically adhere to industry standards for replacement automotive radiators, offering reliable service life when installed and maintained correctly.
