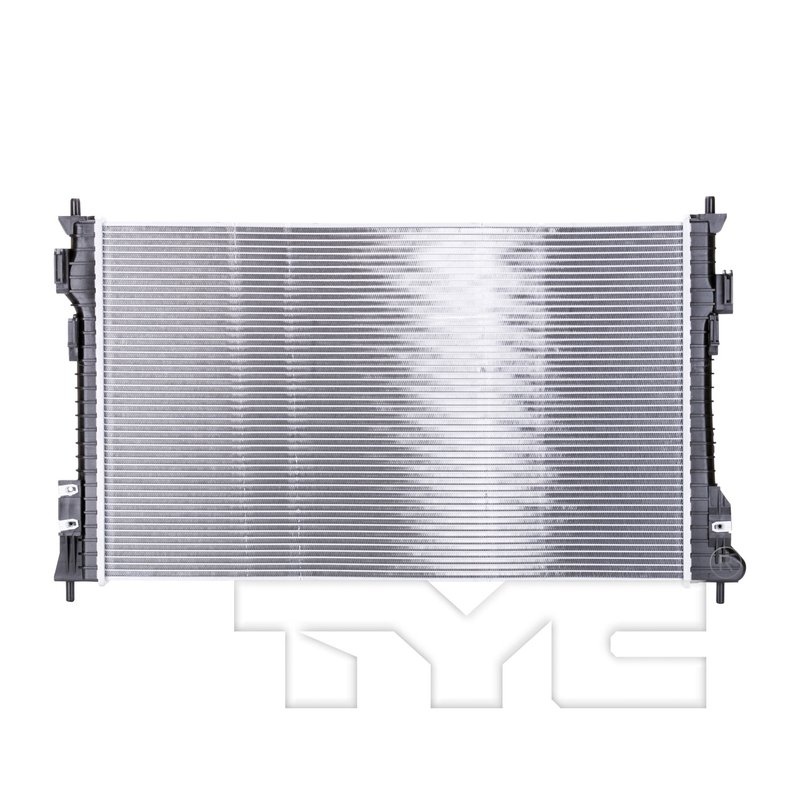

TYC 13560 Radiator
| Brand | TYC 13560 |
|---|---|
| Bottom Header | 18-3/8" x 1-7/8" |
| Core Height (in) | 28.75 |
| Core Length (in) | 17.44 |
| Core Size | 28-3/4" x 17-7/16" x 1-1/4" |
| Core Thickness (in) | 1.25 |
| Inlet Size | 1-1/2" |
| Manufactured Material | PLASTIC/ALUMINUM |
| Outlet Size | 1-1/2" |
| Rows | 1 |
| Top Header | 18-3/8" x 1-7/8" |
| Product line | TYC Radiator |
| Fits | Ford |
Direct replacement. Radiator built for straightforward installation and dependable cooling performance.
Plastic/aluminum construction. Balances lightweight design with efficient heat transfer.
Single-row core. Helps promote steady coolant flow through the radiator.
Cross-references Ford DB5Z 8005 EA, Partslink FO3010324 and Spectra Premium CU13308 for the same application. See all 3.
Radiator Replacement for OE Cooling Performance
TYC Radiator 13560 is a direct-fit radiator built with a plastic/aluminum construction and a single-row core for efficient engine cooling. With a core size of 28-3/4" x 17-7/16" x 1-1/4", this radiator is sized for applications that require the listed inlet and outlet dimensions and header measurements.
Key Features
- TYC Radiator 13560 replacement radiator for OE-style cooling system service
- Plastic/aluminum construction for a lightweight, corrosion-resistant design
- Single-row core with 28.75 in. core height and 17.44 in. core length
- Core thickness of 1.25 in. for the specified application
- 1-1/2 in. inlet and 1-1/2 in. outlet sizes
- Top and bottom header dimensions: 18-3/8" x 1-7/8"
Product Details
This TYC Radiator is engineered around the listed dimensions to match the cooling system layout used in select Ford applications. The radiator core measures 28-3/4" x 17-7/16" x 1-1/4", with a 1-row design and 1-1/2" inlet and outlet connections. For buyers searching for a Ford radiator replacement, Ford DB5Z 8005 EA, or Partslink FO3010324, this part number provides a focused OE-style solution. It also cross-references Spectra Premium CU13308 for the same application.
As part of the TYC Radiator line, this unit follows the brand’s cooling-system replacement focus with application-specific sizing and material selection. TYC 13560 is a practical choice when the original radiator needs to be replaced with a unit that matches the vehicle’s cooling connection points and core dimensions.
What It Helps Address
- Overheating caused by a leaking or restricted radiator
- Coolant loss from damaged tanks or core deterioration
- Reduced cooling efficiency from a worn OE radiator
- Fitment issues when replacing a radiator with incorrect inlet or outlet sizing
- Cooling system service on select Ford models requiring this radiator configuration
Installation Notes and Tips
Verify core dimensions, header size, and inlet/outlet diameter before installation. Confirm that the replacement radiator matches the vehicle’s original mounting layout and hose connection points. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant specification after installation. For Ford radiator replacement searches, confirm the OE reference DB5Z 8005 EA or Partslink FO3010324 before ordering.
Quality Assurance
TYC manufactures replacement cooling components with application-specific dimensions and materials to support OE-style fitment. This radiator is identified by part number 13560 and is built to match the listed specifications for the intended Ford application.
