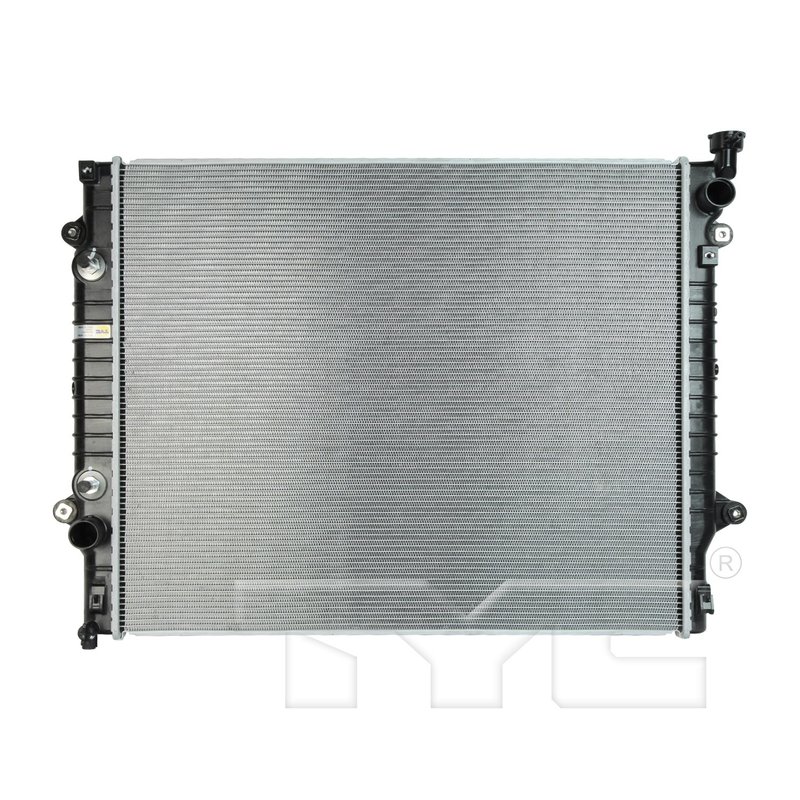

TYC 13565 Radiator - Primary

Overview of the TYC Radiator for Toyota Tacoma

The TYC Radiator part number 13565 is designed specifically for Toyota Tacoma models, providing reliable cooling performance. This radiator features an aluminum core and includes a transmission oil cooler to support efficient engine operation.

• Core material constructed from durable aluminum
• Includes a plate-type transmission oil cooler
• Core dimensions: 21.44 inches height, 25.55 inches length, 1.02 inches thickness
• Crossflow design with 1 row of tubes and 68 fins per 4 inches
• Hose clamp inlet and outlet connections with 1.36-inch diameter
• Top and bottom headers sized 2.04 x 22.1 inches
• Transmission oil cooler inlet and outlet use 0.39-inch tube fittings

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. This radiator model 13565 integrates a plate oil cooler for transmission fluid, enhancing heat dissipation and maintaining optimal operating temperatures for Toyota Tacoma vehicles. The aluminum core construction supports efficient heat transfer and corrosion resistance.

Technical Description and Features

This radiator features a crossflow flow configuration, which promotes effective coolant circulation across the core. The single-row tube design with 83 tubes and 84 total fin rows ensures consistent heat exchange. The fin wave height of 0.20 inches and fin pitch of 3 contribute to improved airflow and cooling efficiency. Both inlet and outlet connections utilize hose clamps with a 1.36-inch diameter, facilitating secure hose attachment. The integrated transmission oil cooler uses plate-type construction with tube fittings sized at 0.39 inches for inlet and outlet, supporting transmission fluid cooling without the need for a separate cooler.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiators in Toyota Tacoma vehicles
• Addresses overheating issues caused by inefficient cooling systems
• Supports transmission cooling to prevent fluid overheating and transmission damage
• Restores proper coolant flow and heat dissipation in aging or corroded radiators
• Improves engine temperature regulation for consistent vehicle performance

Installation Notes and Tips

Ensure compatibility with your specific Toyota Tacoma model year before installation. The radiator uses hose clamp connections for both inlet and outlet hoses, so verify hose condition and replace clamps if necessary. Properly secure the transmission oil cooler tube fittings to avoid leaks. Bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow.

Quality Assurance and Warranty

TYC Radiator part number 13565 is manufactured to meet OEM standards for fit, form, and function. The aluminum core construction offers corrosion resistance and durability. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliable performance in Toyota Tacoma vehicles.
